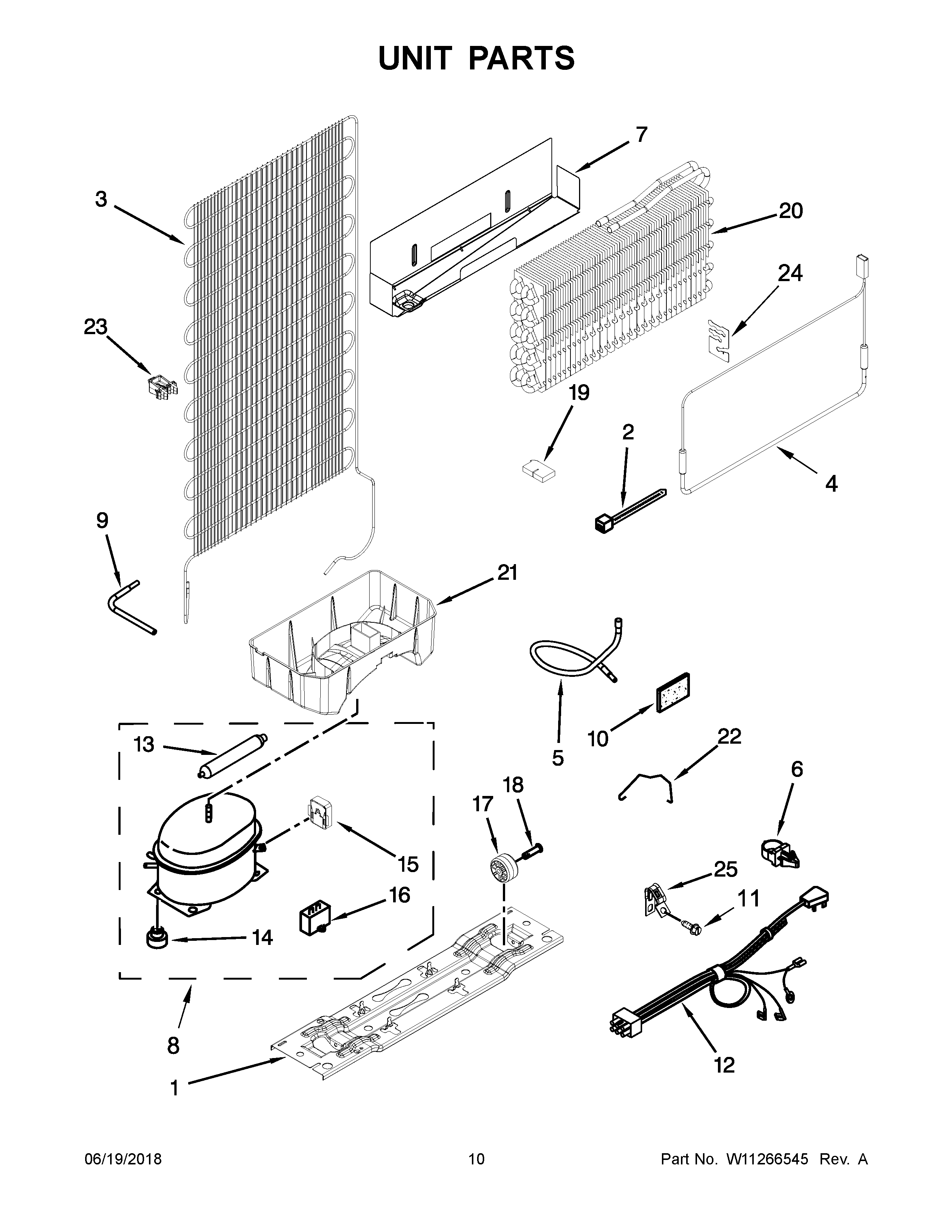

WRT111SFDB04 06 – UNIT PARTS

Products

Position	Product
NI	VALVE, ACCESS (5/8“)
NI	876764 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978030 Whirlpool Refrigerator Valve
NI	WP978025 Whirlpool Refrigerator Valve
NI	CABINET (NOT A SERVICEABLE PART)
1	W10378704 Whirlpool Refrigerator Support
2	WPW10339879 Whirlpool Wire Tie
3	W10439364 Whirlpool Refrigerator Condenser
4	W11193825 Whirlpool Refrigerator Heater
5	W10679680 Whirlpool Refrigerator Tube
6	2219077 Whirlpool Refrigerator Clip
7	SHIELD, HEAT
8	WPW10507886 Whirlpool Refrigerator Compressor
9	W11661102 Whirlpool Tube
10	W11553819 Whirlpool Refrigerator Insulation
11	WP489442 Whirlpool Refrigerator Screw
12	W10659093 Whirlpool Refrigerator Wire Harness
13	W10843121 Whirlpool Refrigerator Tube
14	WPW10169124 Whirlpool Refrigerator Grommet
15	START-DEV
16	WPW10662129 Whirlpool Refrigerator Run Capacitor
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
19	W10261299 Whirlpool Evaporator Support
20	W11122867 Whirlpool Refrigerator Evaporator
21	W11035419 Whirlpool Refrigerator Evaporator Tray
22	W11661170 Whirlpool Clip
23	WP326020544 Whirlpool Refrigerator Support
24	W10286974 Whirlpool Bracket
25	549193 Whirlpool Refrigerator Power Clamp
