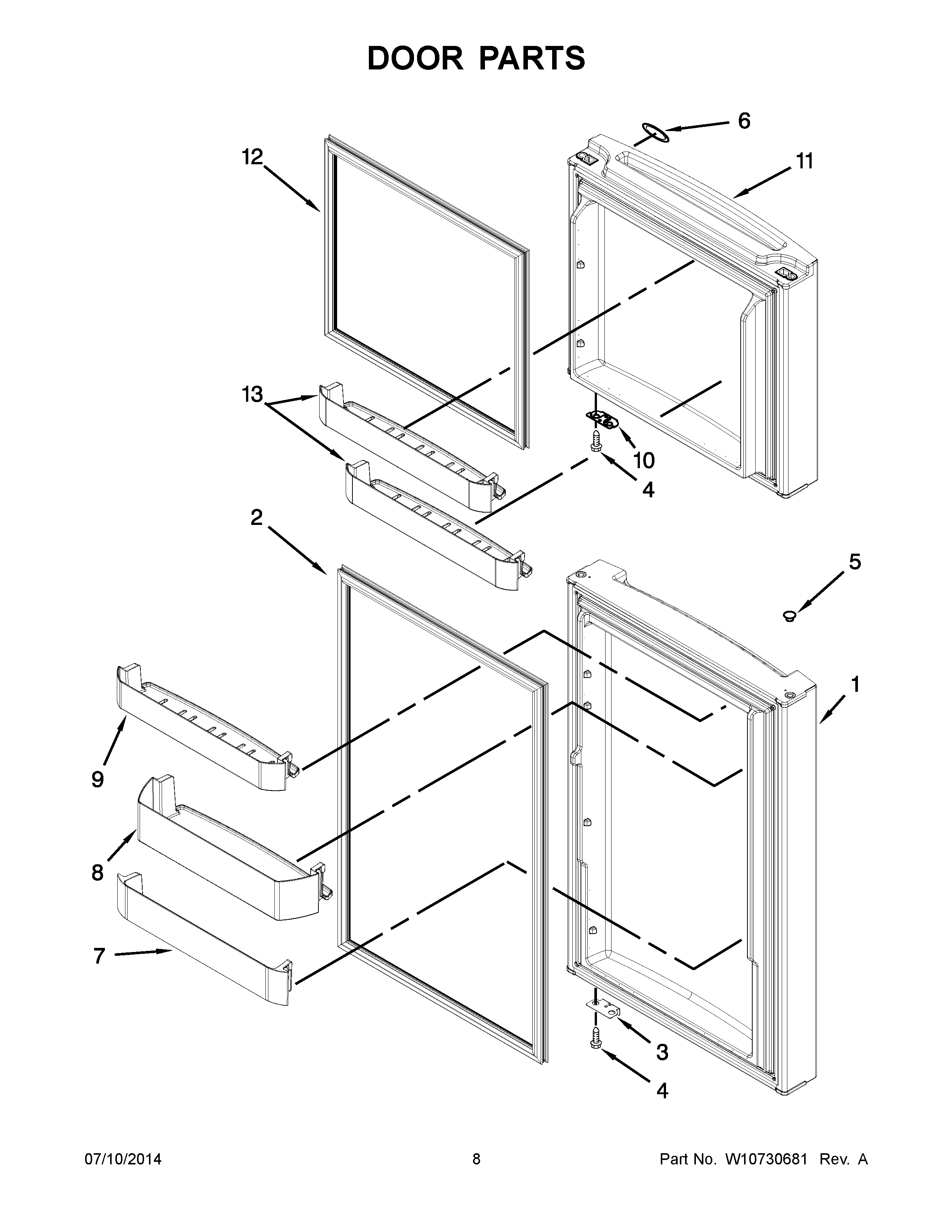

WRT111SFDM00 05 – DOOR PARTS

WRT111SFDM00 05 – DOOR PARTS

Written by

in

WRT111SFDM00 05 – DOOR PARTS

Products

PositionProduct
1ADOOR, REFRIGERATOR (INCLUDES ITEMS 2, 3, 5 & MOLDED HANDLE) (BLACK)
1DOOR, REFRIGERATOR (INCLUDES ITEMS 2, 3, 5 & MOLDED HANDLE) (WHITE)
1BDOOR, REFRIGERATOR (INCLUDES ITEMS 2, 3, 5 & MOLDED HANDLE) (STAINLESS)
2BW11625055 Whirlpool Refrigerator FIP Gasket
2AW11625052 Whirlpool Refrigerator FIP Gasket
2W11228130 Whirlpool Refrigerator FIP Gasket
3W10492012 Whirlpool Refrigerator Bracket
4WP681249 Whirlpool Screw Assembly
5WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
5AWP2212651 Whirlpool Refrigerator Button Plug
5BPLUG, HINGE SLEEVE (GREY)
6AW11178521 Whirlpool Dishwasher Nameplate
7W11199415 Whirlpool Refrigerator Trivet
8WPW10489075 Whirlpool Door Shelf Bin
9WPW10364007 Whirlpool Door Shelf Bin
10W11745278 Whirlpool Bracket
11BLW10751123 Whirlpool Refrigerator Door FIP
11DOOR, FREEZER (INCLUDES ITEMS 10, 12 & MOLDED HANDLE) (WHITE)
11ADOOR, FREEZER (INCLUDES ITEMS 10, 12 & MOLDED HANDLE) (BLACK)
12BW11625051 Whirlpool Refrigerator FIP Gasket
12AW11625037 Whirlpool Refrigerator FIP Gasket
12W11625036 Whirlpool Refrigerator FIP Gasket
13WPW10370890 Whirlpool Refrigerator Cantilever Bin
