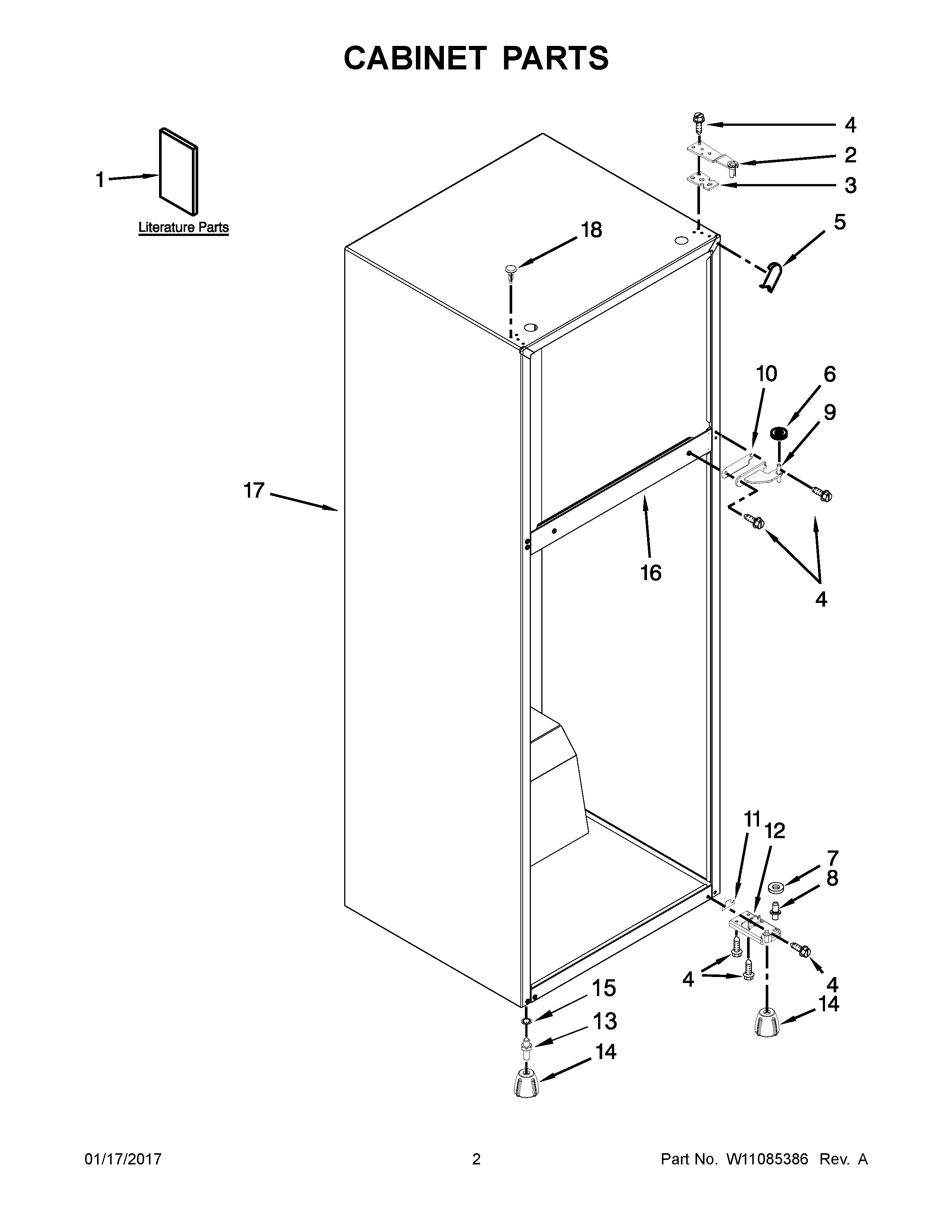

WRT111SFDM03 02 – CABINET PARTS

Products

Position	Product
1B	ENERGY GUIDE
1A	USE AND CARE GUIDE
1	SERVICE AND WIRING SHEET
2	ASSEMBLY, TOP HINGE
3	W10399311 Whirlpool Refrigerator Hinge Shim
4	WP489497 Whirlpool Screw
5B	W10439615 Whirlpool Refrigerator Filler
5A	W10447119 Whirlpool Refrigerator Filler
5	W10429302 Whirlpool Refrigerator Filler
6	WP487576 Whirlpool Washer
7	WP489467 Whirlpool Hinge Shim
8	WP2325483 Whirlpool Hinge Pin
9	W10492014 Whirlpool Refrigerator Door Hinge
10	W11269182 Whirlpool Refrigerator Hinge Shim
11	W10399313 Whirlpool Refrigerator Hinge Shim
12	W10837711 Whirlpool Refrigerator Door Hinge
13	SCREW, LEVELER
14	WPW10340017 Whirlpool Refrigerator Leveler
15	WASHER, METALLIC
17	CABINET (NOT A SERVICEABLE PART)
18	WPW10520304 Whirlpool Refrigerator Button Plug
18B	WPW10520307 Whirlpool Refrigerator Replacement Plug Button
18A	WPW10520305 Whirlpool Refrigerator Button Plug
