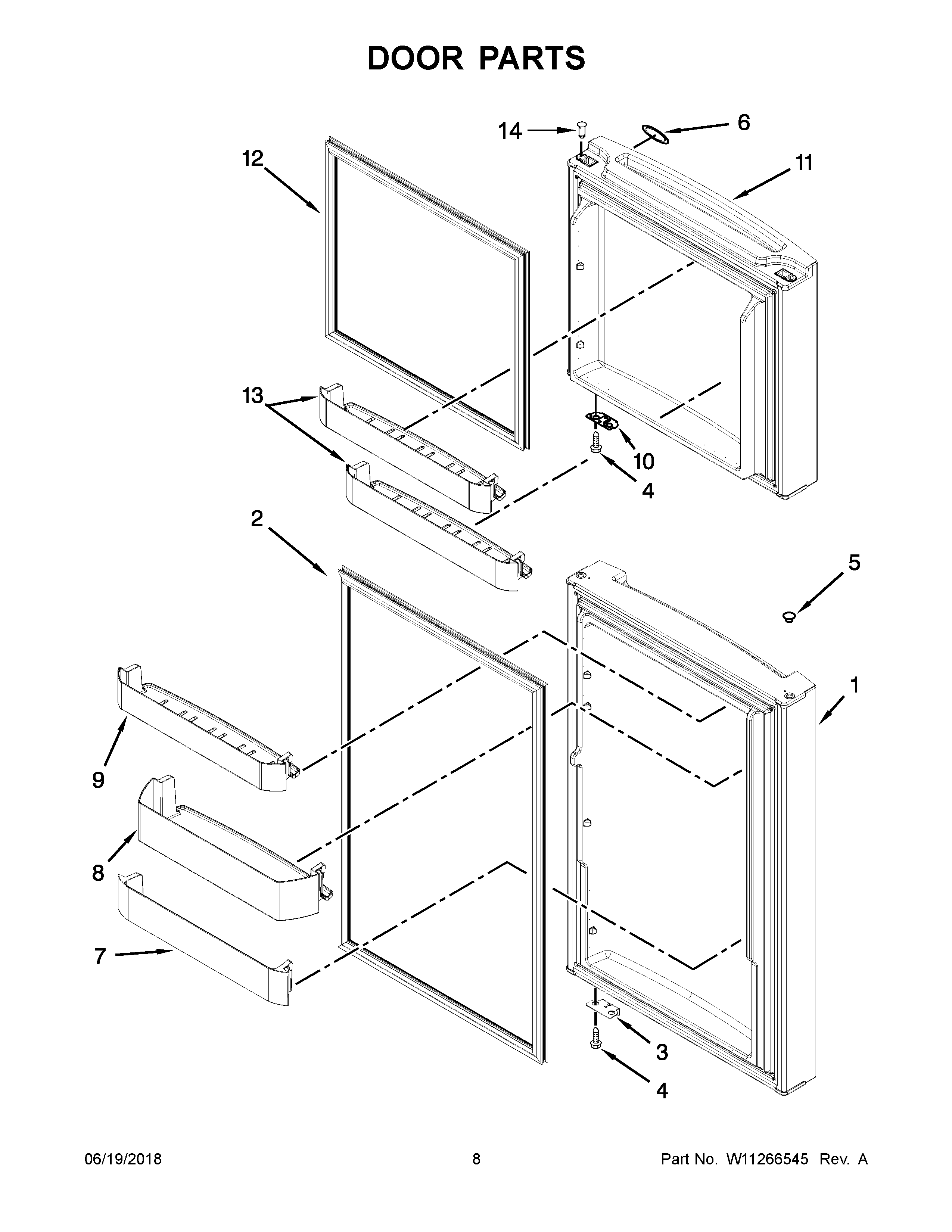

WRT111SFDM04 05 – DOOR PARTSadmin2025-04-26T11:09:02+00:00WRT111SFDM04 05 – DOOR PARTS
Products
| Position | Product |
|---|
| 1 | DOOR, REFRIGERATOR (INCLUDES ITEMS 2, 3, 5 & MOLDED HANDLE) (WHITE) |
| 1A | DOOR, REFRIGERATOR (INCLUDES ITEMS 2, 3, 5 & MOLDED HANDLE) (BLACK) |
| 1B | DOOR, REFRIGERATOR (INCLUDES ITEMS 2, 3, 5 & MOLDED HANDLE) (STAINLESS) |
| 2B | W11625055 Whirlpool Refrigerator FIP Gasket |
| 2A | W11625052 Whirlpool Refrigerator FIP Gasket |
| 2 | W11228130 Whirlpool Refrigerator FIP Gasket |
| 3 | W10492012 Whirlpool Refrigerator Bracket |
| 4 | WP681249 Whirlpool Screw Assembly |
| 5B | PLUG, HINGE SLEEVE (GREY) |
| 5A | WP2212651 Whirlpool Refrigerator Button Plug |
| 5 | WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug |
| 6 | W11178521 Whirlpool Dishwasher Nameplate |
| 7 | W11199415 Whirlpool Refrigerator Trivet |
| 8 | W11179386 Whirlpool Refrigerator Cantilever Bin |
| 9 | WPW10364007 Whirlpool Door Shelf Bin |
| 10 | W11745278 Whirlpool Bracket |
| 11B | LW10751123 Whirlpool Refrigerator Door FIP |
| 11 | DOOR, FREEZER (INCL. ITEMS 10, 12 & MOLDED HANDLE) (WHITE) |
| 11A | DOOR, FREEZER (INCL. ITEMS 10, 12 & MOLDED HANDLE) (BLACK) |
| 12B | W11625051 Whirlpool Refrigerator FIP Gasket |
| 12A | W11625037 Whirlpool Refrigerator FIP Gasket |
| 12 | W11625036 Whirlpool Refrigerator FIP Gasket |
| 13 | WPW10370890 Whirlpool Refrigerator Cantilever Bin |
| 14B | W11676573 Whirlpool Thimble |
| 14 | THIMBLE |
| 14A | W11189115 Whirlpool Refrigerator Thimble |
