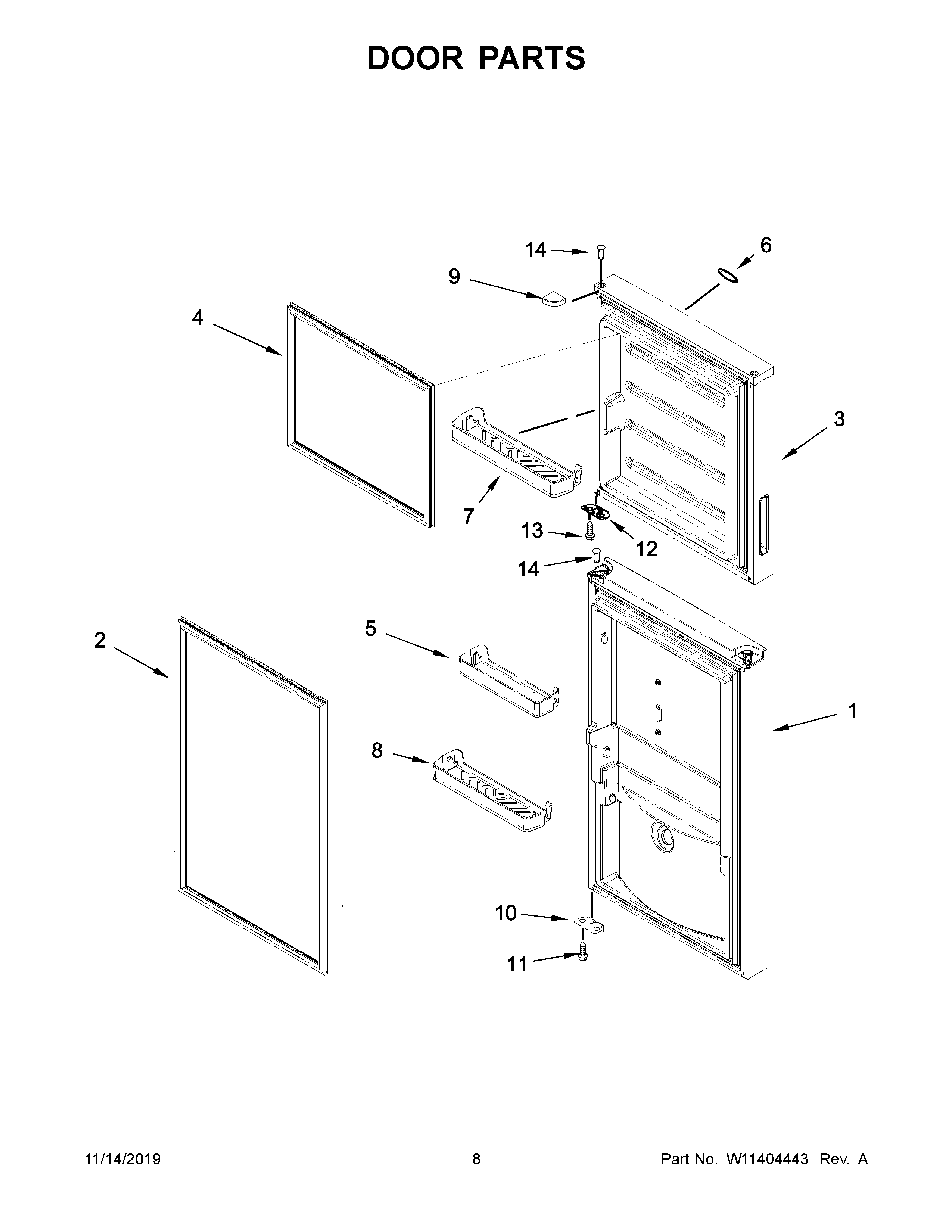

WRT112CZJB00 05 – DOOR PARTS

Products

PositionProduct
1AW11374240 Whirlpool Refrigerator Door Assembly
1BW11374241 Whirlpool Refrigerator Door Assembly
1W11374238 Whirlpool Refrigerator Door-FIP
2BW11250318 Whirlpool Refrigerator FIP Gasket
2AW11235134 Whirlpool Refrigerator FIP Gasket
2W11235133 Whirlpool Refrigerator FIP Gasket
3AW11374242 Whirlpool Door FIP
3BW11374244 Whirlpool Refrigerator Door Assembly
3W11374236 Whirlpool Refrigerator Door Assembly
4W11736728 Whirlpool Gasket
4AW11235130 Whirlpool Refrigerator FIP Gasket
4BW11250314 Whirlpool Refrigerator FIP Gasket
5W11291426 Whirlpool Refrigerator Bin
6W11178521 Whirlpool Dishwasher Nameplate
7W11247924 Whirlpool Refrigerator Bin
8W11247889 Whirlpool Refrigerator Bin
9CW11246852 Whirlpool Endcap
9BENDCAP LEFT HAND (GREY)
9AW11246847 Whirlpool Refrigerator End Cap
9W11246845 Whirlpool Endcap Assembly
9DENDCAP RIGHT HAND (BLACK)
9EW11246849 Whirlpool Endcap
10W11745278 Whirlpool Bracket
11W11255553 Whirlpool Hinge Plug
12WPW10397055 Whirlpool Refrigerator Hinge Bracket
13WP489442 Whirlpool Refrigerator Screw
14THIMBLE
14AW11189115 Whirlpool Refrigerator Thimble
14BTHIMBLE
