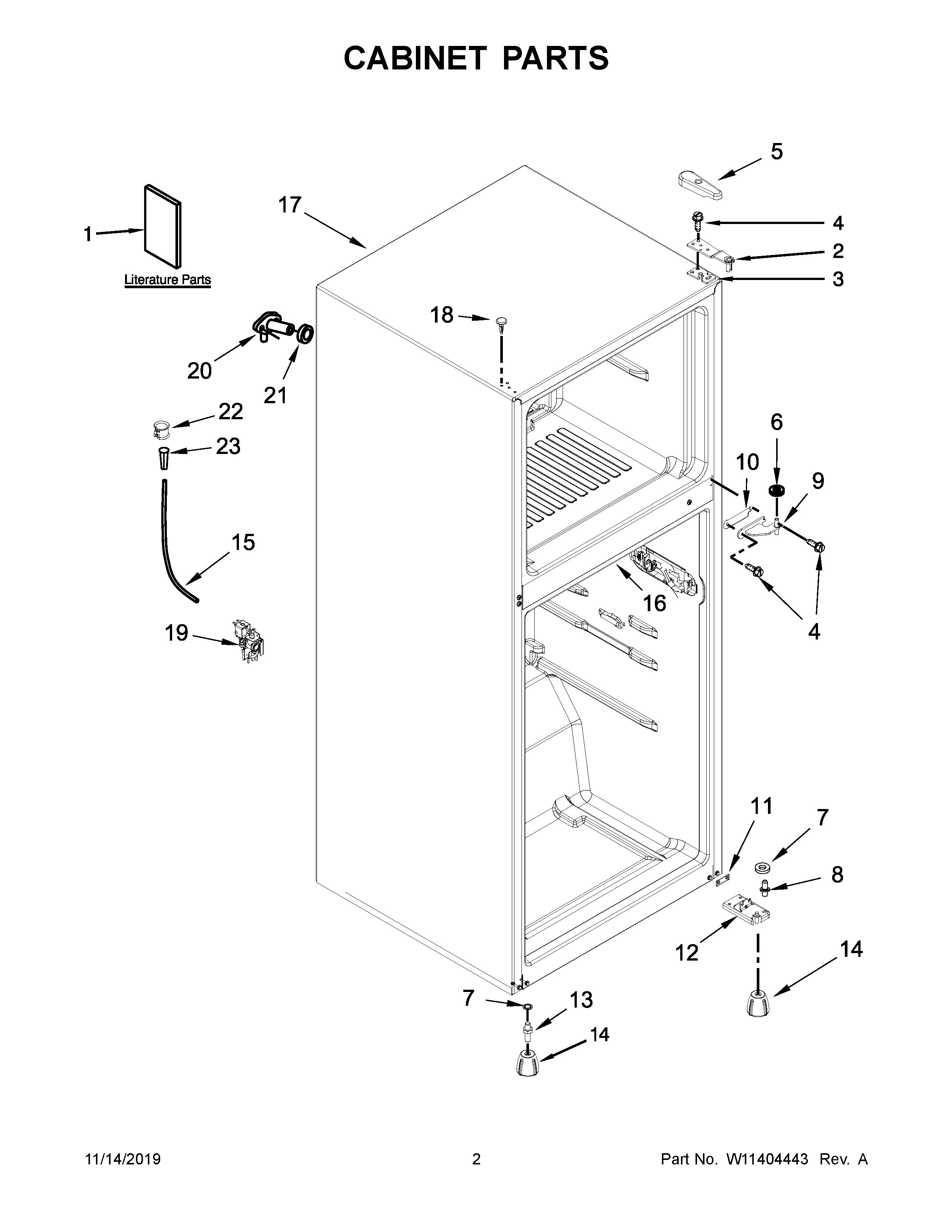

WRT112CZJW00 02 – CABINET PARTS

WRT112CZJW00 02 – CABINET PARTS

Written by

in

WRT112CZJW00 02 – CABINET PARTS

Products

PositionProduct
1USE AND CARE GUIDE
1AENERGY GUIDE
1BWIRING DIAGRAM
2W11191773 Whirlpool Refrigerator Door Hinge
3W10399311 Whirlpool Refrigerator Hinge Shim
4WP489497 Whirlpool Screw
5BCOVER
5HINGE COVER (WHITE)
5AHINGE COVER (BLACK)
6WP487576 Whirlpool Washer
7WP489467 Whirlpool Hinge Shim
8W11678964 Whirlpool Hinge Pin
9W11173998 Whirlpool Refrigerator Door Hinge
10W11269182 Whirlpool Refrigerator Hinge Shim
11W11269192 Whirlpool Refrigerator Hinge Shim
12W11580021 Whirlpool Refrigerator Door Hinge
13SCREW, LEVELER
14W11545335 Whirlpool Refrigerator Leveling Leg
15W10823511 Whirlpool Refrigerator Water Tube
17CABINET (NOT A SERVICEABLE PART)
18AWPW10520307 Whirlpool Refrigerator Replacement Plug Button
18BWPW10520305 Whirlpool Refrigerator Button Plug
18WPW10520304 Whirlpool Refrigerator Button Plug
19VALVE-REFR INLET
20W11700599 Whirlpool Fitting
21WP1106508 Whirlpool Refrigerator Gasket
22W10861184 Whirlpool Refrigerator Clamp
234387491 Whirlpool Refrigerator Insert
