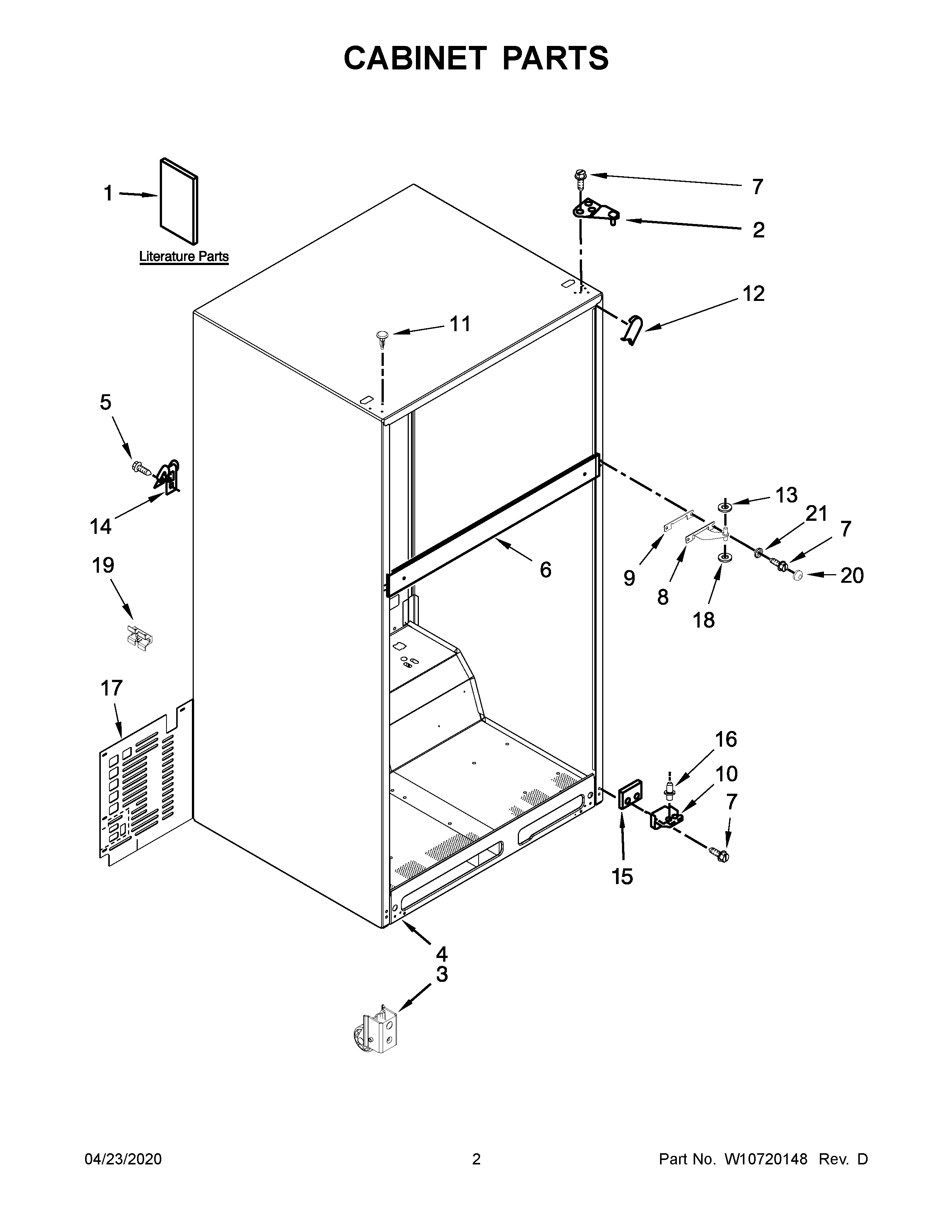

WRT134TFDB00 02 – CABINET PARTS

Products

Position	Product
1B	ENERGY GUIDE
1A	USE AND CARE GUIDE
1	SERVICE & WIRING SHEET
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	WPW10142530 Whirlpool Refrigerator Cabinet Roller
5	WP489442 Whirlpool Refrigerator Screw
6	CABINET (NOT A SERVICEABLE PART)
7	WP489497 Whirlpool Screw
8	WP2166037 Whirlpool Refrigerator Door Hinge
9A	2215385 Whirlpool Refrigerator Shim
9	2166043 Whirlpool Refrigerator Shim
10	WP2325482 Whirlpool Bottom Hinge
11B	WPW10520307 Whirlpool Refrigerator Replacement Plug Button
11	WPW10520304 Whirlpool Refrigerator Button Plug
11A	WPW10520305 Whirlpool Refrigerator Button Plug
12A	W11500943 Whirlpool Refrigerator Filler
12	W10859322 Whirlpool Refrigerator Filler
12B	W11573591 Whirlpool Refrigerator Filler
13	WP489467 Whirlpool Hinge Shim
14	W11234470 Whirlpool Refrigerator Clamp
15	WP2201567 Whirlpool Hinge Shim
16	W11026307 Whirlpool Refrigerator Hinge Pin
17	W11307292 Whirlpool Refrigerator Unit Cover
18	WP487576 Whirlpool Washer
19	2266506 Whirlpool Refrigerator Spacer
20A	W10853677 Whirlpool Refrigerator Screw Cap
20B	W10849198 Whirlpool Refrigerator Cap Screw
20	W10846529 Whirlpool Refrigerator Screw Cap
21	W10847959 Whirlpool Refrigerator Washer
