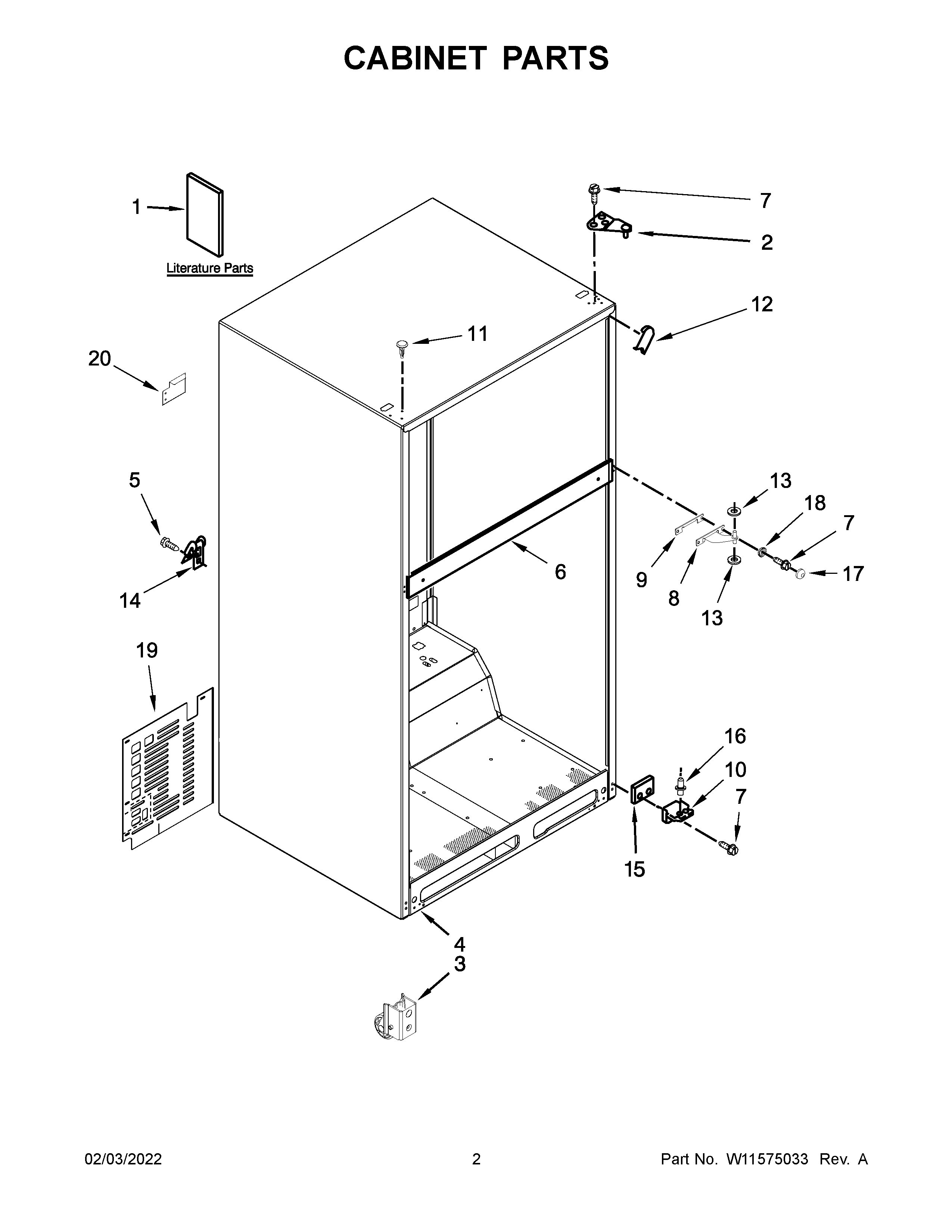

WRT134TFDM01 02 – CABINET PARTS

WRT134TFDM01 02 – CABINET PARTS

Written by

in

WRT134TFDM01 02 – CABINET PARTS

Products

PositionProduct
1BENERGY GUIDE
1TECH SHEET
1AUSE AND CARE GUIDE
2WP2261963 Whirlpool Refrigerator Door Hinge
3WPW10142530 Whirlpool Refrigerator Cabinet Roller
4CABINET (NOT SERVICED)
5WP489442 Whirlpool Refrigerator Screw
6RAIL, CENTER (NOT SERVICED)
7WP489497 Whirlpool Screw
8WP2166037 Whirlpool Refrigerator Door Hinge
92166043 Whirlpool Refrigerator Shim
9A2215385 Whirlpool Refrigerator Shim
10WP2325482 Whirlpool Bottom Hinge
11WPW10520304 Whirlpool Refrigerator Button Plug
11BWPW10520307 Whirlpool Refrigerator Replacement Plug Button
11AWPW10520305 Whirlpool Refrigerator Button Plug
12AW11500943 Whirlpool Refrigerator Filler
12BW11573591 Whirlpool Refrigerator Filler
12W10859322 Whirlpool Refrigerator Filler
13WP487802 Whirlpool Refrigerator Washer
14W11234470 Whirlpool Refrigerator Clamp
15WP2201567 Whirlpool Hinge Shim
16W11026307 Whirlpool Refrigerator Hinge Pin
17AW10853677 Whirlpool Refrigerator Screw Cap
17W10846529 Whirlpool Refrigerator Screw Cap
17BW10849198 Whirlpool Refrigerator Cap Screw
18W10847959 Whirlpool Refrigerator Washer
19W11307292 Whirlpool Refrigerator Unit Cover
20ACCESS COVER, VALVE
