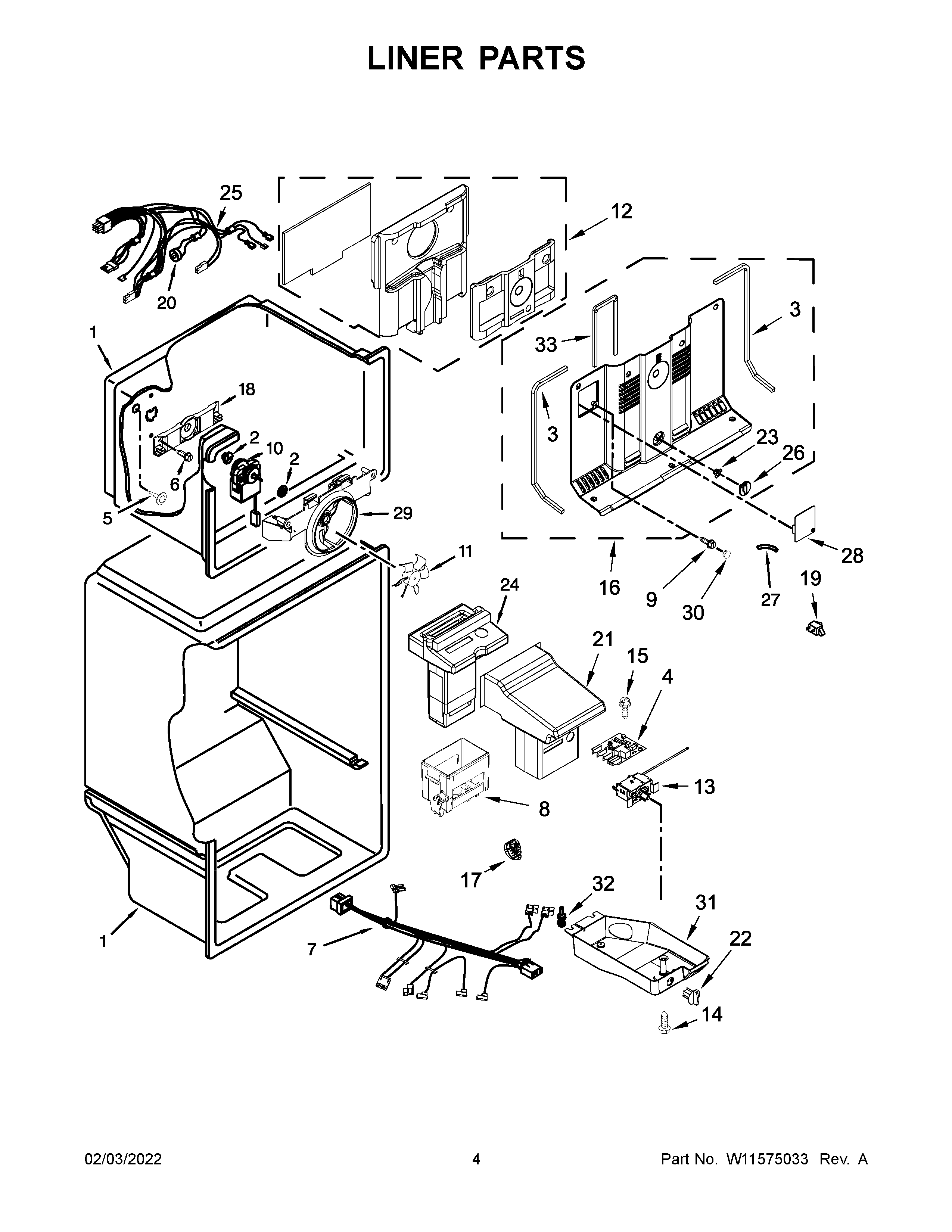

WRT134TFDM01 03 – LINER PARTS

WRT134TFDM01 03 – LINER PARTS

Written by

in

WRT134TFDM01 03 – LINER PARTS

Products

PositionProduct
1LINER (NOT SERVICED)
2WP2264462 Whirlpool Refrigerator Grommet
3W10579698 Whirlpool Refrigerator Gasket
4W11577965 Whirlpool Defrost Timer
5WP941839 Whirlpool Refrigerator Button Plug
6WP488163 Whirlpool Refrigerator Screw
7W11404458 Whirlpool Wire Harness
8W10570480 Whirlpool Cover
9W10720456 Whirlpool Refrigerator Screw
10WP2315539 Whirlpool Refrigerator Evaporator Fan Motor
11WP2163777 Whirlpool Refrigerator Fan Blade
12W10666603 Whirlpool Refrigerator Air Duct
13W11577966 Whirlpool Thermostat
14WP487353 Whirlpool Refrigerator Screw
15WP489174 Whirlpool Refrigerator Screw
16W10573325 Whirlpool Refrigerator Evaporator Cover
17W11577968 Whirlpool Refrigerator LED Module
182254454 Whirlpool Refrigerator Bracket
19W11123941 Whirlpool Refrigerator Switch
20BI-METAL DEFROST (NOT SERVICED)
21W11208347 Whirlpool Refrigerator Air Duct
22WP2202885 Whirlpool Refrigerator Thermal Knob
23W10169456 Whirlpool Refrigerator Control
24W11199204 Whirlpool Refrigerator Diffuser
25W11577969 Whirlpool Wire Harness
26W11026417 Whirlpool Refrigerator Air Damper
27WP2196003 Whirlpool Refrigerator Bar Riser
28W11341627 Whirlpool Cover
29W10850162 Whirlpool Refrigerator Orifice
30W10854527 Whirlpool Refrigerator Cover
31W10648656 Whirlpool Refrigerator Control Box
32939962 Whirlpool Refrigerator Rivet
33W10579707 Whirlpool Refrigerator Gasket
