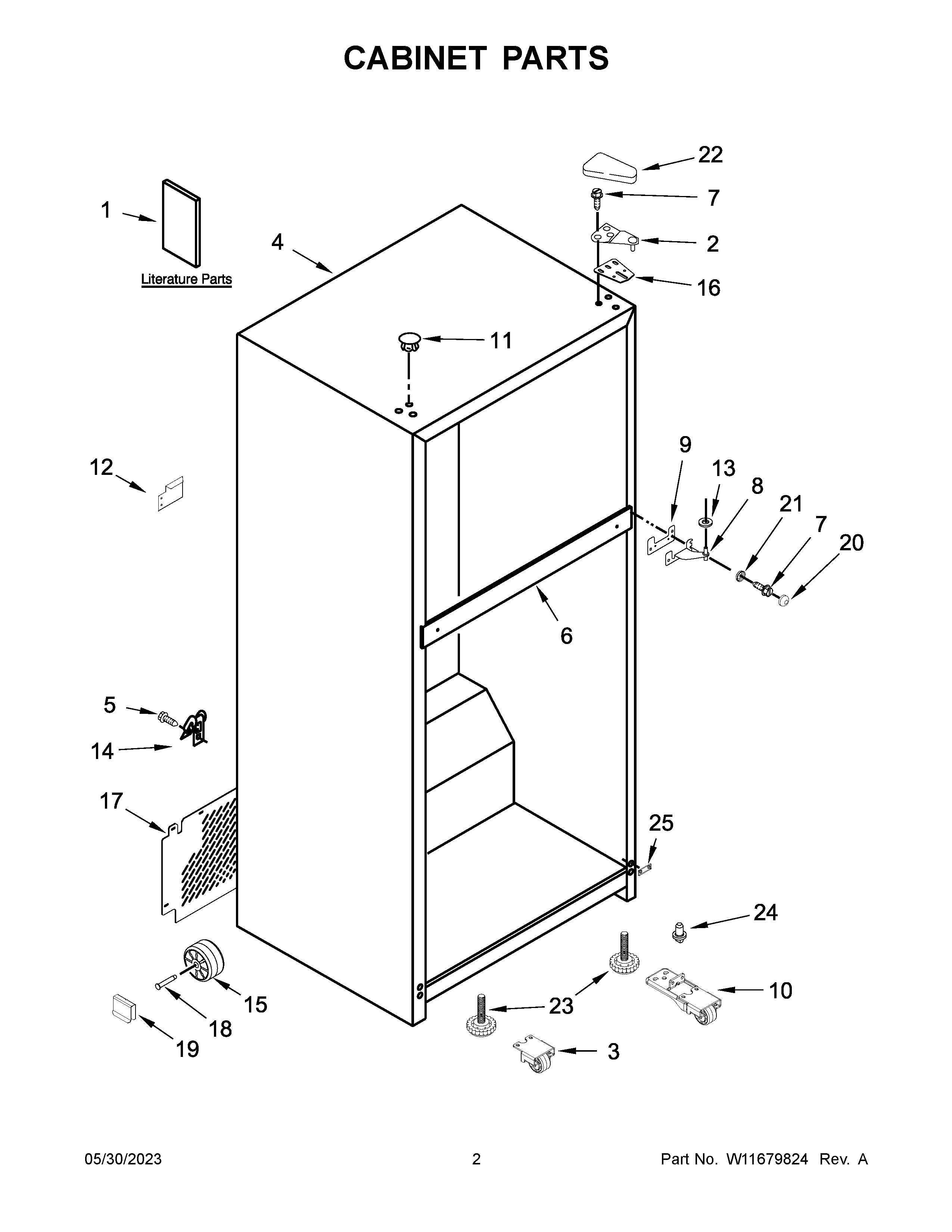

WRT138FFDB03 02 – CABINET PARTS

Products

Position	Product
1B	ENERGY GUIDE
1	TECH SHEET
1A	USE & CARE GUIDE
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	W11256723 Whirlpool Refrigerator CAB Roller
4	CABINET (NOT SERVICED)
5	WP489442 Whirlpool Refrigerator Screw
6	RAIL, CENTER (NOT SERVICED)
7	WP489497 Whirlpool Screw
8	WP2254618 Whirlpool Center Door Hinge
9	WP2183852 Whirlpool Refrigerator Shim
10	W11096015 Whirlpool Refrigerator Cab Roller
11A	WPW10520305 Whirlpool Refrigerator Button Plug
11	WPW10520304 Whirlpool Refrigerator Button Plug
11B	WPW10520307 Whirlpool Refrigerator Replacement Plug Button
12	ACCESS COVER, VALVE
13	WP489467 Whirlpool Hinge Shim
14	W11234470 Whirlpool Refrigerator Clamp
15	WPW10475495 Whirlpool Roller Assembly
16	W11169703 Whirlpool Refrigerator Shim
17	W11476772 Whirlpool Refrigerator Cover Assembly
18	W11594405 Whirlpool Axle
19	WP2174706 Whirlpool Refrigerator Pin Hitch
20	W10846529 Whirlpool Refrigerator Screw Cap
20A	W10853677 Whirlpool Refrigerator Screw Cap
20B	W10849198 Whirlpool Refrigerator Cap Screw
21	W10847959 Whirlpool Refrigerator Washer
22A	WP2213363 Whirlpool Refrigerator Cover
22B	W10853622 Whirlpool Refrigerator Cover
22	WP2213360 Whirlpool Refrigerator Cover
23	W10854419 Whirlpool Refrigerator Leveling Leg
24	W11026307 Whirlpool Refrigerator Hinge Pin
25	W11528669 Whirlpool Hinge Shim
