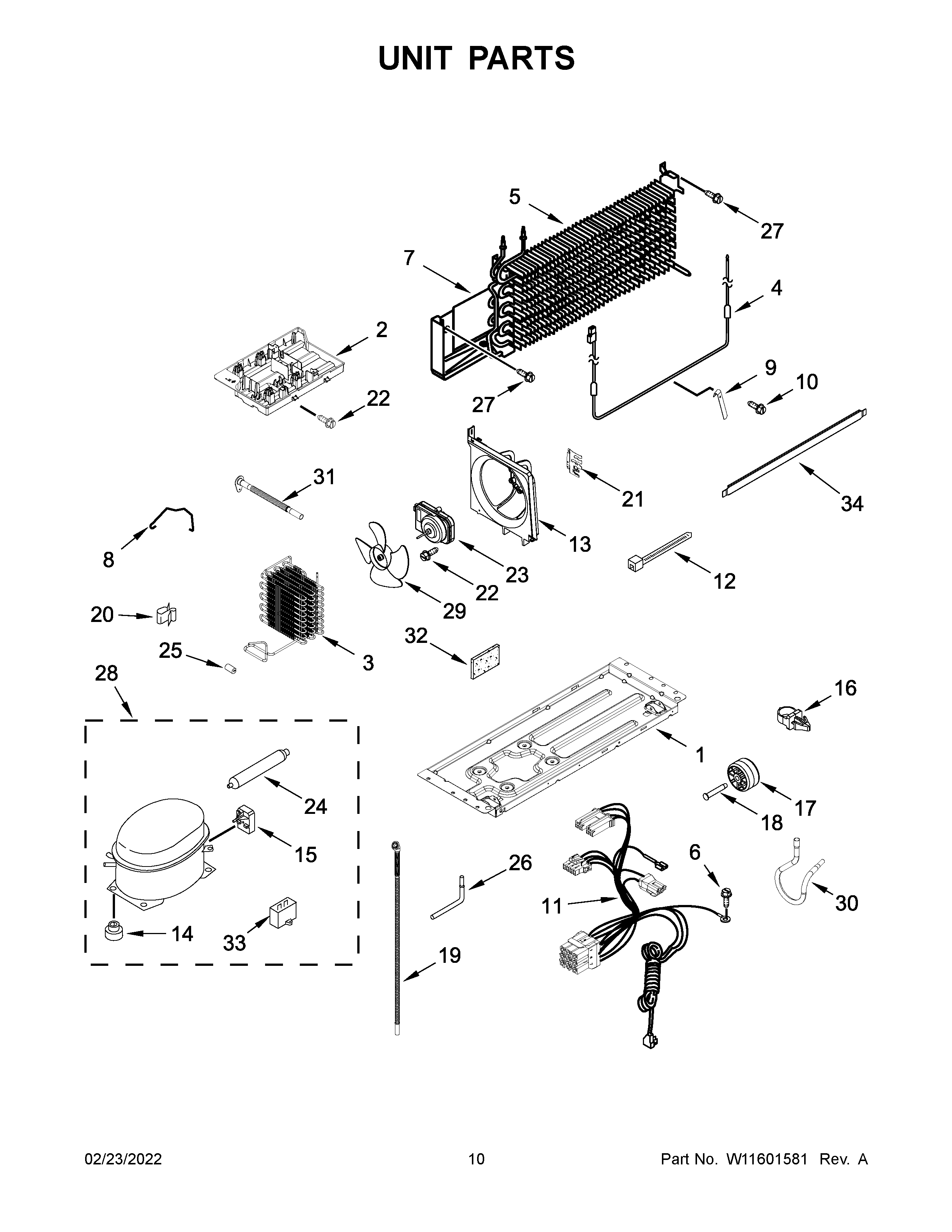

WRT138FFDM00 06 – UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
1	W10624648 Whirlpool Base Unit
2	W10633582 Whirlpool Refrigerator Evaporator Tray
3	W11512423 Whirlpool Refrigerator Condenser
4	WPW10316428 Whirlpool Refrigerator Heater
5	W11407409 Whirlpool Refrigerator Evaporator
6	WP489128 Whirlpool Refrigerator Screw
7	W11562216 Whirlpool Shield
8	W11092534 Whirlpool Refrigerator Clip
9	W10856574 Whirlpool Refrigerator Heat Probe
10	WP489478 Whirlpool Refrigerator Screw
11	W11611445 Whirlpool Refrigerator Wire Harness
12	WPW10339879 Whirlpool Wire Tie
13	W11736795 Whirlpool Air Baffle
14	WPW10169124 Whirlpool Refrigerator Grommet
15	W11092533 Whirlpool Device Start
16	2219077 Whirlpool Refrigerator Clip
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
19	W10633573 Whirlpool Refrigerator Drain Tube
20	W10812039 Whirlpool Clip
21	W10314197 Whirlpool Refrigerator Bracket
22	W10829281 Whirlpool Refrigerator Screw
23	W11127829 Whirlpool Refrigerator Condenser Motor
24	W11109499 Whirlpool Refrigerator Tube
25	W10852725 Whirlpool Refrigerator Grommet
26	W11661102 Whirlpool Tube
27	WP489442 Whirlpool Refrigerator Screw
28	W11605926 Whirlpool Refrigerator Compressor
29	W11193484 Whirlpool Fan Blade
30	W11407403 Whirlpool Refrigerator Tube
31	W11383479 Whirlpool Extension Assembly
32	W11553819 Whirlpool Refrigerator Insulation
33	WPW10662129 Whirlpool Refrigerator Run Capacitor
34	W10300902 Whirlpool Refrigerator Cover
