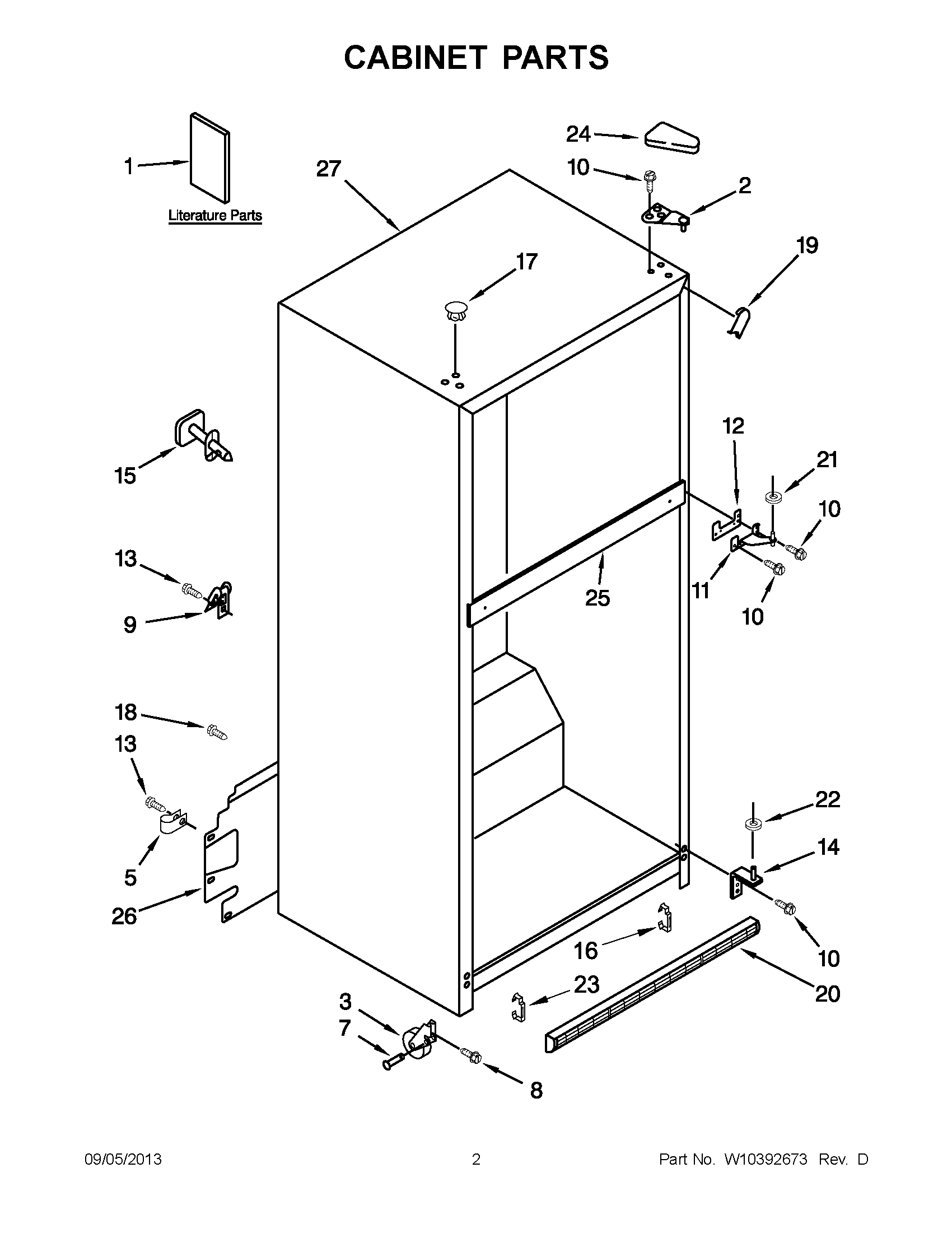

WRT138TFYB00 02 – CABINET PARTS

WRT138TFYB00 02 – CABINET PARTS

Written by

in

WRT138TFYB00 02 – CABINET PARTS

Products

PositionProduct
1ENERGY LABEL
1DO-IT-YOURSELF MANUAL, REF./ FZR.
1SERVICE AND WIRING SHEET
1USE & CARE GUIDE
2WP2261963 Whirlpool Refrigerator Door Hinge
3W10849386 Whirlpool Refrigerator CAB Roller
5WP488366 Whirlpool Refrigerator Clamp
7W11594405 Whirlpool Axle
8W10850698 Whirlpool Refrigerator Screw
9549193 Whirlpool Refrigerator Power Clamp
10WP489497 Whirlpool Screw
11WP2254618 Whirlpool Center Door Hinge
12WP2183852 Whirlpool Refrigerator Shim
13WP489464 Whirlpool Refrigerator Screw
14WP2254473 Whirlpool Refrigerator Door Hinge
162254385 Whirlpool Refrigerator Clip
17WP2183998 Whirlpool Refrigerator Button Plug
17WP2151652 Whirlpool Refrigerator Button Plug
18WP489427 Whirlpool Refrigerator Screw
19W11252732 Whirlpool Refrigerator Filler
19WPW10283959 Whirlpool Refrigerator Filler
20Grille (Includes Illus. 4 & 24) (Black)
20WP2254386 Whirlpool Refrigerator Grille
21WP489467 Whirlpool Hinge Shim
22WP487576 Whirlpool Washer
23CLIP, GRILLE
24WP2213363 Whirlpool Refrigerator Cover
24WP2213360 Whirlpool Refrigerator Cover
26W10636716 Whirlpool Refrigerator Cover Unit
27CABINET (NOT A SERVICEABLE PART)
