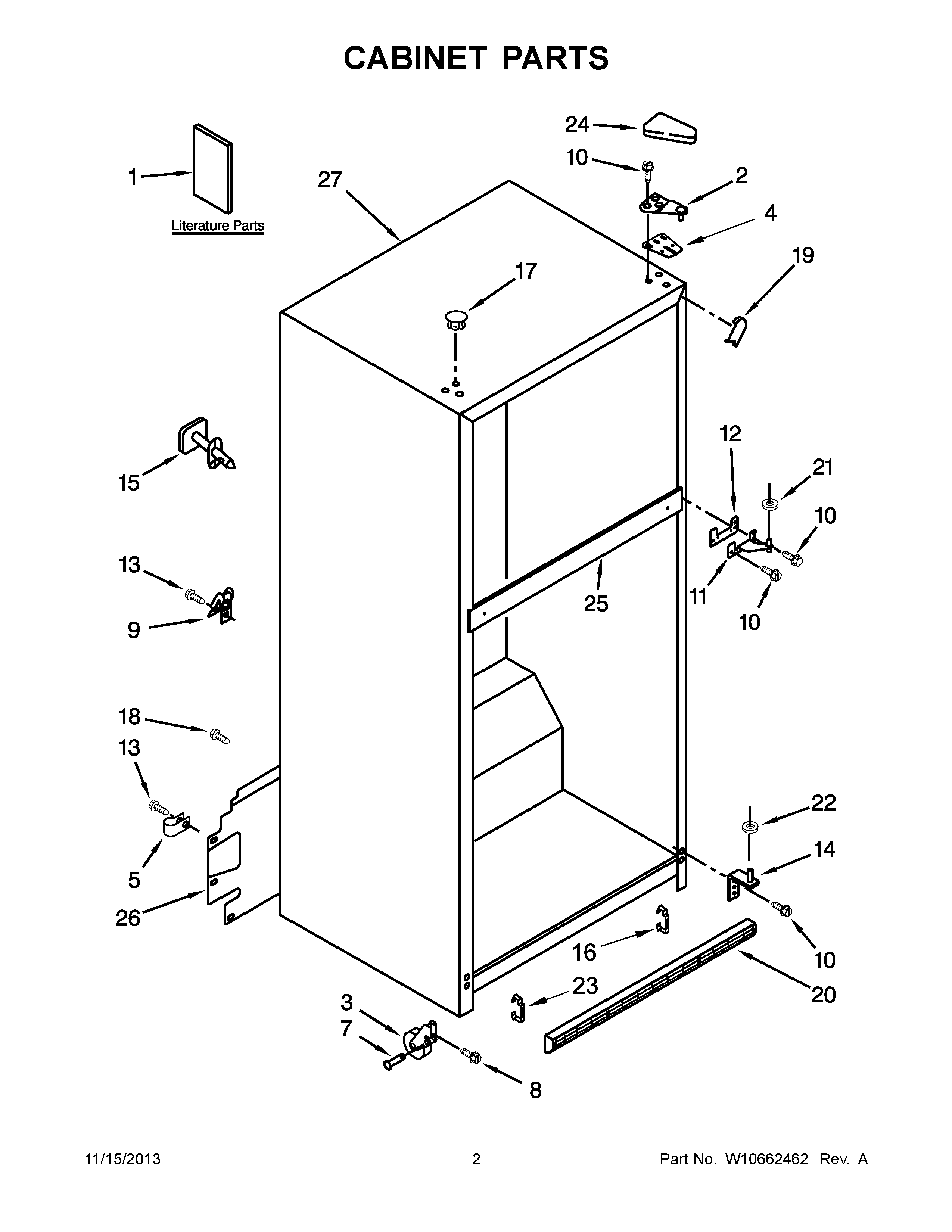

WRT138TFYS02 02 – CABINET PARTS

WRT138TFYS02 02 – CABINET PARTS

Written by

in

WRT138TFYS02 02 – CABINET PARTS

Products

PositionProduct
1ENERGY LABEL
1USE AND CARE GUIDE
1SERVICE AND WIRING SHEET
2WP2261963 Whirlpool Refrigerator Door Hinge
3W10849386 Whirlpool Refrigerator CAB Roller
4W11169703 Whirlpool Refrigerator Shim
5WP488366 Whirlpool Refrigerator Clamp
7W11594405 Whirlpool Axle
8W10850698 Whirlpool Refrigerator Screw
9549193 Whirlpool Refrigerator Power Clamp
10WP489497 Whirlpool Screw
11WP2254618 Whirlpool Center Door Hinge
12WP2183852 Whirlpool Refrigerator Shim
13WP488729 Whirlpool Refrigerator Door Screw
14WP2254473 Whirlpool Refrigerator Door Hinge
162254385 Whirlpool Refrigerator Clip
17WP941839 Whirlpool Refrigerator Button Plug
18WP489427 Whirlpool Refrigerator Screw
19W11252732 Whirlpool Refrigerator Filler
20Grille (Includes Illus. 4 & 24) (Black)
21WP489467 Whirlpool Hinge Shim
22WP487576 Whirlpool Washer
23CLIP, GRILLE
24WP2213363 Whirlpool Refrigerator Cover
26W10636716 Whirlpool Refrigerator Cover Unit
27CABINET (NOT A SERVICEABLE PART)
