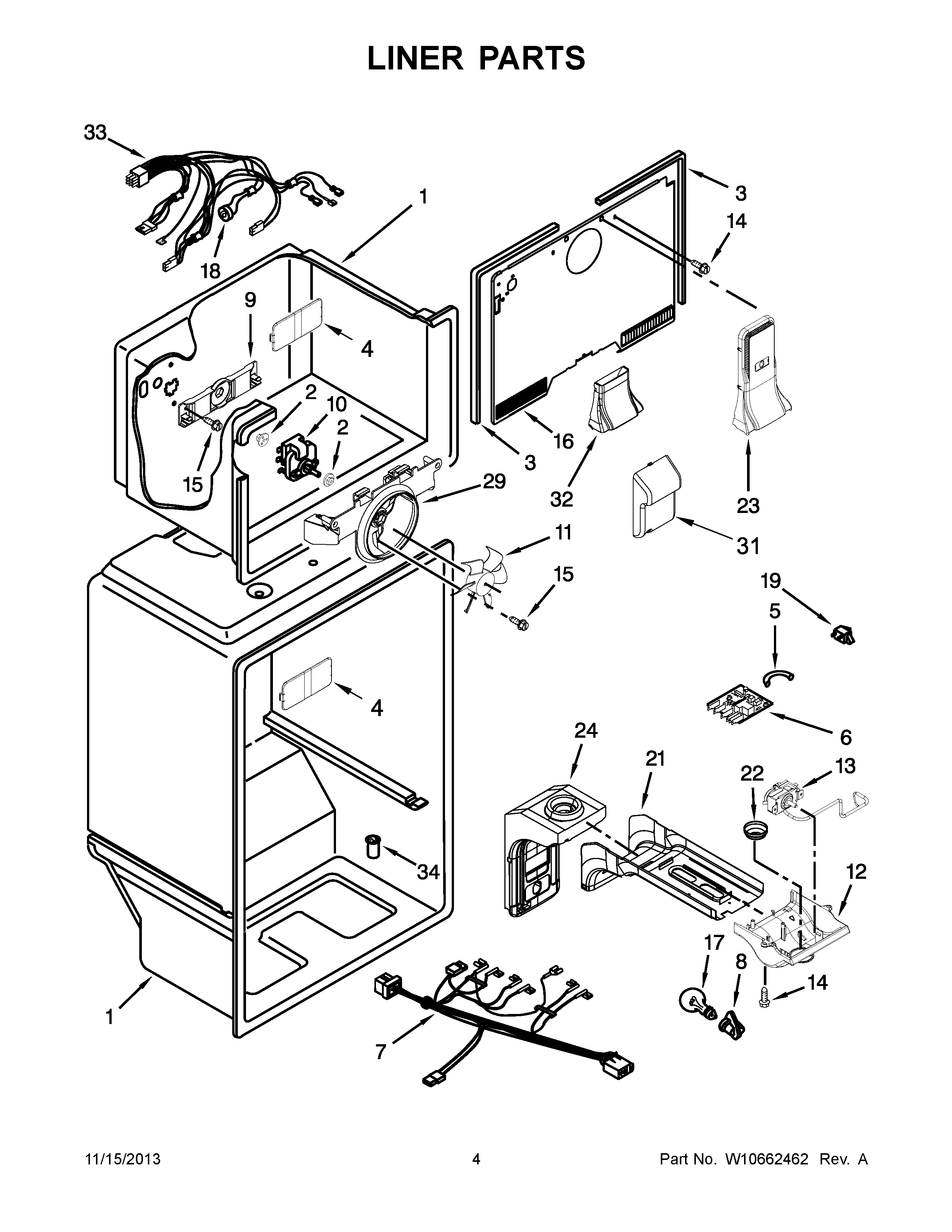

WRT138TFYS02 03 – LINER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	WP2264462 Whirlpool Refrigerator Grommet
3	W10849448 Whirlpool Refrigerator Gasket
4	W10336009 Whirlpool Refrigerator Cover
5	WP2196003 Whirlpool Refrigerator Bar Riser
6	WPW10352689-includeCORE Whirlpool WPW10352689 Refrigerator Electronic Control Board + Core
7	W10318068 Whirlpool Wire Harness
8	4387478 Whirlpool Refrigerator Light Socket
9	2254454 Whirlpool Refrigerator Bracket
10	WP2315539 Whirlpool Refrigerator Evaporator Fan Motor
11	WP2163777 Whirlpool Refrigerator Fan Blade
12	W10316941 Whirlpool Refrigerator Control Box
13	WPW10584888 Whirlpool Refrigerator Thermostat
14	WP489478 Whirlpool Refrigerator Screw
15	WP488163 Whirlpool Refrigerator Screw
16	COVER, EVAPORATOR
17	W10887190 Whirlpool Refrigerator Light Bulb
18	WPW10392132 Whirlpool Refrigerator Bi-Metal Defrost Thermostat
19	W11384469 Whirlpool Door Switch
21	WPW10305175 Whirlpool Refrigerator Cover
22	KNOB
23	TOWER, AIR
24	ASSEMBLY, AIR DIFFUSER
29	W10850162 Whirlpool Refrigerator Orifice
31	WPW10339203 Whirlpool Refrigerator Tube Cover
32	ASSEMBLY, TOWER CONNECTION
33	W10339627 Whirlpool Refrigerator Wire Harness
34	WP2210509 Whirlpool Refrigerator Tub Valve
