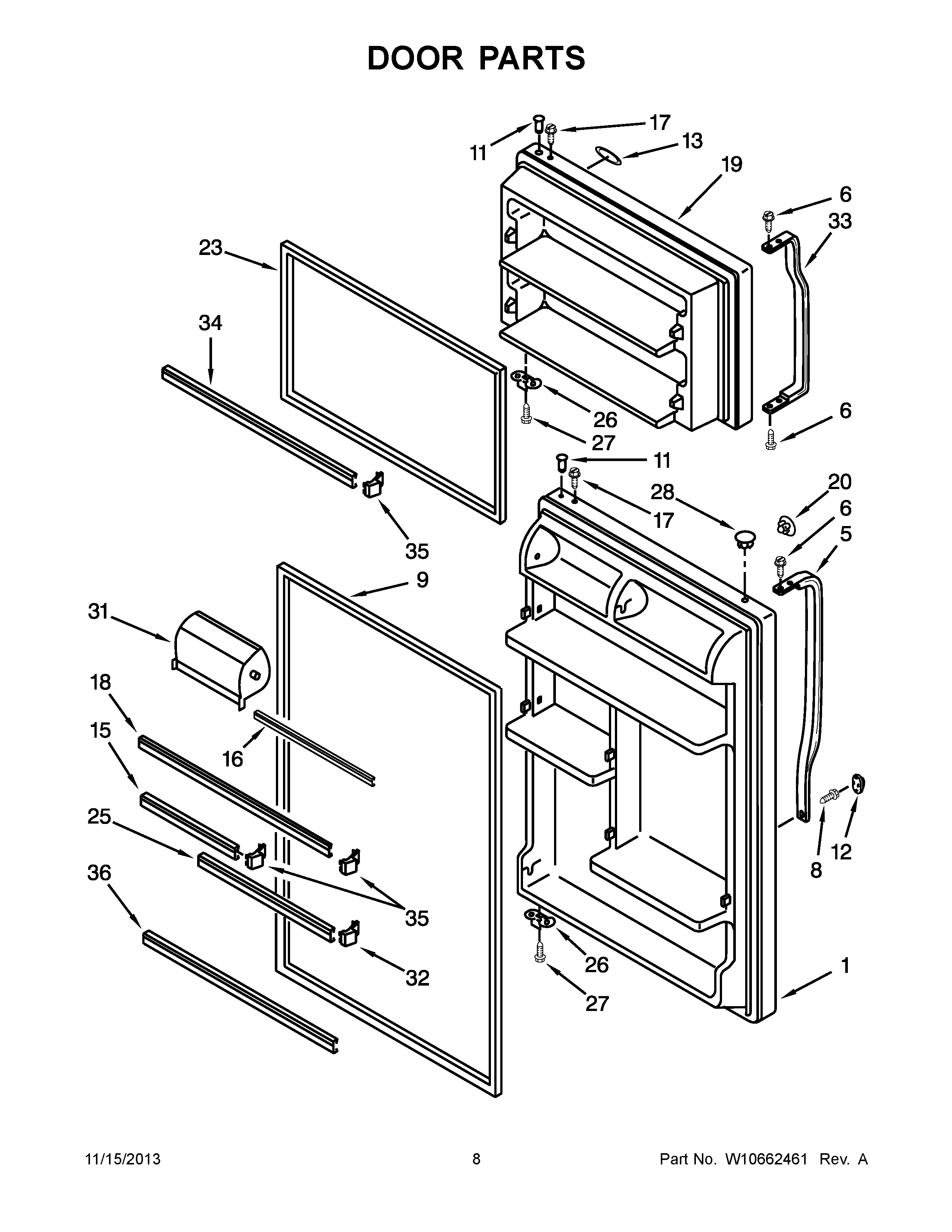

WRT138TFYW01 05 – DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes No.9 & No.22) (White)
1	Refrigerator Door (Includes No.9 & No.11) (Black)
5	HANDLE
5	WP2326169B Whirlpool Refrigerator Handle
6	WP489357 Whirlpool Recessed Screw
8	WP8281146 Whirlpool Screw
9	2159057 Whirlpool Refrigerator Fresh Food Door Gasket
9	2177305 Whirlpool Refrigerator Door FIP Gasket
11	WP2314293 Whirlpool Refrigerator Thimble
12	WP2202819W Whirlpool Refrigerator Cover
12	WP2202819B Whirlpool Refrigerator Cover
13	W11178521 Whirlpool Dishwasher Nameplate
15	WPW10463613 Whirlpool Refrigerator Door Trim
16	TRIM-DOOR
17	WP8281206 Whirlpool Refrigerator Screw
18	WPW10464028 Whirlpool Refrigerator Door Trim
19	Freezer Door (Includes Illus. 4, 17 & 18) (White)
19	Freezer Door (Includes Illus. 4,17 & 18) (Black)
20	WP2189000 Whirlpool Refrigerator Handle Plug
20	WP2189009 Whirlpool Refrigerator Handle Plug
23	2159327 Whirlpool Refrigerator Door Gasket
23	2177304 Whirlpool Refrigerator FIP Gasket
25	WPW10463614 Whirlpool Refrigerator Shelf Trim
26	W11745278 Whirlpool Bracket
27	WP488921 Whirlpool Refrigerator Screw
28	WP2212651 Whirlpool Refrigerator Button Plug
28	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
31	WP2218113 Whirlpool Dairy Door
32	WP2195915 Whirlpool Door Shelf Support
33	WP2202806B Whirlpool Refrigerator Handle
33	WP2202806W Whirlpool Refrigerator Handle
34	WPW10463615 Whirlpool Refrigerator Door Trim
35	WP2156003 Whirlpool Refrigerator Door Shelf End Cap
36	WPW10421484 Whirlpool Refrigerator Door Trim
