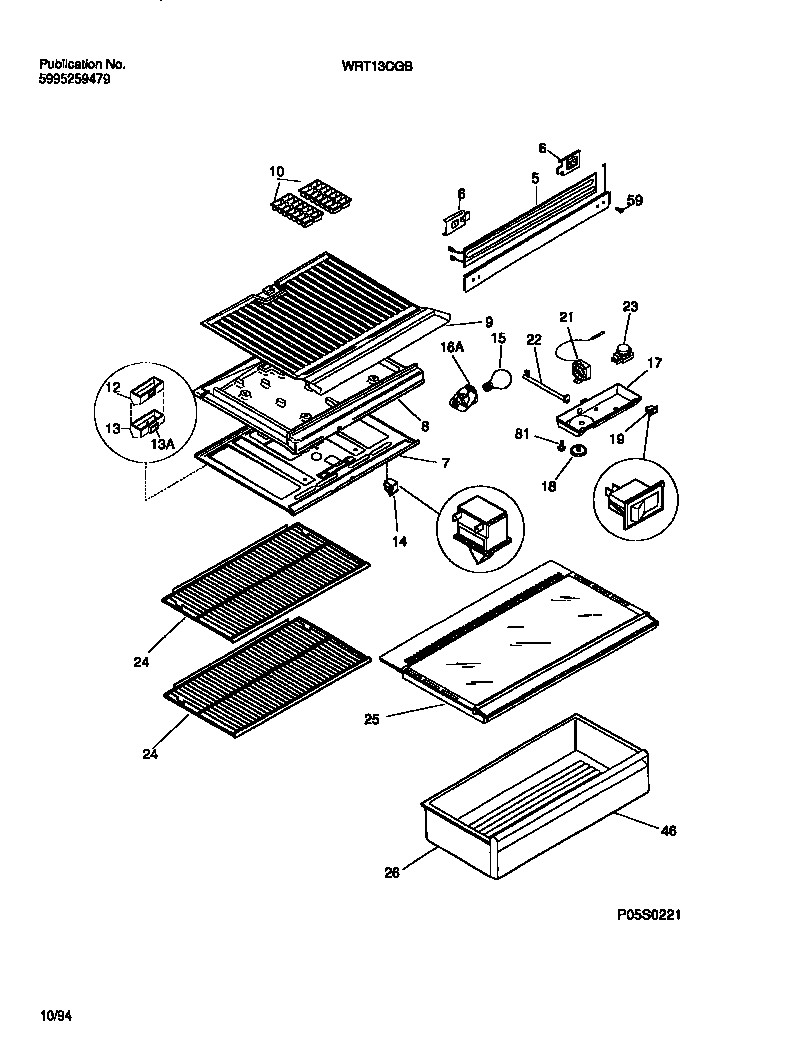

WRT13CGBD1 04 – SHELVES, CONTROLS, DIVIDER, MULLIONadmin2025-04-26T08:45:57+00:00WRT13CGBD1 04 – SHELVES, CONTROLS, DIVIDER, MULLION
Products
| Position | Product |
|---|
| 1 | WCI 218430711 |
| 5 | WCI 218271301 |
| 6 | WCI 218279800 |
| 7A | WCI 5303001380 |
| 7 | WCI 5303270919 |
| 8A | 3205266 Frigidaire Refrigerator Edge Protector |
| 8 | WCI 5303270921 |
| 8B | HARNESS, WIRING, CONTROL/DIVIDER (NOT ILLUSTRATED) |
| 9 | BOTTOM PANEL-FRZR |
| 10 | 215667501 Frigidaire Refrigerator Ice Tray Primary |
| 12 | DEFLECTRO, AIR, W/SEAL |
| 12A | 5303001449 Frigidaire Refrigerator Seal |
| 13A | EXTENSION, AIR DEFLECTOR, WITH INSULATION |
| 13 | WCI 5303001448 |
| 14 | 5309918806 Frigidaire Refrigerator Light Switch Door |
| 15 | 316538904 Frigidaire Oven Lamp Light |
| 16A | 218906802 Frigidaire Light Lamp Socket |
| 17 | WCI 5303299980 |
| 17A | NUT, ANCHOR (NI) |
| 18 | WCI 5303299979 |
| 19 | SWITCH-ENERGY SAVER, ROCKER |
| 21 | WCI 5303302297 |
| 21A | WCI 5303001260 |
| 22 | HOUSING-TEMP SENSOR, PLASTIC |
| 23 | 215846602 Frigidaire Refrigerator 8-Hour Defrost Timer |
| 23A | 5304455649 Frigidaire Refrigerator Screw |
| 24 | SHELF-SLIDING, WIRE, REFR SECTION |
| 25 | COVER-CRISPER PAN |
| 26 | PAN-CRISPER, FULL-WIDTH |
| 46 | FRONT-CRISPER PAN, FULL-WIDTH |
| 59 | 240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4 |
| 81 | 5304455650 Frigidaire Refrigerator Screw |
