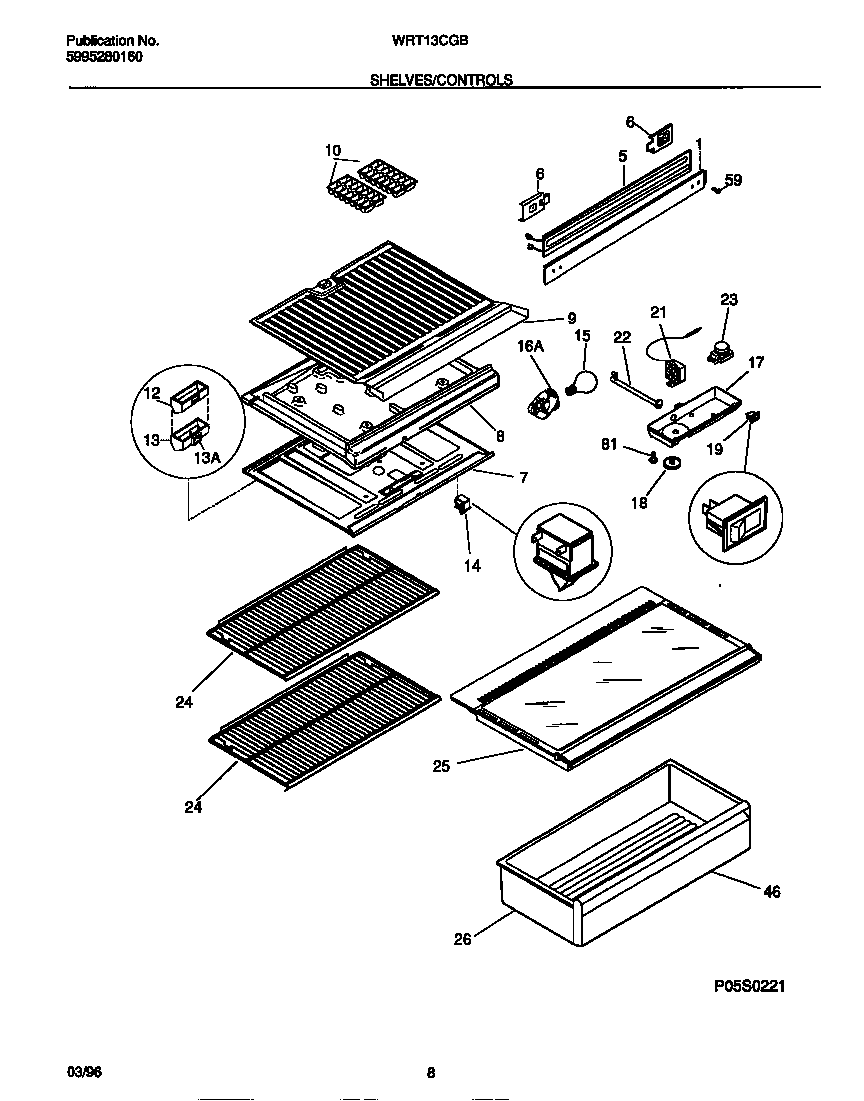

WRT13CGBW3 04 – SHELVES/CONTROLS

WRT13CGBW3 04 – SHELVES/CONTROLS

Written by

in

WRT13CGBW3 04 – SHELVES/CONTROLS

Products

PositionProduct
*10244WCI 5303917618
1WCI 218430701
1WCI 218660100
2BWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
2ABRACKET, MOUNTIN, CONDENSER, (4)
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 218271301
6WCI 215257003
6WCI 218279800
7CORD-ELECTRIC POWER
7BWCI 5303001380
7AWCI 218597300
8AWCI 5303270921
8BHARNESS, WIRING, CONTROL/DIVIDER (NOT ILLUSTRATED)
8WCI 5303001197
9BOTTOM PANEL-FRZR
10215667501 Frigidaire Refrigerator Ice Tray Primary
12AWCI 218630800
12B5303001449 Frigidaire Refrigerator Seal
13WCI 218631001
13WCI 218691900
13EXTENSION, AIR DEFLECTOR, WITH INSULATION
14WCI 5308009754
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
15EVAPORATOR
16218906802 Frigidaire Light Lamp Socket
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17BNUT, ANCHOR (NI)
17INSULATOR-EVAP, PLASTIC
17AWCI 5303307349
18WCI 5303311079
18INSULATION BLOCK, RH
19BINSULATION PLUG, RH
19SWITCH-ENERGY SAVER, ROCKER
19ATUBE-RUBBER
20INSULATION BLOCK, LH
21BWCI 5303001260
21AWCI 5303305486
215303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22HOUSING-TEMP SENSOR, PLASTIC
22TUBE
22WCI 3206126
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
23A215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
23B5304455649 Frigidaire Refrigerator Screw
24WASHER-COMPR MTG
24SHELF-SLIDING, WIRE, REFR SECTION
25COVER-CRISPER PAN
25CLIP – COMPRESSOR MTG
26WCI 215372500
26PAN-CRISPER, FULL-WIDTH
27Nut,lock `1/4-20 ,drain pan mtg
28PAN RETAINER KIT, SERVICE
295304511983 Frigidaire Refrigerator Compressor Assembly Kit
30WCI 216008900
31WCI 5303299560
32WCI 215012000
415308000039 Frigidaire Refrigerator Screw
435303001199 Frigidaire Refrigerator Wiring Harness Clamp
445308000133 Frigidaire Refrigerator Clamp
45B5304455651 Frigidaire Refrigerator Screw
45A5304455852 Frigidaire Refrigerator Screw
46FRONT-CRISPER PAN, FULL-WIDTH
555304464438 Frigidaire Compressor Run Capacitor
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
815304455650 Frigidaire Refrigerator Screw
