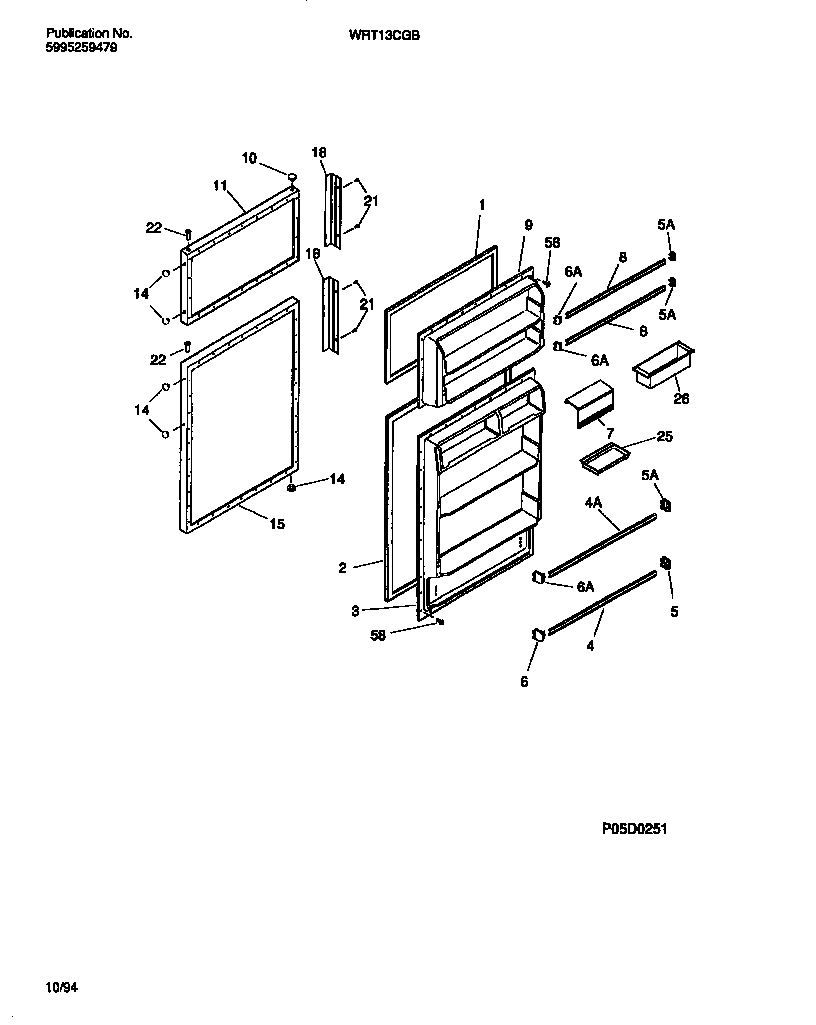

WRT13CGBY1 02 – DOOR SECTION

WRT13CGBY1 02 – DOOR SECTION

Written by

in

WRT13CGBY1 02 – DOOR SECTION

Products

PositionProduct
*26880INSULATION
1GASKET – FREEZER DOOR, BROWN, MAGNETIC
2WCI 215732464
3PANEL-INNER DOOR, REFR
4ARACK-DOOR, 23.16“ X 1.12“
4215366002 Frigidaire Refrigerator Door Wide Rack
5WCI 3206150
5A3206165 Frigidaire Bar Endcap Right Hand
6A3206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support
6WCI 3206151
7DOOR-DAIRY
8RACK-DOOR, 22.59“ X 1.12“
9PANEL-INNER DOOR, FRZR
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11PANEL – FRZR DOOR, ALMOND, W / INSULATION
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15WCI 5303917213
18WCI 215164904
21SCREW-HANDLE MTG, 8 CR TRUSS HD, 10(D) X 1/2
22BEARING-HINGE
255308000716 Frigidaire Refrigerator Dish
26WCI 3204522
585304455651 Frigidaire Refrigerator Screw
