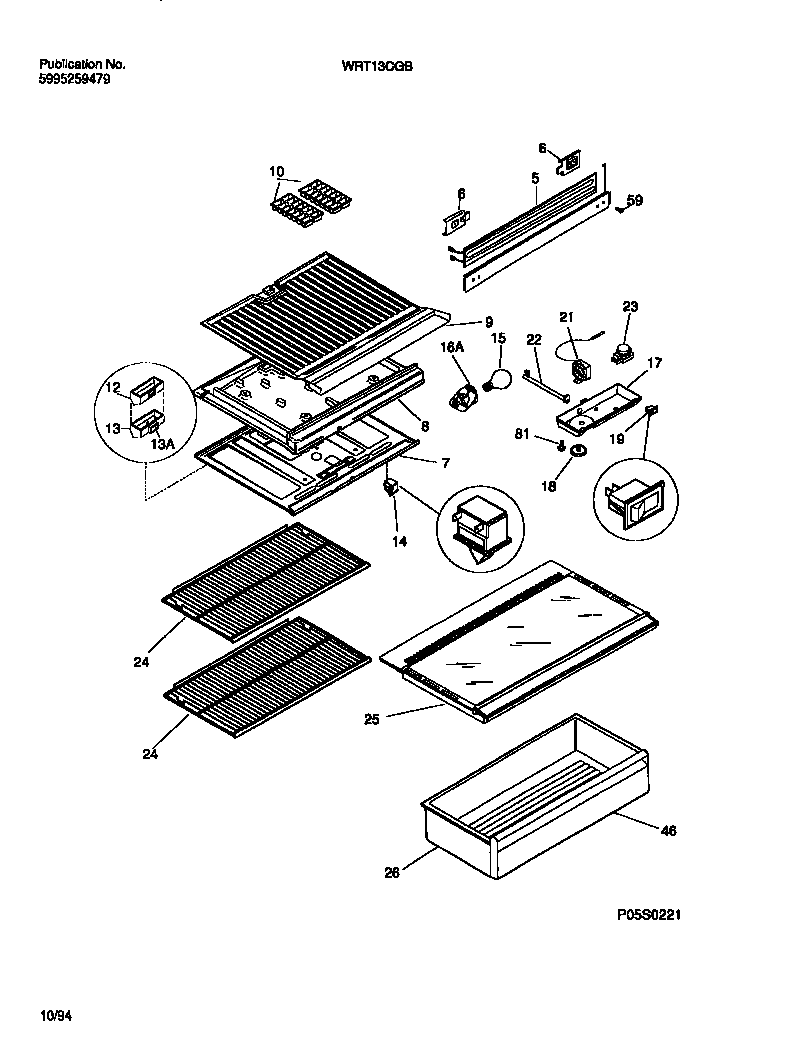

WRT13CGBY1 04 – SHELVES, CONTROLS, DIVIDER, MULLION

WRT13CGBY1 04 – SHELVES, CONTROLS, DIVIDER, MULLION

Written by

in

WRT13CGBY1 04 – SHELVES, CONTROLS, DIVIDER, MULLION

Products

PositionProduct
1WCI 218430711
5WCI 218271301
6WCI 218279800
7AWCI 5303001380
7WCI 5303270919
8A3205266 Frigidaire Refrigerator Edge Protector
8WCI 5303270921
8BHARNESS, WIRING, CONTROL/DIVIDER (NOT ILLUSTRATED)
9BOTTOM PANEL-FRZR
10215667501 Frigidaire Refrigerator Ice Tray Primary
12DEFLECTRO, AIR, W/SEAL
12A5303001449 Frigidaire Refrigerator Seal
13AEXTENSION, AIR DEFLECTOR, WITH INSULATION
13WCI 5303001448
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17WCI 5303299980
17ANUT, ANCHOR (NI)
18WCI 5303299979
19SWITCH-ENERGY SAVER, ROCKER
21WCI 5303302297
21AWCI 5303001260
22HOUSING-TEMP SENSOR, PLASTIC
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
23A5304455649 Frigidaire Refrigerator Screw
24SHELF-SLIDING, WIRE, REFR SECTION
25COVER-CRISPER PAN
26PAN-CRISPER, FULL-WIDTH
46FRONT-CRISPER PAN, FULL-WIDTH
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
815304455650 Frigidaire Refrigerator Screw
