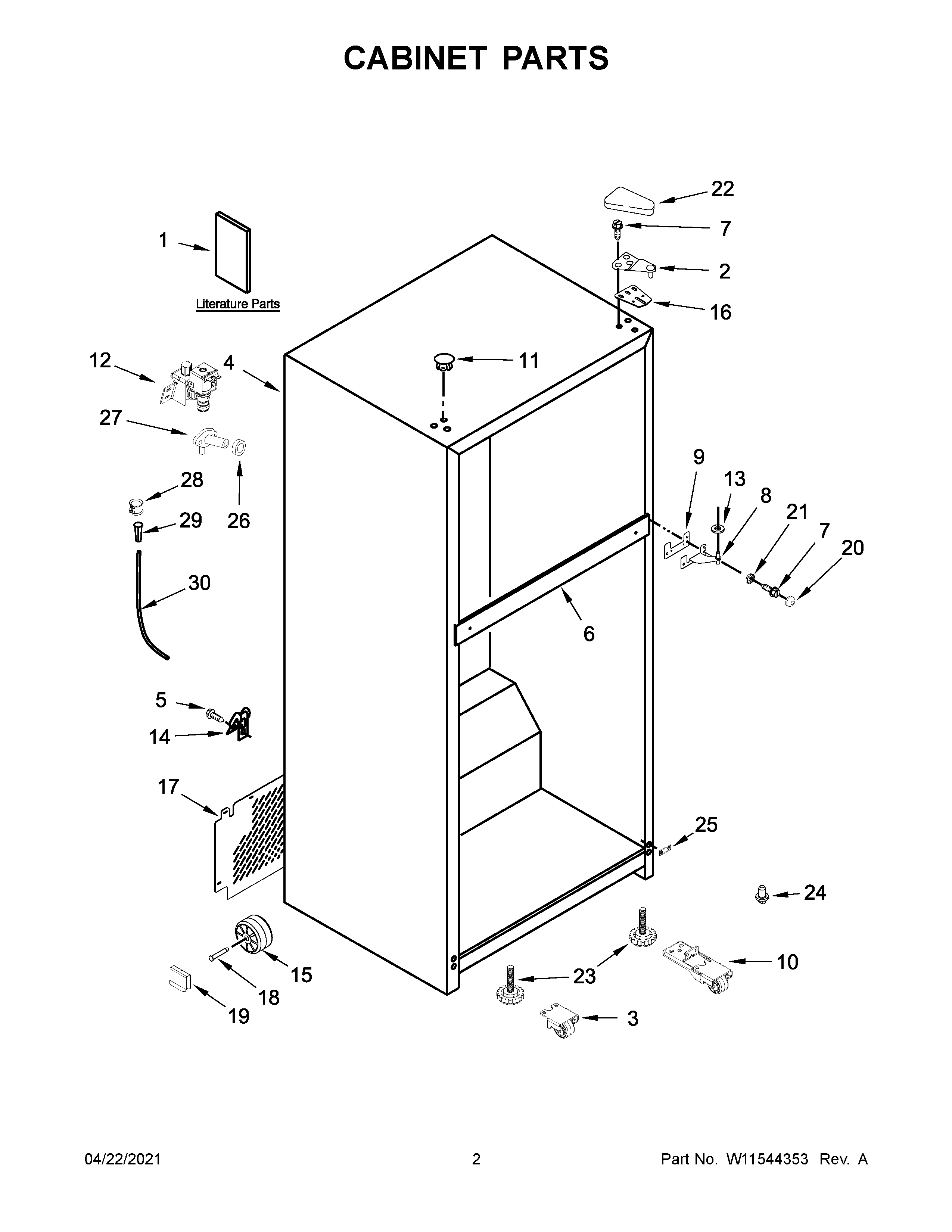

WRT148FZDB03 02 – CABINET PARTS

WRT148FZDB03 02 – CABINET PARTS

Written by

in

WRT148FZDB03 02 – CABINET PARTS

Products

PositionProduct
1BENERGY LABEL
1TECH SHEET
1AUSE AND CARE GUIDE
2WP2261963 Whirlpool Refrigerator Door Hinge
3W11256723 Whirlpool Refrigerator CAB Roller
5WP489442 Whirlpool Refrigerator Screw
6CABINET (NOT A SERVICEABLE PART)
7WP489497 Whirlpool Screw
8WP2254618 Whirlpool Center Door Hinge
9WP2183852 Whirlpool Refrigerator Shim
10W11096015 Whirlpool Refrigerator Cab Roller
11WPW10520304 Whirlpool Refrigerator Button Plug
11AWPW10520305 Whirlpool Refrigerator Button Plug
11BWPW10520307 Whirlpool Refrigerator Replacement Plug Button
12WPW10279909 Whirlpool Refrigerator Inlet Valve
13WP489467 Whirlpool Hinge Shim
14W11234470 Whirlpool Refrigerator Clamp
15WPW10475495 Whirlpool Roller Assembly
16W11169703 Whirlpool Refrigerator Shim
17W11476772 Whirlpool Refrigerator Cover Assembly
18W11594405 Whirlpool Axle
19WP2174706 Whirlpool Refrigerator Pin Hitch
20BW10849198 Whirlpool Refrigerator Cap Screw
20W10846529 Whirlpool Refrigerator Screw Cap
20AW10853677 Whirlpool Refrigerator Screw Cap
21W10847959 Whirlpool Refrigerator Washer
22WP2213360 Whirlpool Refrigerator Cover
22BW10853622 Whirlpool Refrigerator Cover
22AWP2213363 Whirlpool Refrigerator Cover
23W10854419 Whirlpool Refrigerator Leveling Leg
24W11026307 Whirlpool Refrigerator Hinge Pin
25W11528669 Whirlpool Hinge Shim
26WP1106508 Whirlpool Refrigerator Gasket
27W11292468 Whirlpool Refrigerator Fitting
28W10861184 Whirlpool Refrigerator Clamp
294387491 Whirlpool Refrigerator Insert
30W10823511 Whirlpool Refrigerator Water Tube
