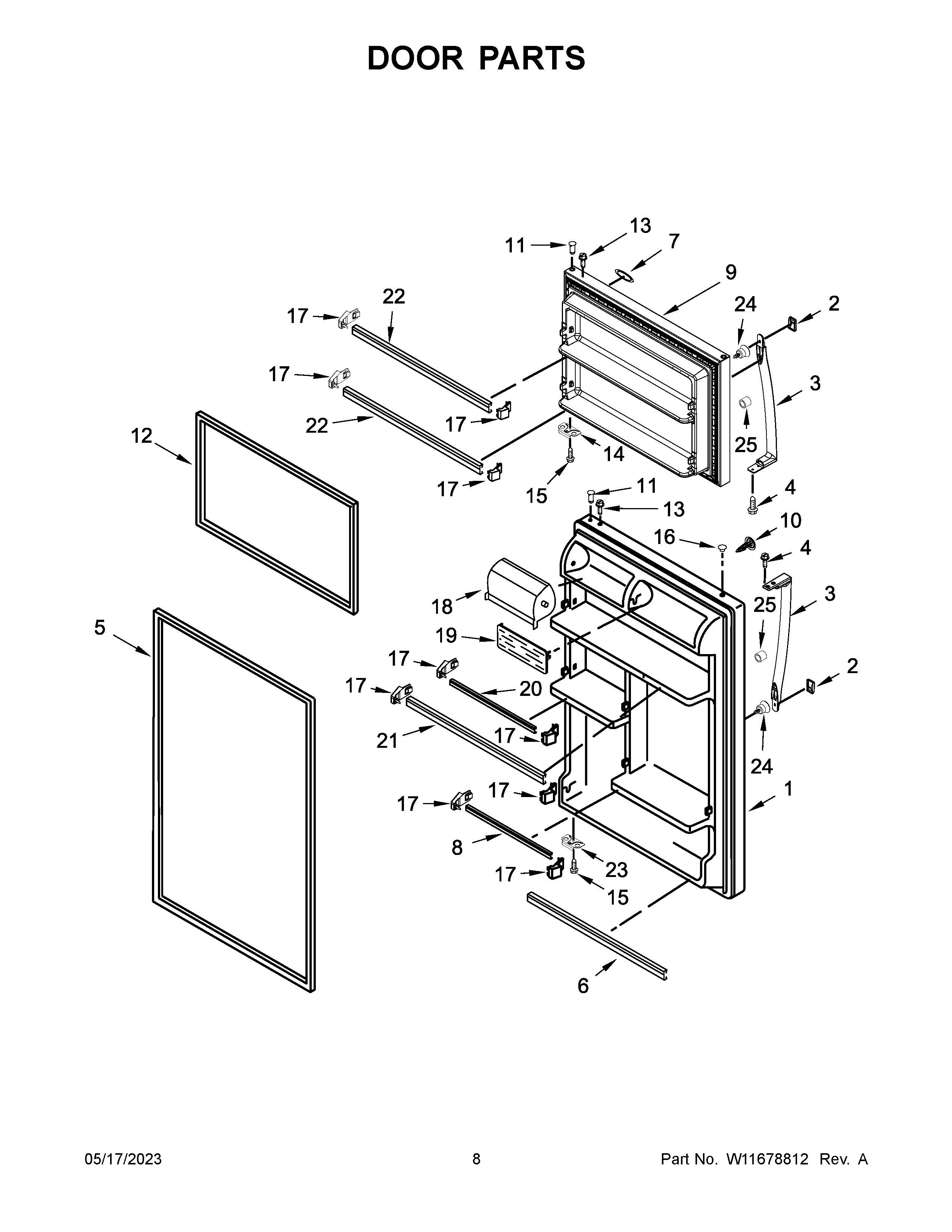

WRT148FZDW05 05 – DOOR PARTS

WRT148FZDW05 05 – DOOR PARTS

Written by

in

WRT148FZDW05 05 – DOOR PARTS

Products

Position	Product
1	LW10636410 Whirlpool Refrigerator FIP Door
1A	LW10668874 Whirlpool Refrigerator Door FIP
1B	LW10638684 Whirlpool Refrigerator DOR-FIP
2B	ENDCAP-HDL
2A	W10838316 Whirlpool Refrigerator Cover
2	WPW10672338 Whirlpool Handle Trim Cap
3B	W10806512 Whirlpool Refrigerator Door Handle Stainless
3A	WPW10672334 Whirlpool Refrigerator Handle
3	WPW10672333 Whirlpool Refrigerator White Door Handle
4	WP489357 Whirlpool Recessed Screw
5B	GASKET-DOR
5	W10838574 Whirlpool Door Gasket
5A	W11240749 Whirlpool Refrigerator Door Gasket
6	W11097831 Whirlpool Refrigerator Door Trim
7	W11178521 Whirlpool Dishwasher Nameplate
8	W11129820 Whirlpool Refrigerator Door Trim
9B	LW10638683 Whirlpool Refrigerator Door Assembly
9A	LW10668875 Whirlpool Refrigerator FIP Door
9	LW10636409 Whirlpool Refrigerator Door Frame Insulation Pad
10	W10830984 Whirlpool Handle Plug
10A	W10830983 Whirlpool Refrigerator Handle Plug
10B	W10830982 Whirlpool Handle Plug
11	WP2183003 Whirlpool Thimble
12B	GASKET DOOR FC GREY
12A	W11229610 Whirlpool Refrigerator Door Gasket
12	W10861499 Whirlpool Door Gasket
13	WP8281206 Whirlpool Refrigerator Screw
14	W11745278 Whirlpool Bracket
15	WP488921 Whirlpool Refrigerator Screw
16	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
16B	PLUG, HINGE SLEEVE (GREY)
16A	WP2212651 Whirlpool Refrigerator Button Plug
17	WP2156003 Whirlpool Refrigerator Door Shelf End Cap
18	WP2218113 Whirlpool Dairy Door
19	WP2188234 Whirlpool Shelf
20	W11106290 Whirlpool Refrigerator Door Trim
21	W11170805 Whirlpool Refrigerator Door Trim
22	W11126055 Whirlpool Refrigerator Door Trim
23	W11402852 Whirlpool Refrigerator Bracket
24	WPW10170540 Whirlpool Screw
25	WPW10511911 Whirlpool Refrigerator Bushing
