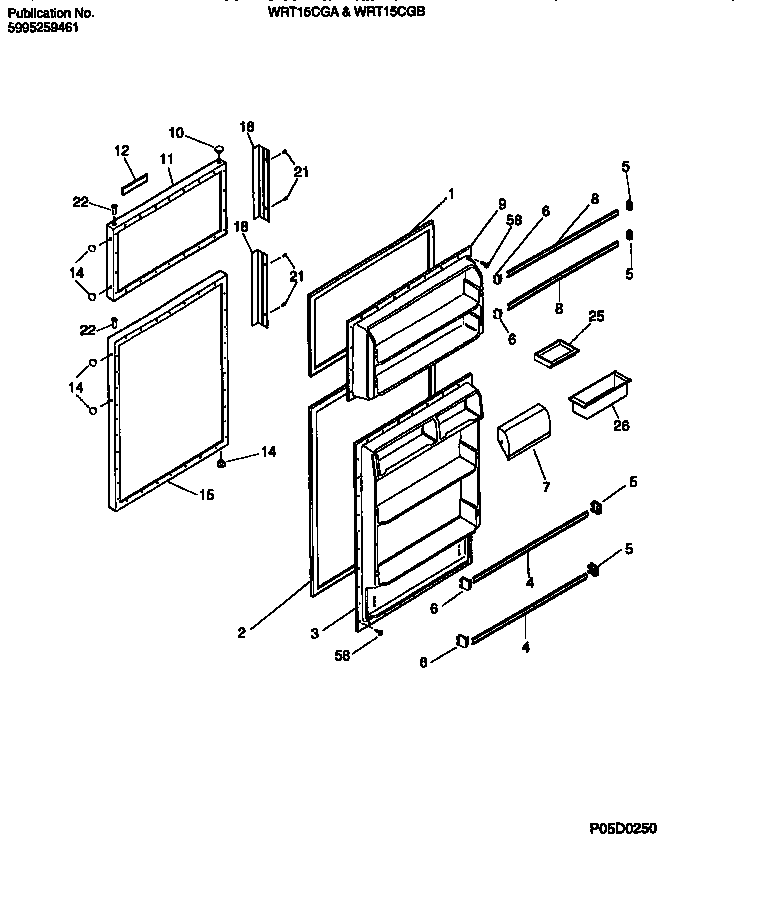

WRT15CGAW1 02 – DOOR SECTION

Products

Position	Product
*17960	INSULATION
1	GASKET – FREEZER DOOR, BROWN, MAGNETIC
2	218730603 Frigidaire Door Gasket
3	WCI 5303207227
4	RACK – DOOR
5	SUPPORT – DOOR RACK, RH
6	SUPPORT – DOOR RACK, LH
7	WCI 5303290741
8	RACK – DOOR
9	WCI 5303207236
10	PLUG-BUTTON, WHITE, HINGE BRG HOLE
11	PANEL – FRZR DOOR, WHITE, W / INSULATION
12	WCI 5303281098
12B	TAPE, ADHESIVE, 60“ LG, FOAM, TRIM/NAMEPLATE, DOUBLE FAC
12A	TAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
14	240494001 Frigidaire Refrigerator Plug Button
15	PANEL-REFR DOOR, WHITE, W / INSULATION
18	WCI 215164904
21	SCREW-HANDLE MTG, 8 CR TRUSS HD, 10(D) X 1/2
22	BEARING-HINGE
26	WCI 3204522
58	5304455651 Frigidaire Refrigerator Screw
