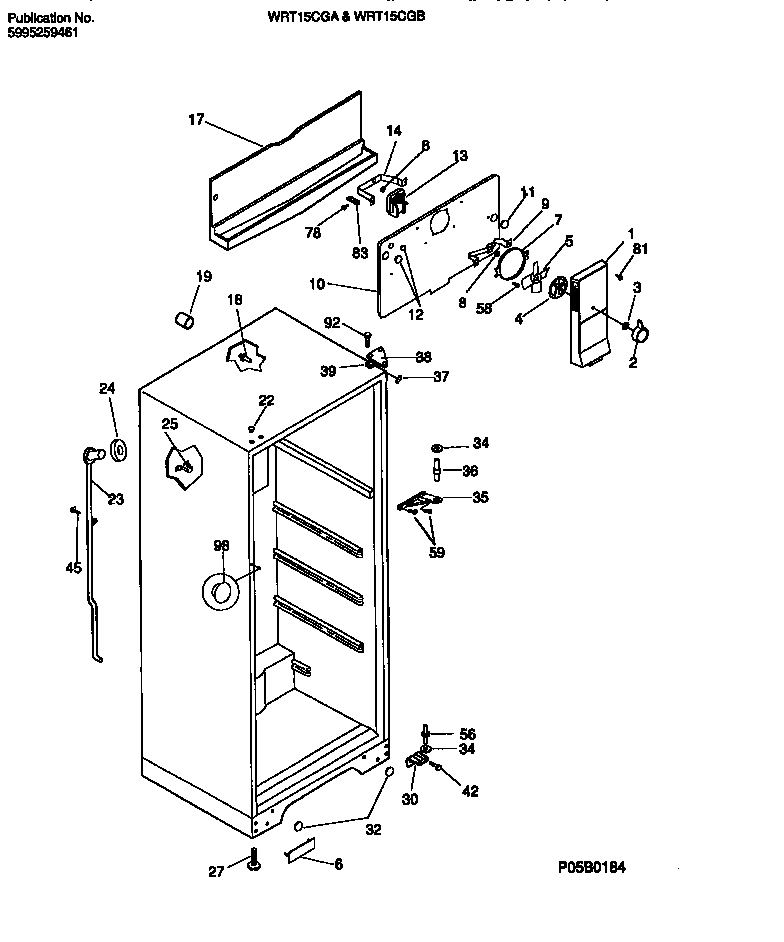

WRT15CGAW1 03 – CABINET W/ FAN ASSEMBLY

WRT15CGAW1 03 – CABINET W/ FAN ASSEMBLY

Written by

in

WRT15CGAW1 03 – CABINET W/ FAN ASSEMBLY

Products

PositionProduct
*17963PLUG, BUTTON, CABINET LINER (NI)
*179625303321319 Frigidaire Refrigerator White Touch Up Paint
*17964SKID PAD, REAR CAB BASE (NI)
1WCI 5303290737
2WCI 3206109
3Nut,push-on
4WCI 3206110
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
6WCI 215846500
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
10WCI 3206119
115303208309 Frigidaire Refrigerator Plug Hole
12AWCI 215079100
12WCI 215079000
135300158289 Frigidaire Evaporator Fan Motor
14BRACKET-MOTOR MTG, REAR
17WCI 3206146
18SUPPORT – EVAP COVER, (2)
19TUBE-RUBBER
22215774901 Frigidaire Refrigerator Button Plug
23WCI 5303269702
24WCI 5303207353
25WCI 215774100
27WCI 2106141
30WCI 3206136
30BSHIM, LOWER HINGE (NI)
30ATAPPING PLATE, LOWER HINGE, (2) (NI)
32WCI 215217702
34WCI 5308000186
35BRACKET-CTR HINGE, LIGHT GREY
36218251300 Frigidaire Refrigerator Center Hinge Pin
37TRIM-CABINET CORNER, WHITE
38WCI 3206100
39SHIM – UPPER HINGE
42241710601 Frigidaire Refrigerator Screw
455304455651 Frigidaire Refrigerator Screw
565303001321 Frigidaire Refrigerator Lower Hinge Pin
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
98215099701 Frigidaire Refrigerator Button Plug
