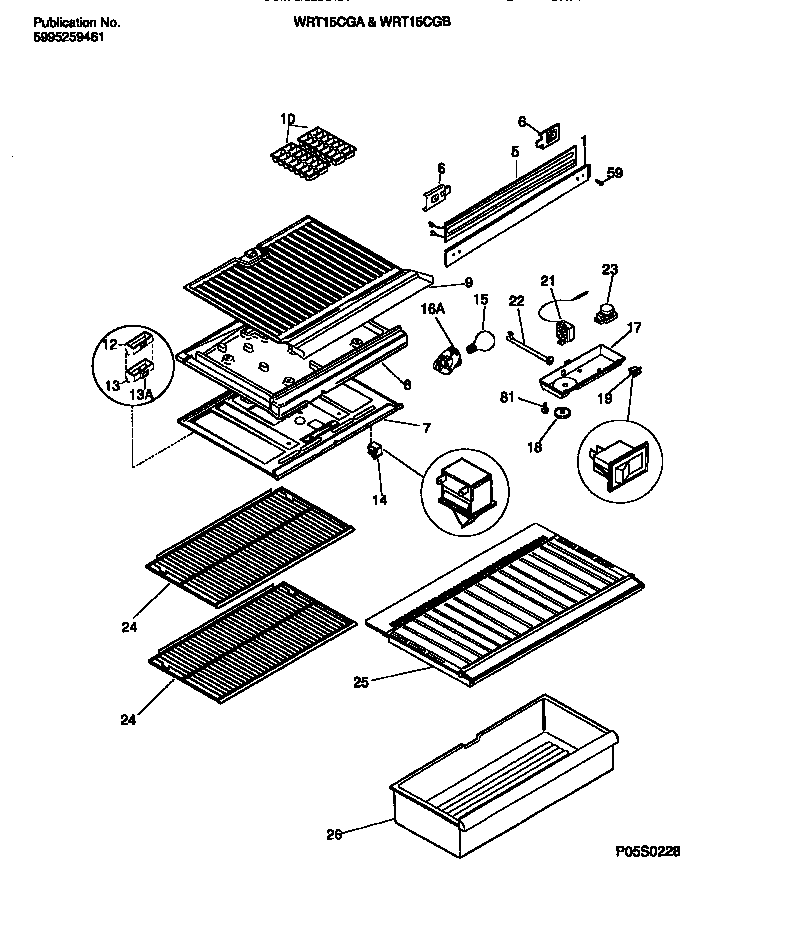

WRT15CGBD1 04 – SHELVES, CONTROLS, DIVIDER, MULLION

WRT15CGBD1 04 – SHELVES, CONTROLS, DIVIDER, MULLION

Written by

in

WRT15CGBD1 04 – SHELVES, CONTROLS, DIVIDER, MULLION

Products

PositionProduct
1WCI 218430711
5WCI 218271301
6WCI 218279800
7AWCI 5303001380
7WCI 3206128
8A3205266 Frigidaire Refrigerator Edge Protector
8BHARNESS-WIRING, CONTROL/DIVIDER (NON-ILLUSTRATED)
8WCI 3206131
9WCI 3206132
10215667501 Frigidaire Refrigerator Ice Tray Primary
12DEFLECTRO, AIR, W/SEAL
12A5303001449 Frigidaire Refrigerator Seal
13AEXTENSION, AIR DEFLECTOR, WITH INSULATION
13WCI 5303001448
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17ANUT, ANCHOR (NI)
17WCI 5303299980
18WCI 5303299979
19SWITCH-ENERGY SAVER, ROCKER
21AWCI 5303001260
21WCI 5303302297
22WCI 3018891
23A5304455649 Frigidaire Refrigerator Screw
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24SHELF, SLIDING, FULL WIDTH, WIRE, REFR SECTION
25WCI 5303276242
265303285386 Frigidaire Refrigerator Crisper Pan
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
815304455650 Frigidaire Refrigerator Screw
