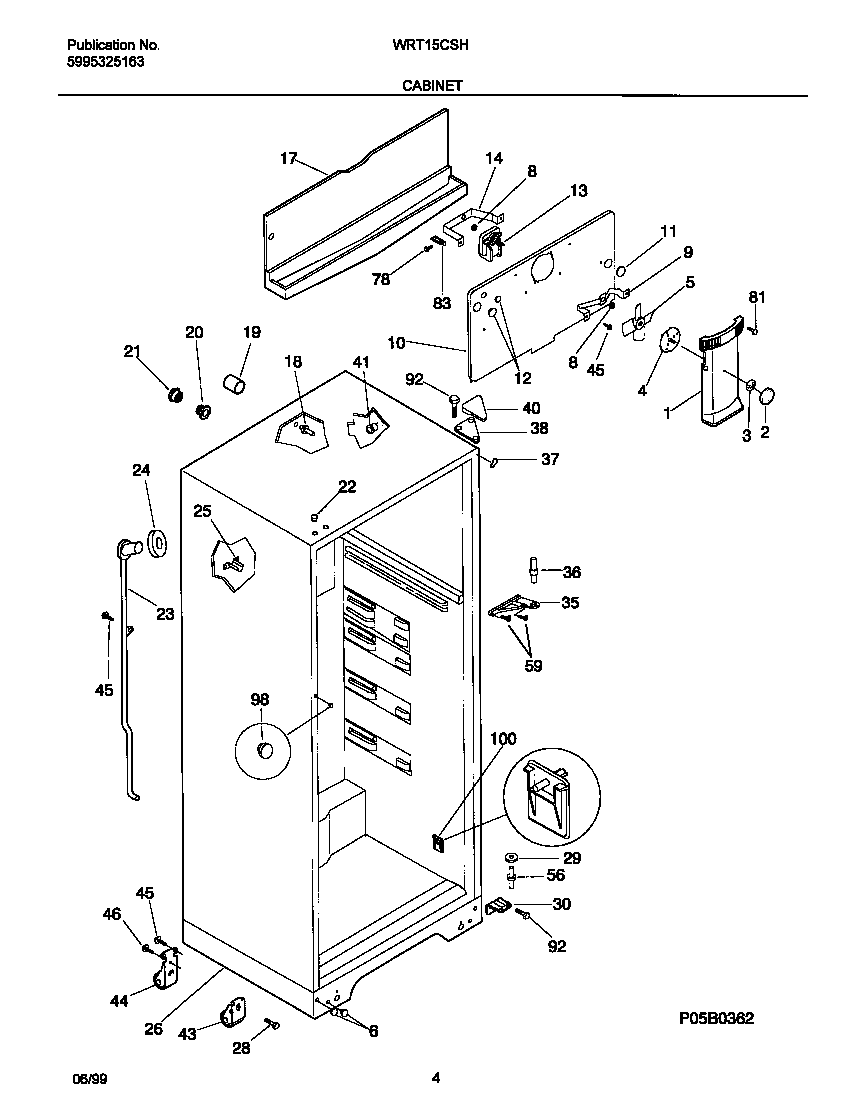

WRT15CSHW0 03 – CABINET

WRT15CSHW0 03 – CABINET

Written by

in

WRT15CSHW0 03 – CABINET

Products

PositionProduct
*550095304500407 Frigidaire Refrigerator Shelf Mounting Grommet
*55008WCI 218605300
*55006NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*55016PLUG, BUTTON, CABINET LINER (NI)
*55010WCI 5308009790
*55007WCI 218605200
*55013WCI 218905701
*550125304455852 Frigidaire Refrigerator Screw
*550115304455651 Frigidaire Refrigerator Screw
*550155303321319 Frigidaire Refrigerator White Touch Up Paint
1WCI 218672501
2WCI 5303307351
3Nut,push-on
4WCI 218722200
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
6PLUG-BUTTON, WHITE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
10WCI 218829701
115303208309 Frigidaire Refrigerator Plug Hole
12AWCI 215079000
12BWCI 215079100
135300158289 Frigidaire Evaporator Fan Motor
14WCI 5303322992
17WCI 218725602
18SUPPORT – EVAP COVER, (2)
19TUBE-RUBBER
20WCI 5303001286
21WCI 5303001287
22215774901 Frigidaire Refrigerator Button Plug
23WCI 5303210377
24WCI 5303207353
25WCI 215774100
26WCI 218605001
28BOLT-ROLLER ADJ, HEX HD, 1/4-28 X 2.750
29WASHER,NYLON ,0.245 ID W/NIBS
30WCI 218220202
35BRACKET-CTR HINGE, LIGHT GREY
36218251300 Frigidaire Refrigerator Center Hinge Pin
37WCI 5303321081
38WCI 3206100
40WCI 3206101
415304509705 Frigidaire Refrigerator Grommet
43WCI 218703001
44WCI 218713600
45SCREW,HEX HD SER WSHR ,8-18 X 0.375
46BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
565303001321 Frigidaire Refrigerator Lower Hinge Pin
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
92241710601 Frigidaire Refrigerator Screw
98215099701 Frigidaire Refrigerator Button Plug
100SUPPORT-PAN COVER
