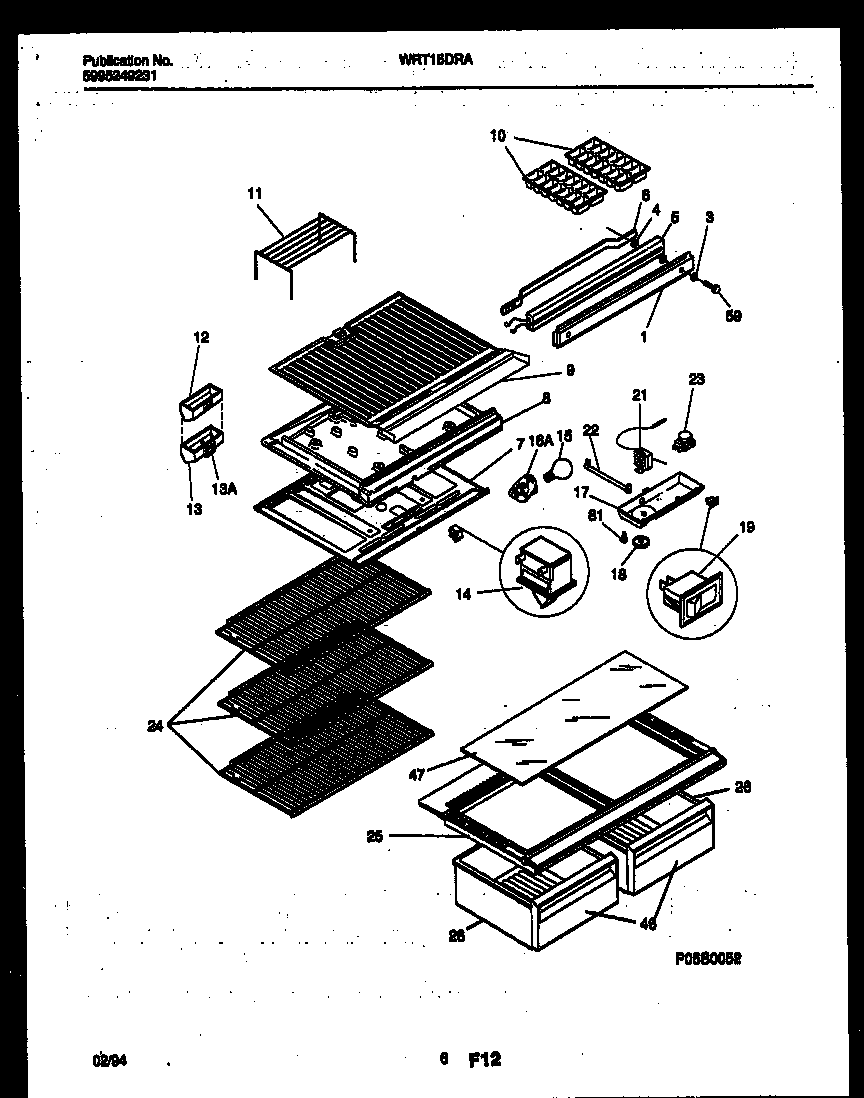

WRT15DRAD0 04 – SHELVES AND SUPPORTS

WRT15DRAD0 04 – SHELVES AND SUPPORTS

Written by

in

WRT15DRAD0 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 3206125
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4WCI 215882100
5WCI 3206120
6WCI 215170801
7WCI 3206128
7AWCI 5303001380
8BHARNESS-WIRING, CONTROL/DIVIDER (NON-ILLUSTRATED)
8A3205266 Frigidaire Refrigerator Edge Protector
8WCI 3206131
9WCI 3206132
10215667501 Frigidaire Refrigerator Ice Tray Primary
11SHELF-FREEZER, “TABLE TYPE“
12DEFLECTRO, AIR, W/SEAL
12A5303001449 Frigidaire Refrigerator Seal
13AEXTENSION, AIR DEFLECTOR, WITH INSULATION
13WCI 5303001448
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17WCI 5303299980
17ANUT, ANCHOR (NI)
18WCI 5303299979
19SWITCH-ENERGY SAVER, ROCKER
21WCI 5303302297
21AWCI 5303001260
22WCI 3018891
23A5304455649 Frigidaire Refrigerator Screw
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24SHELF, SLIDING, FULL WIDTH, WIRE, REFR SECTION
25COVER-CRISPER PAN, WITH BEAM, LESS INSERT
26PAN-CRISPER
46FRONT-CRISPER PAN, (2)
47WCI 5303300077
59WCI 5308012258
815304455650 Frigidaire Refrigerator Screw
