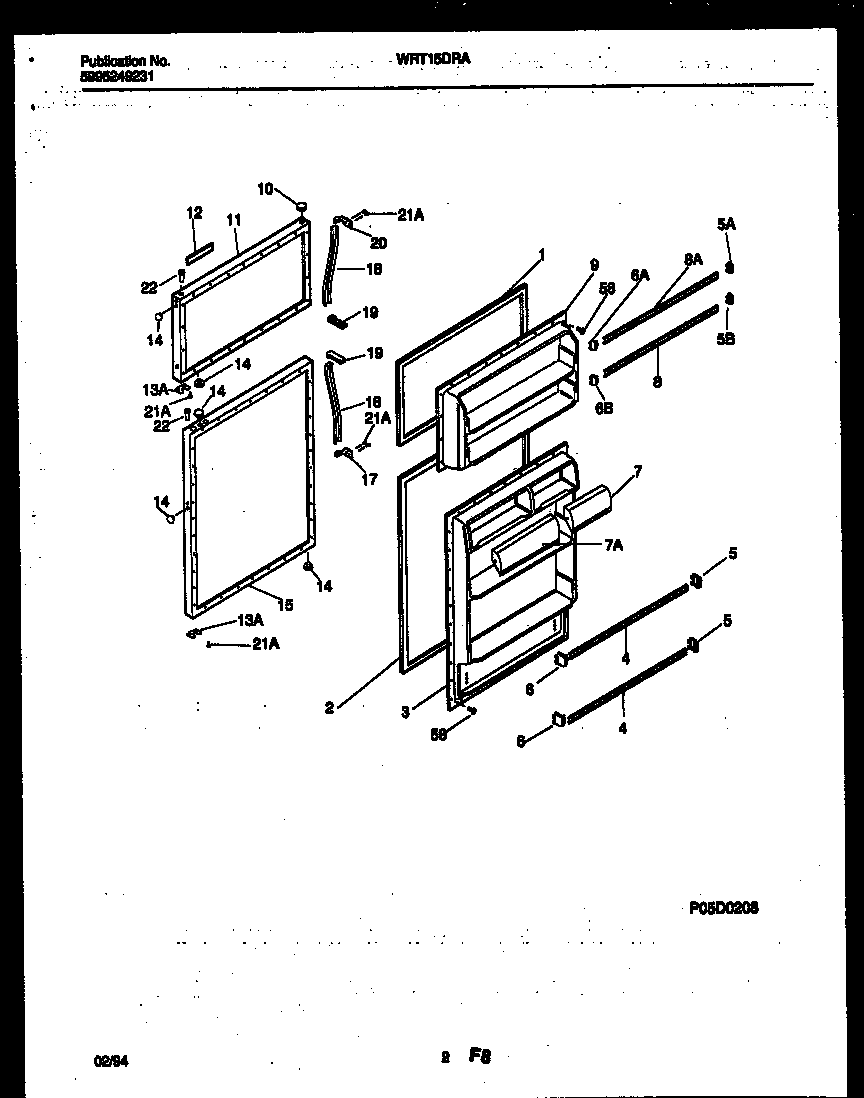

WRT15DRAW0 02 – DOOR PARTS

WRT15DRAW0 02 – DOOR PARTS

Written by

in

WRT15DRAW0 02 – DOOR PARTS

Products

PositionProduct
*85788INSULATION
1GASKET-FRZR DOOR, MAGNETIC, WHITE
2218730603 Frigidaire Door Gasket
3WCI 215645301
5A3206165 Frigidaire Bar Endcap Right Hand
5BSUPPORT-DOOR RACK, EXTENDS 1.06“, RH
5WCI 3206150
6BSUPPORT-DOOR RACK, EXTENDS 1.06“, LH
6WCI 3206151
6A3206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support
7AWCI 5303300074
7BWCI 5303001380
7DOOR-DAIRY
8215366002 Frigidaire Refrigerator Door Wide Rack
8AWCI 5303300071
9WCI 5303276517
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11WCI 5303917156
12WCI 215490701
12ATAPE, ADHESIVE, 60“ LG, FOAM, TRIM/NAMEPLATE, DOUBLE FAC
13AWCI 5308000255
14240494001 Frigidaire Refrigerator Plug Button
15WCI 5303917154
17HANDLE END
18HANDLE-DOOR
18BWCI 215954305
18AINSERT-HANDLE GRIP, ALMOND (NON-ILLUSTRATED)
19WCI 215365000
20HANDLE END
21AWCI 5308011745
22BEARING-HINGE
585304455651 Frigidaire Refrigerator Screw
