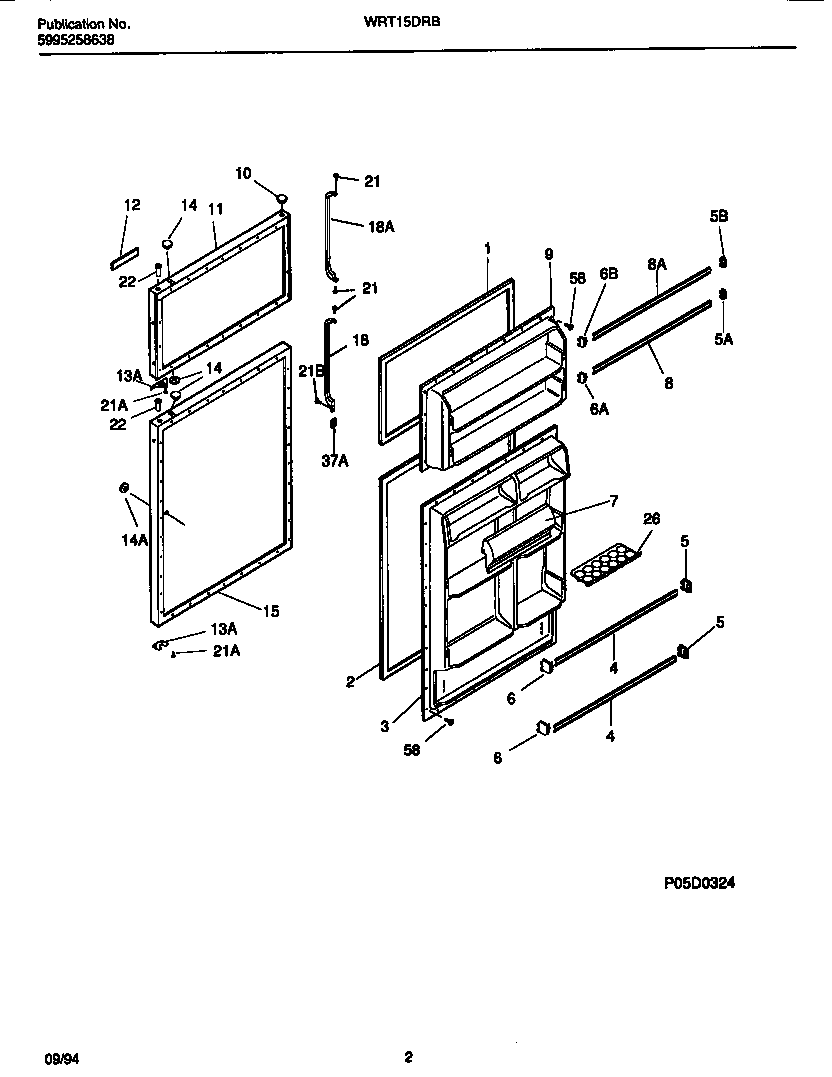

WRT15DRBW1 02 – DOOR SECTION

WRT15DRBW1 02 – DOOR SECTION

Written by

in

WRT15DRBW1 02 – DOOR SECTION

Products

PositionProduct
*42920INSULATION
1GASKET-FRZR DOOR, MAGNETIC, WHITE
2218730603 Frigidaire Door Gasket
3WCI 5303281227
5WCI 3206150
5ASUPPORT-DOOR RACK, EXTENDS 1.06“, RH
5B3206165 Frigidaire Bar Endcap Right Hand
6WCI 3206151
6ASUPPORT-DOOR RACK, EXTENDS 1.06“, LH
6B3206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support
7WCI 5303300053
8AWCI 5303300071
8215366002 Frigidaire Refrigerator Door Wide Rack
9WCI 5303276517
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11WCI 5303917305
12WCI 215490701
12CTAPE, ADHESIVE, 60“ LG, FOAM, TRIM/NAMEPLATE, DOUBLE FAC
12BTAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
12AWCI 215220301
13AWCI 218249001
13WCI 5308000255
14A240494001 Frigidaire Refrigerator Plug Button
15WCI 5303917377
18AWCI 215915537
18WCI 215915539
21B154518001 Frigidaire Refrigerator Screw
21SCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
21A218252201 Frigidaire Refrigerator Screw
22ABEARING-HINGE
22BEARING-HINGE
26215817806 Frigidaire Refrigerator Egg Tray
37AWCI 215480205
585304455651 Frigidaire Refrigerator Screw
