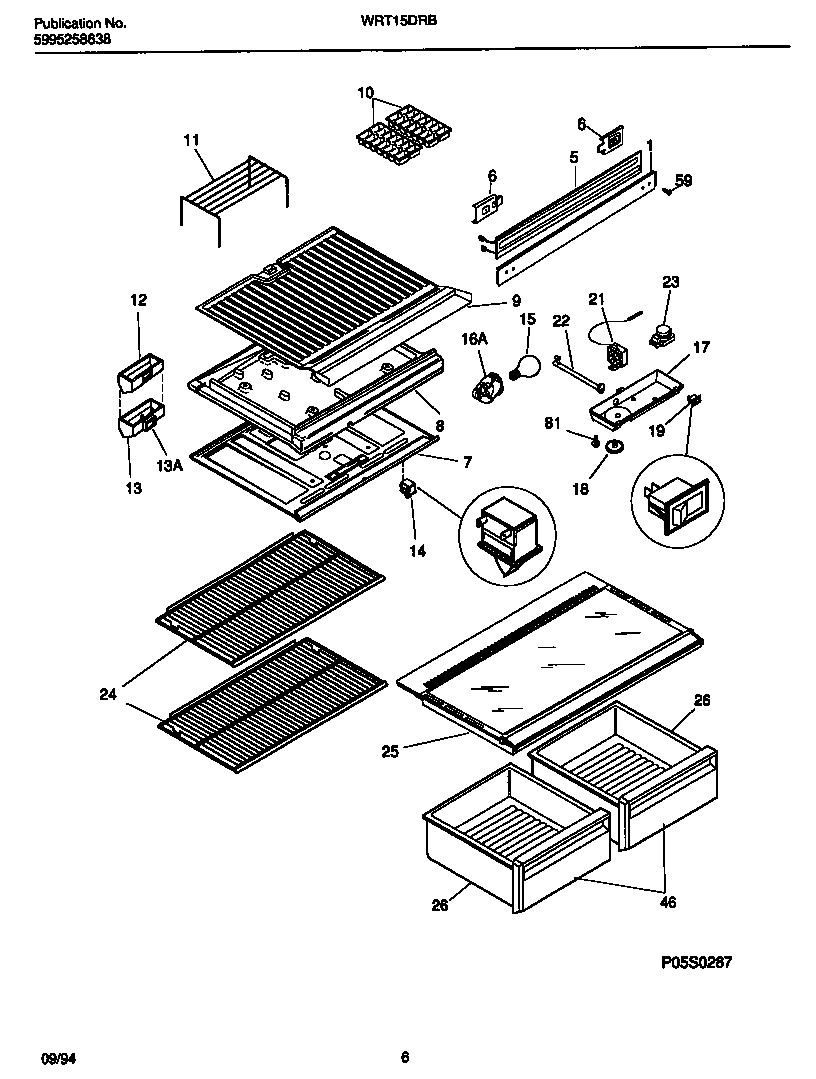

WRT15DRBW1 04 – SHELVES, CONTROLS, DIVIDER, MULLION

WRT15DRBW1 04 – SHELVES, CONTROLS, DIVIDER, MULLION

Written by

in

WRT15DRBW1 04 – SHELVES, CONTROLS, DIVIDER, MULLION

Products

PositionProduct
1WCI 218222101
5WCI 218271401
6WCI 218279800
7AWCI 5303001380
7WCI 3206128
8A3205266 Frigidaire Refrigerator Edge Protector
8WCI 3206131
8BHARNESS-WIRING, CONTROL/DIVIDER (NON-ILLUSTRATED)
9WCI 3206132
10215667501 Frigidaire Refrigerator Ice Tray Primary
10AWCI 3018945
11SHELF-FREEZER, “TABLE TYPE“
12DEFLECTRO, AIR, W/SEAL
12A5303001449 Frigidaire Refrigerator Seal
13WCI 5303001448
13AEXTENSION, AIR DEFLECTOR, WITH INSULATION
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17ANUT, ANCHOR (NI)
17WCI 5303299980
18WCI 5303299979
19SWITCH-ENERGY SAVER, ROCKER
21WCI 5303302297
21AWCI 5303001260
22WCI 3018891
23A5304455649 Frigidaire Refrigerator Screw
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24SHELF, SLIDING, FULL WIDTH, WIRE, REFR SECTION
25WCI 5303283113
26PAN-CRISPER
46WCI 5303304706
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
815304455650 Frigidaire Refrigerator Screw
