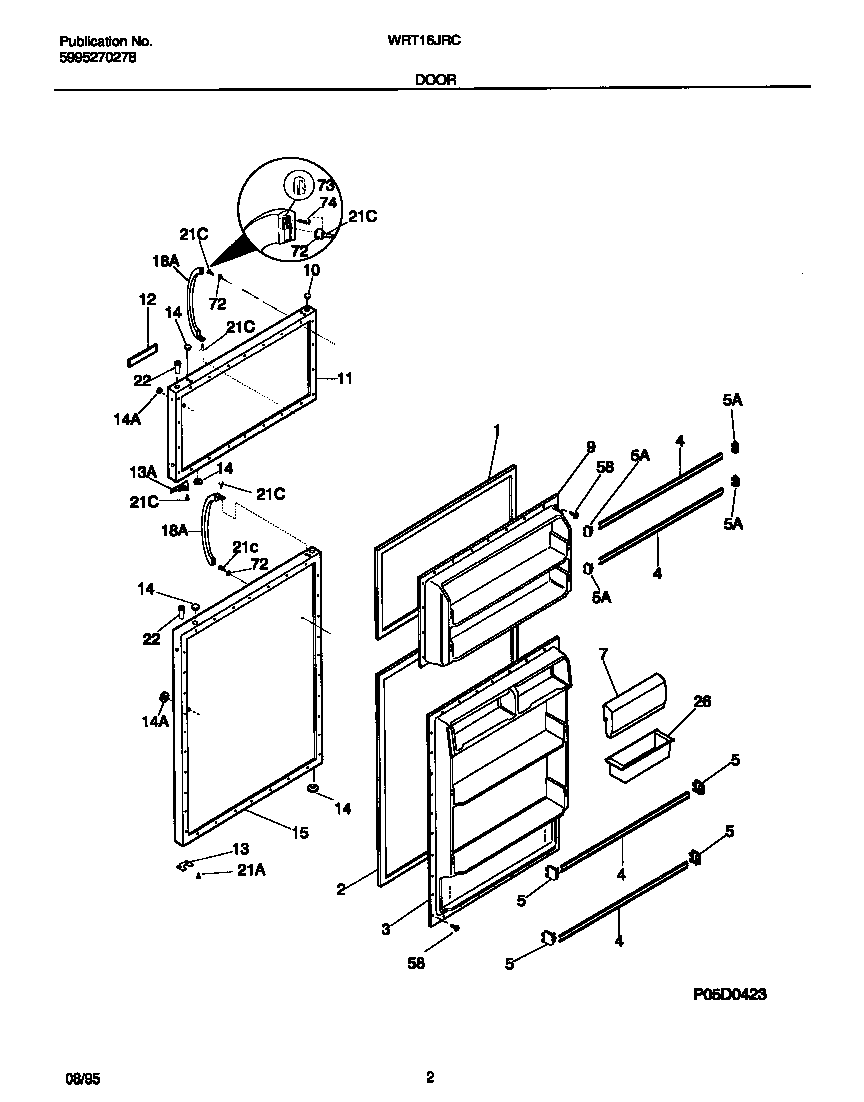

WRT16JRCW0 02 – DOOR

WRT16JRCW0 02 – DOOR

Written by

in

WRT16JRCW0 02 – DOOR

Products

PositionProduct
*40840INSULATION
1GASKET-FRZR DOOR, WHITE, MAGNETIC
2218730603 Frigidaire Door Gasket
3WCI 218359001
4215366002 Frigidaire Refrigerator Door Wide Rack
5A215473602 Frigidaire Refrigerator White Left or Right Door Shelf End Cap
5215267701 Frigidaire Refrigerator White Door Shelf Endcap Left or Right
7WCI 218287813
9WCI 218358801
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11WCI 5303917598
12WCI 218409401
12AWCI 215220337
12BMAGNET-NAMEPLATE (NOT ILLUSTRATED)
13AWCI 218249001
13DOOR STOP, REFR SECTION
14A240494001 Frigidaire Refrigerator Plug Button
15WCI 5303917596
18AWHITE DOOR HANDLE
18A218428121 Frigidaire Refrigerator Door Handle, Gray
21C218252201 Frigidaire Refrigerator Screw
21ASCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
22BEARING-HINGE
26WCI 3204522
585304455651 Frigidaire Refrigerator Screw
72WCI 218397000
73218396700 Frigidaire Door Handle Mounting Block
74215503203 Frigidaire Refrigerator Door Handle Screw
