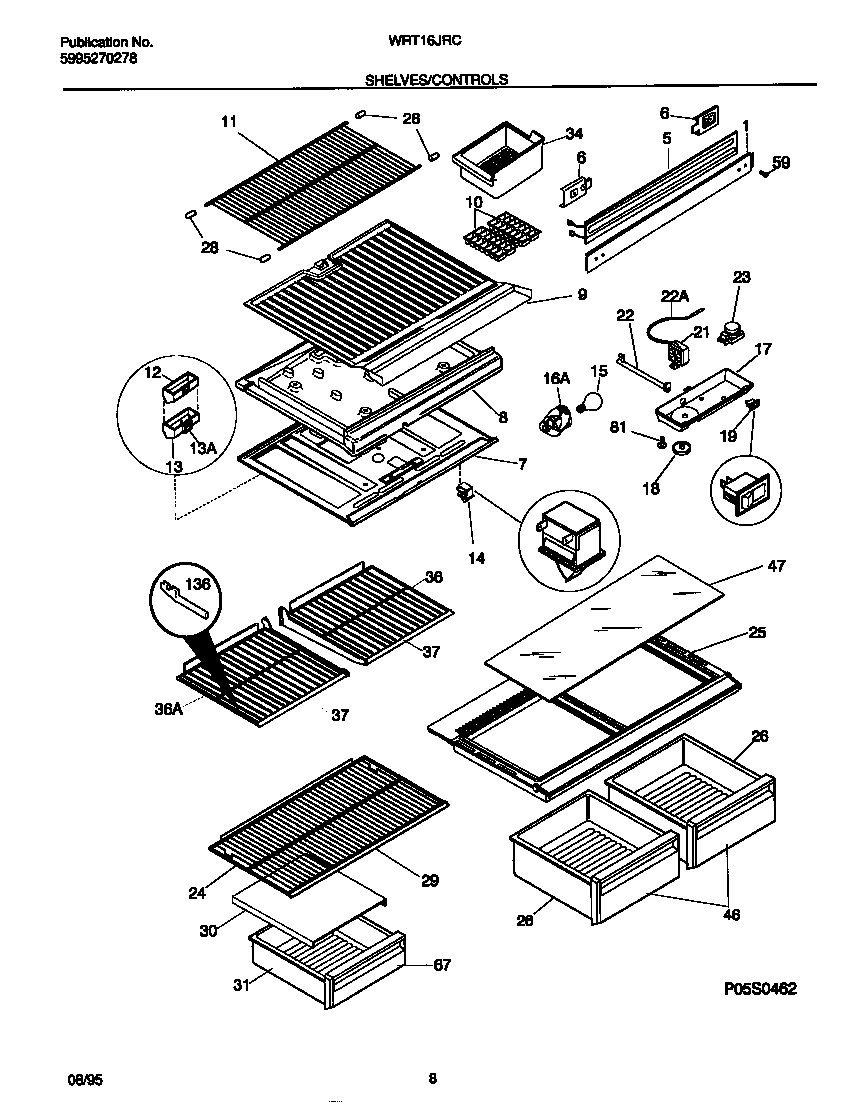

WRT16JRCY0 04 – SHELVES/CONTROLSadmin2025-04-26T08:45:09+00:00WRT16JRCY0 04 – SHELVES/CONTROLS
Products
| Position | Product |
|---|
| 1 | WCI 218252502 |
| 5 | WCI 218271401 |
| 6 | WCI 218279800 |
| 7 | WCI 3206185 |
| 7A | WCI 5303001380 |
| 8A | WCI 3018900 |
| 8B | 3205266 Frigidaire Refrigerator Edge Protector |
| 8 | WCI 3206186 |
| 9 | WCI 3206187 |
| 10 | 215667501 Frigidaire Refrigerator Ice Tray Primary |
| 11A | SPACER, FRZR SHELF (NOT ILLUSTRATED) |
| 11 | SHELF-FREEZER, FIXED/FLAT, FULL WIDTH, WIRE |
| 12 | DEFLECTRO, AIR, W/SEAL |
| 12A | 5303001449 Frigidaire Refrigerator Seal |
| 13A | EXTENSION, AIR DEFLECTOR, WITH INSULATION |
| 13 | WCI 5303001448 |
| 14 | 5309918806 Frigidaire Refrigerator Light Switch Door |
| 15 | 316538904 Frigidaire Oven Lamp Light |
| 16A | 218906802 Frigidaire Light Lamp Socket |
| 17 | WCI 5303307349 |
| 17A | NUT, ANCHOR (NI) |
| 18 | WCI 5303307352 |
| 19 | SWITCH-ENERGY SAVER, ROCKER |
| 21A | WCI 5303001260 |
| 21 | WCI 5303305486 |
| 22 | WCI 3018891 |
| 22A | TUBE |
| 23A | 215846602 Frigidaire Refrigerator 8-Hour Defrost Timer |
| 23A | 5304455649 Frigidaire Refrigerator Screw |
| 24 | WCI 218272501 |
| 25 | WCI 218314102 |
| 26 | PAN - CRISPER |
| 28 | END CAP-SHELF,PROTECTOR |
| 29 | WCI 218366102 |
| 30 | WCI 5303285319 |
| 31 | WCI 3206209 |
| 34 | 5303212918 Frigidaire Refrigerator Cont |
| 36A | SHELF, HALF-CANTILEVER, HALF WIDTH, WIRE, LH, RAIL ON RS |
| 36 | SHELF, HALF-CANTILEVER, HALF WIDTH, WIRE, RH, RAIL ON LS |
| 37 | WCI 218366121 |
| 46 | WCI 5303310895 |
| 47 | WCI 218390557 |
| 59 | 240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4 |
| 67 | WCI 5303311305 |
| 81 | 5304455650 Frigidaire Refrigerator Screw |
| 136 | WCI 218553900 |
