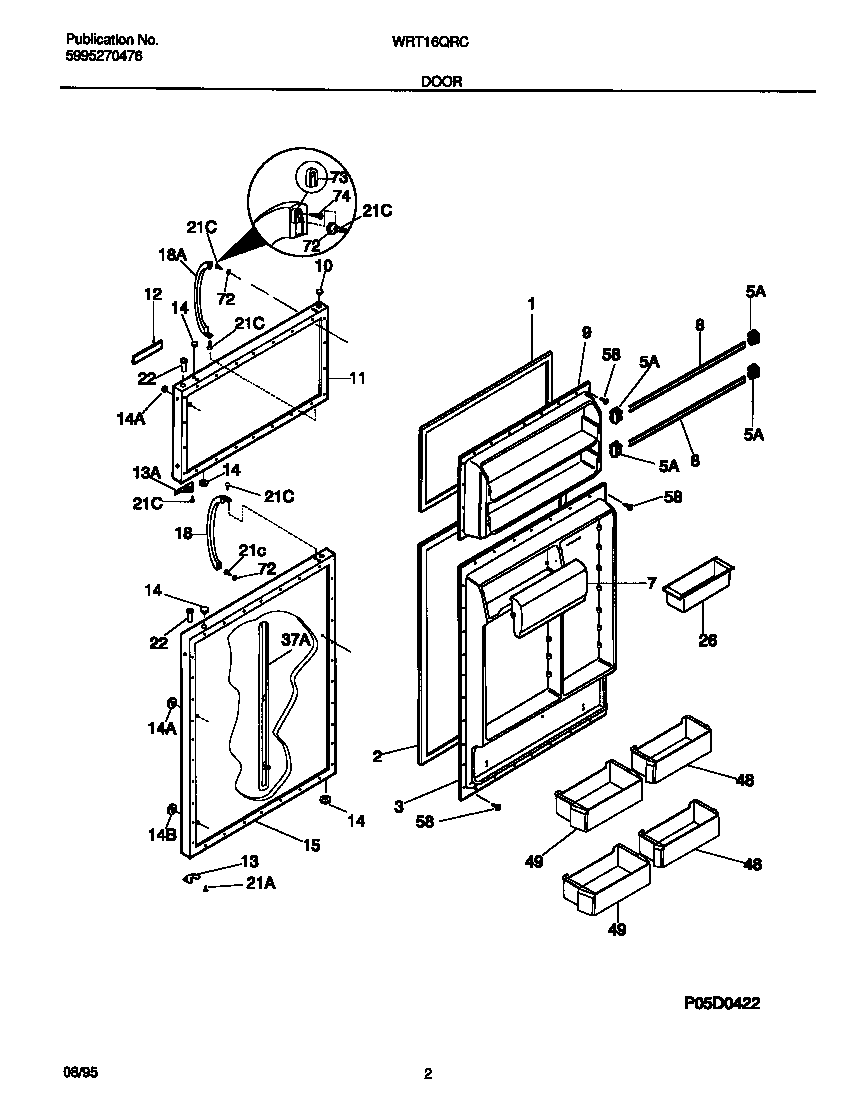

WRT16QRCD0 02 – DOOR

WRT16QRCD0 02 – DOOR

Written by

in

WRT16QRCD0 02 – DOOR

Products

PositionProduct
*86680INSULATION
1GASKET-FRZR DOOR, ALMOND, MAGNETIC
2218730603 Frigidaire Door Gasket
3WCI 218359301
5A215473602 Frigidaire Refrigerator White Left or Right Door Shelf End Cap
7WCI 218287813
8215366002 Frigidaire Refrigerator Door Wide Rack
9WCI 218358801
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11WCI 5303917603
12AWCI 215220339
12WCI 218409402
12BMAGNET-NAMEPLATE (NOT ILLUSTRATED)
13DOOR STOP, REFR SECTION
13AWCI 218249002
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
14AWCI 215352211
14BWCI 218074002
15WCI 5303917601
18WCI 218428105
18WCI 218428108
18A218428121 Frigidaire Refrigerator Door Handle, Gray
18AWCI 218428102
21C218252201 Frigidaire Refrigerator Screw
21ASCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
22BEARING-HINGE
26WCI 3204522
37AWCI 218397705
37CWCI 215940700
37BWCI 218397702
37DWCI 215782300
48WCI 218286005
49WCI 5303309864
585304455651 Frigidaire Refrigerator Screw
72WCI 218397000
73218396700 Frigidaire Door Handle Mounting Block
74215503203 Frigidaire Refrigerator Door Handle Screw
