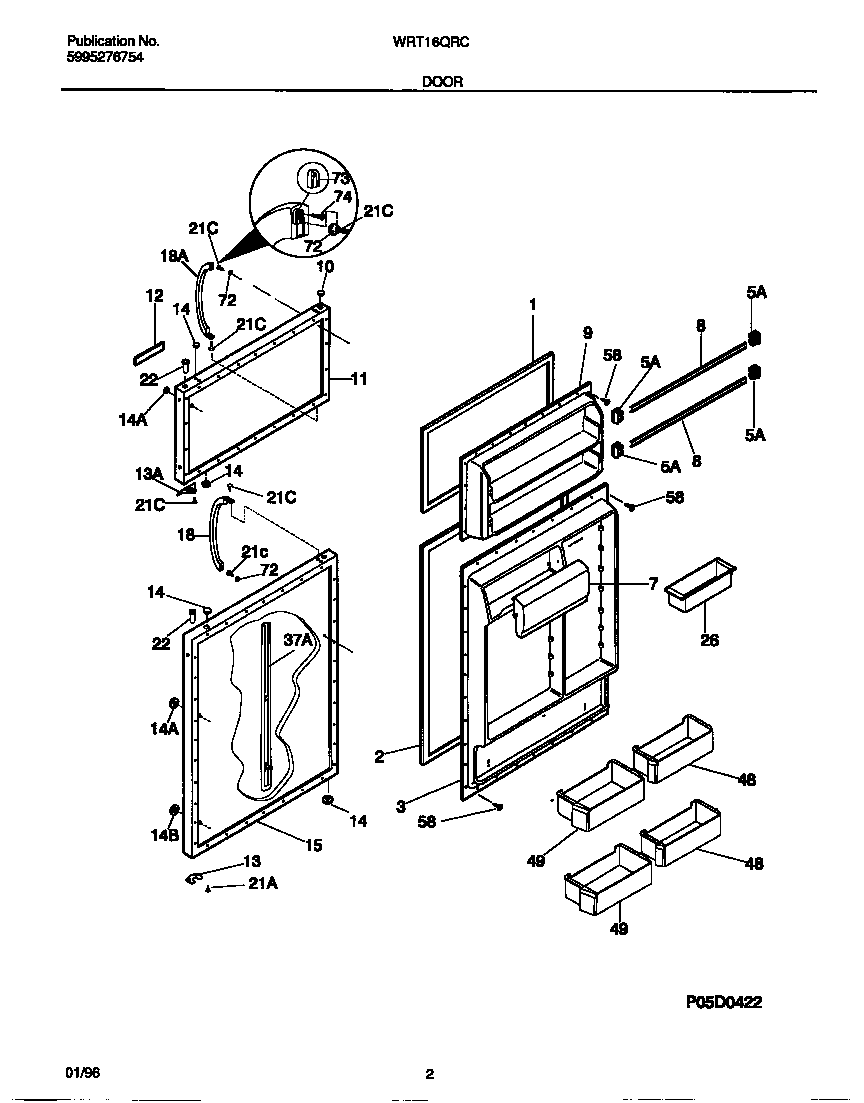

WRT16QRCD1 02 – DOOR

WRT16QRCD1 02 – DOOR

Written by

in

WRT16QRCD1 02 – DOOR

Products

PositionProduct
*45680INSULATION
1GASKET-FRZR DOOR, ALMOND, MAGNETIC
2218730603 Frigidaire Door Gasket
3WCI 218359301
5215473602 Frigidaire Refrigerator White Left or Right Door Shelf End Cap
7WCI 218287813
8215366002 Frigidaire Refrigerator Door Wide Rack
9WCI 218358801
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11WCI 5303917603
12EMAGNET-NAMEPLATE (NOT ILLUSTRATED)
12AWCI 218409402
12CWCI 215220339
12BWCI 218409401
12DWCI 215220337
13DOOR STOP, REFR SECTION
13WCI 218249002
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
14AWCI 218074001
14WCI 215352211
14BWCI 218074002
15WCI 5303917601
18WCI 218428105
18WCI 218428102
21218252201 Frigidaire Refrigerator Screw
21SCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
22BEARING-HINGE
26WCI 3204522
37AWCI 215782300
37BWCI 215940700
37WCI 218397702
48WCI 218286005
49WCI 5303309864
58216858001 Frigidaire Refrigerator Screw
72WCI 218397000
73218396700 Frigidaire Door Handle Mounting Block
74215503203 Frigidaire Refrigerator Door Handle Screw
