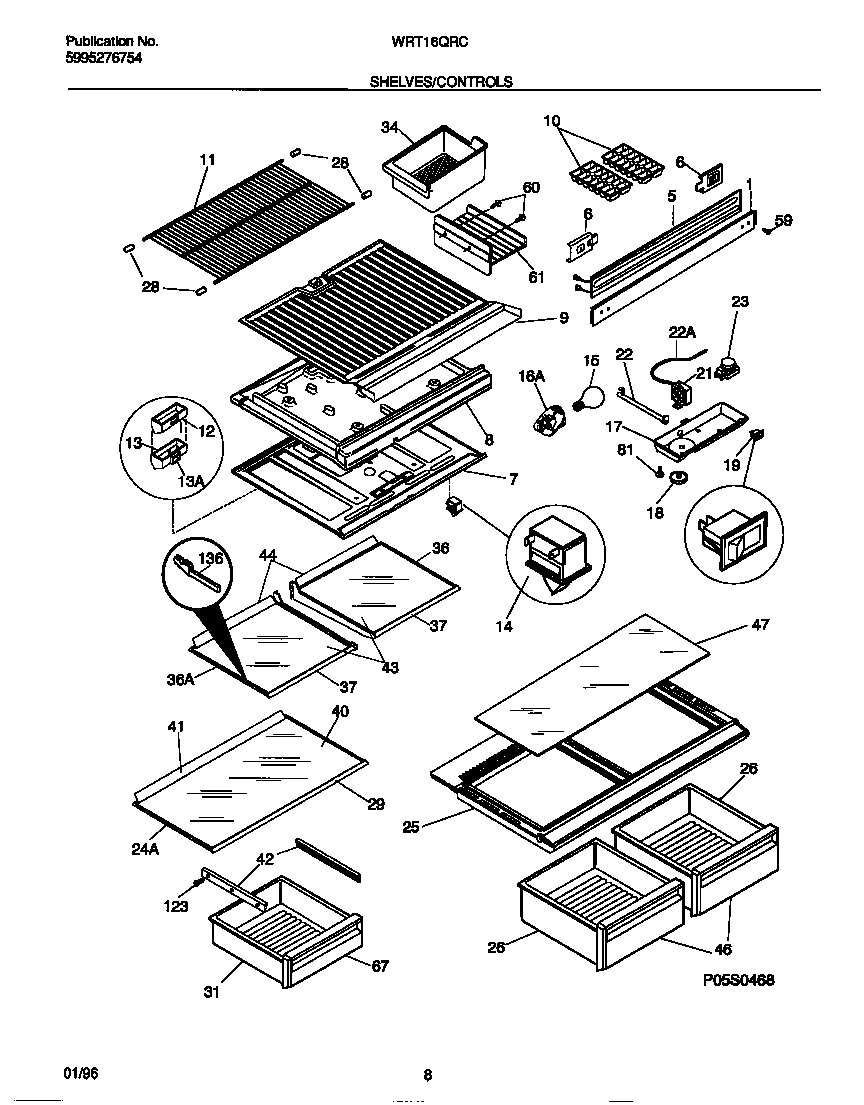

WRT16QRCD1 04 – SHELVES/CONTROLS

Products

Position	Product
1	WCI 218252502
5	WCI 218271401
6	WCI 218279800
7B	WCI 5303001380
7A	WCI 3206185
8B	3205266 Frigidaire Refrigerator Edge Protector
8A	WCI 3206186
8C	WCI 3018900
9	WCI 3206187
10	215667501 Frigidaire Refrigerator Ice Tray Primary
11B	SPACER, FRZR SHELF (NOT ILLUSTRATED)
11A	SHELF-FREEZER, FIXED/FLAT, FULL WIDTH, WIRE
12B	5303001449 Frigidaire Refrigerator Seal
12A	DEFLECTRO, AIR, W/SEAL
13	WCI 5303001448
13	EXTENSION, AIR DEFLECTOR, WITH INSULATION
14	5309918806 Frigidaire Refrigerator Light Switch Door
15	316538904 Frigidaire Oven Lamp Light
16	218906802 Frigidaire Light Lamp Socket
17B	NUT, ANCHOR (NI)
17A	WCI 5303307349
18	WCI 5303311079
19	SWITCH-ENERGY SAVER, ROCKER
21B	WCI 5303001260
21A	WCI 5303305486
22	TUBE
22	WCI 3018891
23B	5304455649 Frigidaire Refrigerator Screw
23A	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24	WCI 218276002
25	WCI 218314102
26	PAN - CRISPER
28	END CAP-SHELF,PROTECTOR
29	WCI 215919455
31	WCI 3206209
34	5303212918 Frigidaire Refrigerator Cont
36	WCI 218310302
36	WCI 218310301
37	WCI 215919454
40	WCI 218390535
41	WCI 215919839
42A	WCI 5303305309
42B	WCI 5303305310
43	WCI 218390534
44	WCI 215919842
46	WCI 5303310895
47	WCI 218390557
59	240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
60	5304455852 Frigidaire Refrigerator Screw
61	WCI 215781501
67	WCI 5303311305
81	5304455650 Frigidaire Refrigerator Screw
123	215005101 Frigidaire Refrigerator Screw
136	WCI 218553900
