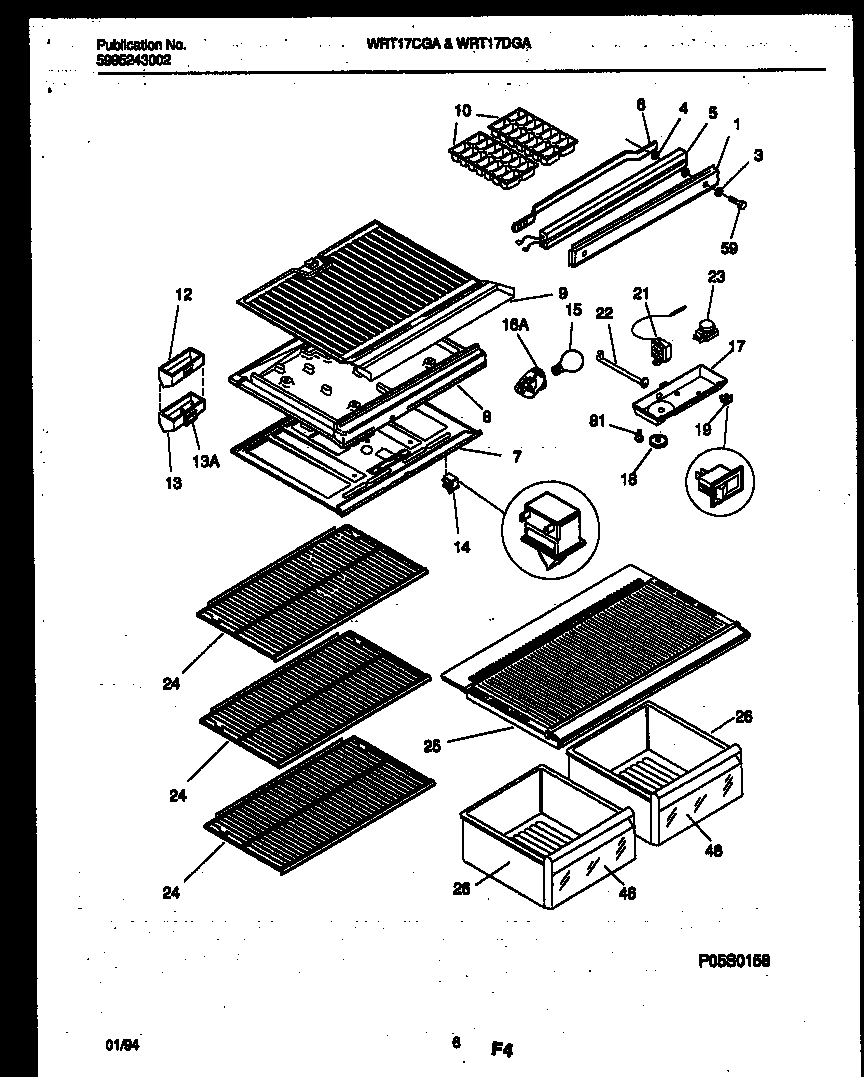

WRT17CGAY0 04 – SHELVES AND SUPPORTS

WRT17CGAY0 04 – SHELVES AND SUPPORTS

Written by

in

WRT17CGAY0 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 3206125
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4SPACER-MULLION MTG, STEEL
5WCI 3206120
6WCI 215170801
7AWCI 5303001380
7WCI 3206185
8B3205266 Frigidaire Refrigerator Edge Protector
8WCI 3206186
8AWCI 3018900
9WCI 3206187
10215667501 Frigidaire Refrigerator Ice Tray Primary
12DEFLECTRO, AIR, W/SEAL
12A5303001449 Frigidaire Refrigerator Seal
13WCI 5303001448
13AEXTENSION, AIR DEFLECTOR, WITH INSULATION
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17WCI 5303295733
17ANUT, ANCHOR (NI)
18WCI 5303275221
19WCI 5303207249
21AWCI 5303001260
21WCI 5303018894
22WCI 3018891
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
23A5304455649 Frigidaire Refrigerator Screw
24SHELF, SLIDING, WIRE, REFR SECTION
25WCI 215379500
26PAN – CRISPER
46WCI 5303208183
59WCI 5308012258
815304455650 Frigidaire Refrigerator Screw
