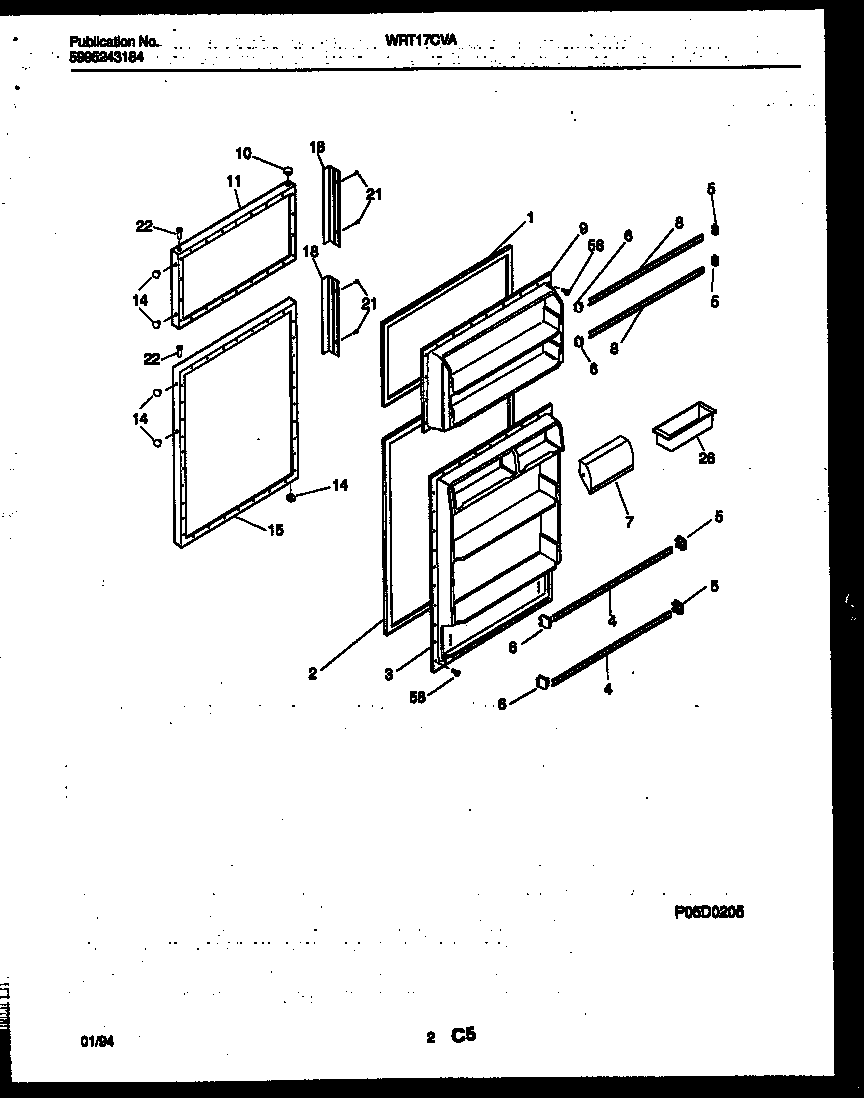

WRT17CVAD0 02 – DOOR PARTSadmin2025-04-26T08:45:40+00:00WRT17CVAD0 02 – DOOR PARTS
Products
| Position | Product |
|---|
| *85417 | INSULATION |
| 1 | GASKET, FRZR DOOR, BROWN, MAGNETIC |
| 2 | 218730603 Frigidaire Door Gasket |
| 3 | WCI 5303207227 |
| 4 | RACK - DOOR |
| 5 | SUPPORT - DOOR RACK, RH |
| 6 | SUPPORT - DOOR RACK, LH |
| 7 | WCI 5303290741 |
| 8 | RACK - DOOR |
| 9 | WCI 5303207236 |
| 10 | PLUG-BUTTON, ALMOND, HINGE BRG HOLE |
| 11 | PANEL - FRZR DOOR, ALMOND, W / INSULATION |
| 14 | PLUG-BUTTON, ALMOND, HANDLE/DR STOP |
| 15 | PANEL-REFR DOOR, ALMOND, W / INSULATION |
| 18 | WCI 215164904 |
| 21 | SCREW-HANDLE MTG, 8 CR TRUSS HD, 10(D) X 1/2 |
| 22 | BEARING-HINGE |
| 26 | WCI 3204522 |
| 58 | 5304455651 Frigidaire Refrigerator Screw |
