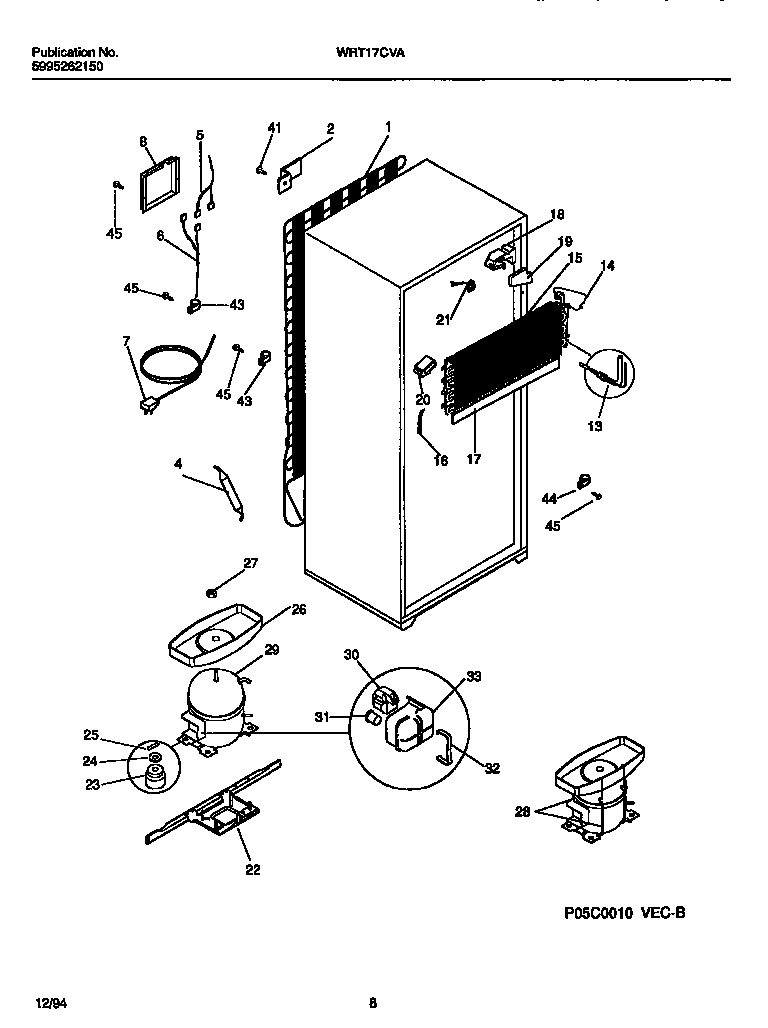

WRT17CVAD2 05 – COOLING SYSTEMadmin2025-04-26T08:45:37+00:00WRT17CVAD2 05 – COOLING SYSTEM
Products
| Position | Product |
|---|
| 1 | 5303017691 Frigidaire Refrigerator Spacer-Tube |
| 1 | WCI 218174000 |
| 2 | BRACKET, MOUNTIN, CONDENSER, (4) |
| 4 | 5303305677 Frigidaire Replacement Filter Dryer Filters |
| 5 | WCI 215422600 |
| 6 | WCI 5303299397 |
| 7 | WCI 5303294039 |
| 8 | CONNECTOR PLUG, RH (NI) |
| 8 | WCI 5303294036 |
| 8 | BRACKET, GROUNDING (NI) |
| 8 | WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI) |
| 8 | NUT, 8-32 HEX, (2) (NI) |
| 13 | WCI 215133500 |
| 14 | WCI 5303210355 |
| 15 | EVAPORATOR |
| 16 | 5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap |
| 17 | INSULATOR-EVAP, PLASTIC |
| 18 | INSULATION BLOCK, RH |
| 19 | INSULATION PLUG, RH |
| 20 | INSULATION BLOCK, LH |
| 21 | 5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit |
| 22 | WCI 3206126 |
| 23 | 218513300 Frigidaire Refrigerator Compressor Mount Grommet |
| 24 | WASHER-COMPR MTG |
| 25 | CLIP - COMPRESSOR MTG |
| 26 | PAN-DEFROST DRAIN, ORIG/SVCE COMPR |
| 26 | 5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction |
| 27 | Nut,lock `1/4-20 ,drain pan mtg |
| 28 | PAN RETAINER KIT, SERVICE |
| 29 | WCI 5303916804 |
| 30 | WCI 5303211376 |
| 31 | WCI 5303270973 |
| 32 | 5303006412 Frigidaire Refrigerator Cover Mounting Strap |
| 41 | 5308000039 Frigidaire Refrigerator Screw |
| 43 | WCI 5303207327 |
| 43 | 5303001199 Frigidaire Refrigerator Wiring Harness Clamp |
| 44 | 5308000133 Frigidaire Refrigerator Clamp |
| 45 | 5304455852 Frigidaire Refrigerator Screw |
| 45A | HOT TUBE REPAIR KIT, SERVICE (NI) |
| 45 | WCI 5303207199 |
| 45 | 5304455651 Frigidaire Refrigerator Screw |
