WRT17CVAW2 05 – COOLING SYSTEM

WRT17CVAW2 05 – COOLING SYSTEM

Written by

in

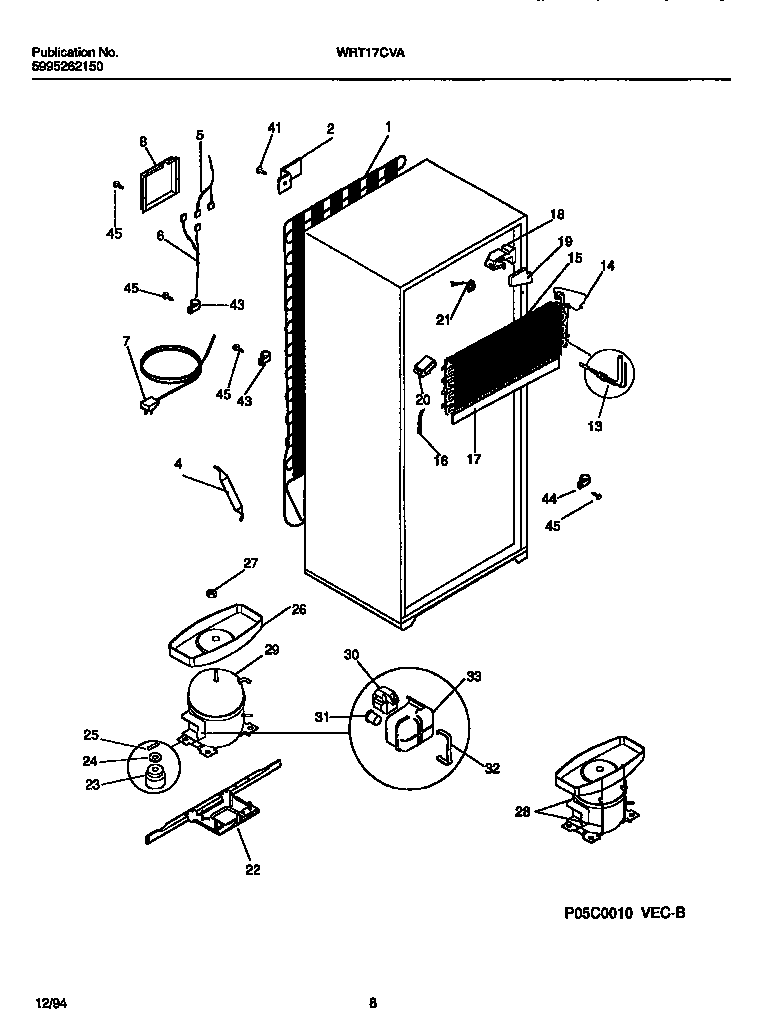

WRT17CVAW2 05 – COOLING SYSTEM

Products

PositionProduct
15303017691 Frigidaire Refrigerator Spacer-Tube
1WCI 218174000
2BRACKET, MOUNTIN, CONDENSER, (4)
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 215422600
6WCI 5303299397
7WCI 5303294039
8CONNECTOR PLUG, RH (NI)
8WCI 5303294036
8BRACKET, GROUNDING (NI)
8WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
8NUT, 8-32 HEX, (2) (NI)
13WCI 215133500
14WCI 5303210355
15EVAPORATOR
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17INSULATOR-EVAP, PLASTIC
18INSULATION BLOCK, RH
19INSULATION PLUG, RH
20INSULATION BLOCK, LH
215303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22WCI 3206126
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
24WASHER-COMPR MTG
25CLIP – COMPRESSOR MTG
26PAN-DEFROST DRAIN, ORIG/SVCE COMPR
265303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
27Nut,lock `1/4-20 ,drain pan mtg
28PAN RETAINER KIT, SERVICE
29WCI 5303916804
30WCI 5303211376
31WCI 5303270973
325303006412 Frigidaire Refrigerator Cover Mounting Strap
415308000039 Frigidaire Refrigerator Screw
43WCI 5303207327
435303001199 Frigidaire Refrigerator Wiring Harness Clamp
445308000133 Frigidaire Refrigerator Clamp
455304455852 Frigidaire Refrigerator Screw
45AHOT TUBE REPAIR KIT, SERVICE (NI)
45WCI 5303207199
455304455651 Frigidaire Refrigerator Screw
