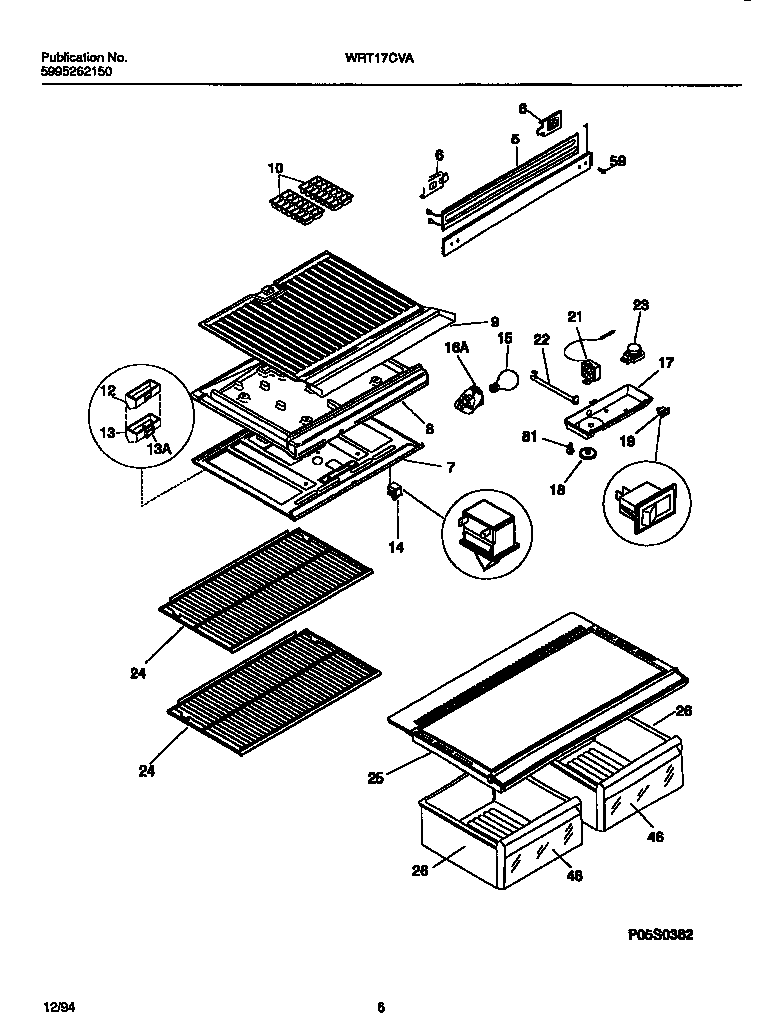

WRT17CVAZ2 04 – SHELVES, DIVIDERS

WRT17CVAZ2 04 – SHELVES, DIVIDERS

Written by

in

WRT17CVAZ2 04 – SHELVES, DIVIDERS

Products

PositionProduct
1WCI 218430701
5WCI 218271601
6WCI 218279800
7WCI 3206185
7WCI 5303001380
83205266 Frigidaire Refrigerator Edge Protector
8WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
8WCI 215422600
8WCI 3206186
9WCI 3206187
10215667501 Frigidaire Refrigerator Ice Tray Primary
125303001449 Frigidaire Refrigerator Seal
12DEFLECTRO, AIR, W/SEAL
13AEXTENSION, AIR DEFLECTOR, WITH INSULATION
13WCI 5303001448
145309918806 Frigidaire Refrigerator Light Switch Door
15218814402 Frigidaire Refrigerator Bulb-Lamp
16AWCI 215752200
17NUT, ANCHOR (NI)
17WCI 5303299980
18WCI 5303299979
19SWITCH-ENERGY SAVER, ROCKER
21WCI 5303001260
21WCI 5303018894
22WCI 3018891
235304455649 Frigidaire Refrigerator Screw
23WCI 215945900
24SHELF, SLIDING, WIRE, REFR SECTION
25WCI 215379500
26PAN – CRISPER
46WCI 5303208183
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
815304455650 Frigidaire Refrigerator Screw
