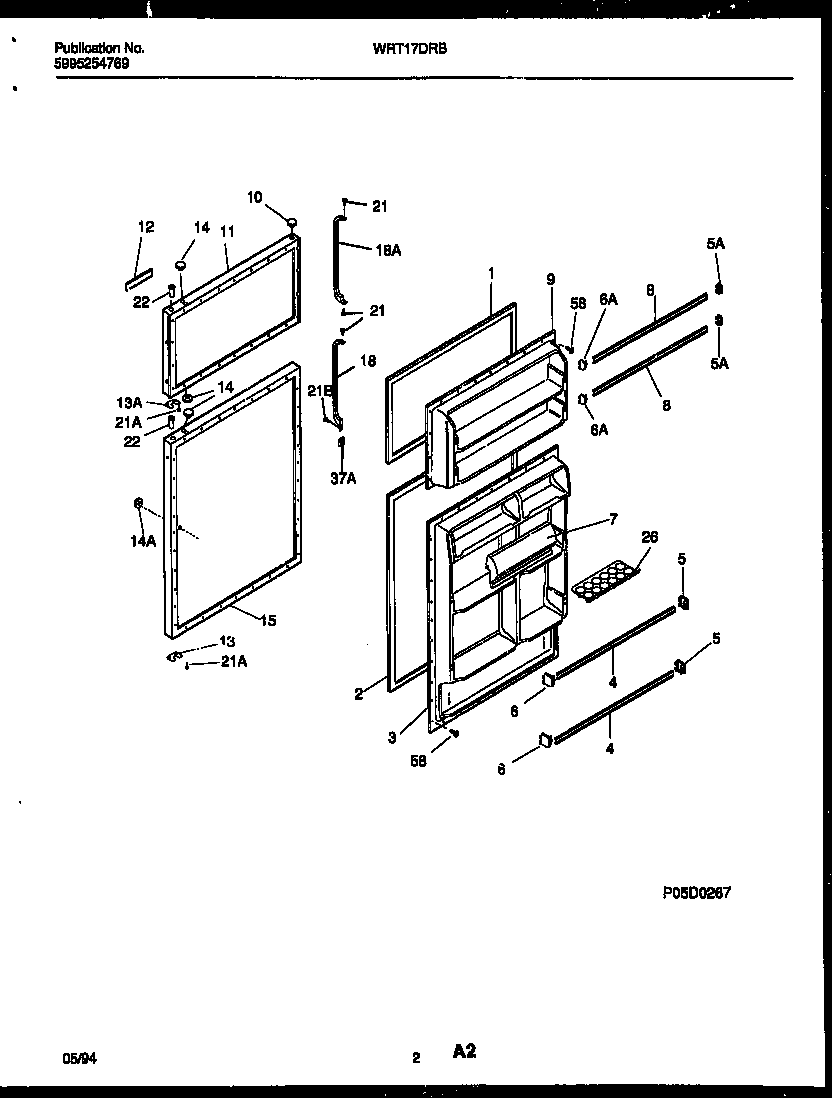

WRT17DRBD1 02 – DOOR PARTSadmin2025-04-26T08:45:18+00:00WRT17DRBD1 02 – DOOR PARTS
Products
| Position | Product |
|---|
| 1 | WCI 215608901 |
| 2 | 218730603 Frigidaire Door Gasket |
| 3 | WCI 215026201 |
| 4 | 215366002 Frigidaire Refrigerator Door Wide Rack |
| 5 | SUPPORT-DOOR RACK, EXTENDS 1.06``, RH |
| 5A | SUPPORT-DOOR RACK, EXTENDS .56``, RH |
| 6 | SUPPORT-DOOR RACK, EXTENDS 1.06``, LH |
| 6A | SUPPORT-DOOR RACK, EXTENDS .56``, LH |
| 7 | WCI 5303304570 |
| 8 | WCI 215806315 |
| 9 | WCI 5303290026 |
| 10 | PLUG-BUTTON, ALMOND, HINGE BRG HOLE |
| 11 | WCI 5303917393 |
| 12 | WCI 215366311 |
| 12A | WCI 215220310 |
| 12C | TAPE, ADHESIVE, 12`` LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED) |
| 13A | WCI 5308000255 |
| 13 | DOOR STOP, REFR SECTION |
| 14 | PLUG-BUTTON, ALMOND, HANDLE/DR STOP |
| 14A | WCI 215352211 |
| 15 | WCI 5303917410 |
| 18 | WCI 215915507 |
| 18A | WCI 215915505 |
| 21A | WCI 5308011745 |
| 21 | SCREW-HANDLE MTG, CR OVAL HEAD, 10-24(D) X 5/8, ALMOND, |
| 21B | 154518001 Frigidaire Refrigerator Screw |
| 22 | BEARING-HINGE |
| 26 | 215817806 Frigidaire Refrigerator Egg Tray |
| 37A | WCI 215480204 |
| 37A | WCI 215480205 |
