WRT17DRBD2 02 – DOOR

WRT17DRBD2 02 – DOOR

Written by

in

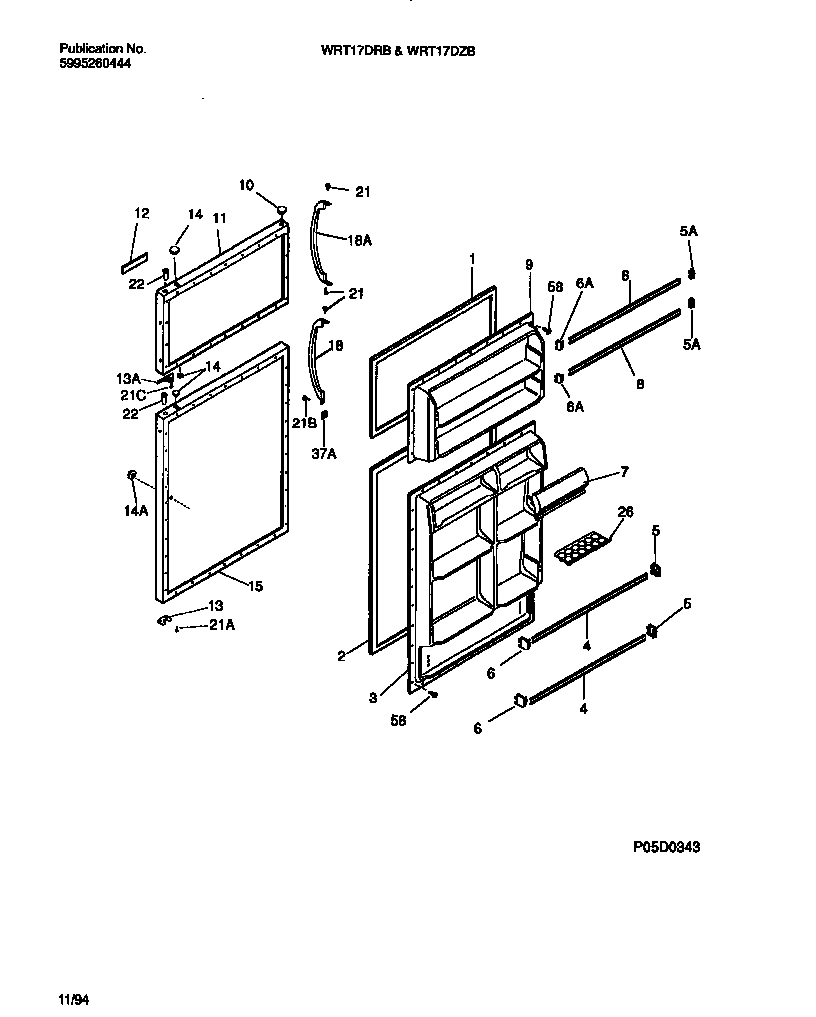

WRT17DRBD2 02 – DOOR

Products

PositionProduct
*30280INSULATION
1WCI 215608901
2218730603 Frigidaire Door Gasket
3WCI 215026201
4215366002 Frigidaire Refrigerator Door Wide Rack
5ASUPPORT-DOOR RACK, EXTENDS .56“, RH
5SUPPORT-DOOR RACK, EXTENDS 1.06“, RH
6SUPPORT-DOOR RACK, EXTENDS 1.06“, LH
6ASUPPORT-DOOR RACK, EXTENDS .56“, LH
7WCI 5303304570
8WCI 215806315
9WCI 5303290026
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11WCI 5303917393
12BWCI 215220310
12ATAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
12WCI 215366311
13DOOR STOP, REFR SECTION
13AWCI 218249002
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
14AWCI 215352211
15WCI 5303917410
18AWCI 215915541
18WCI 215915543
21C218252201 Frigidaire Refrigerator Screw
21B154518001 Frigidaire Refrigerator Screw
21AWCI 5308011745
21SCREW-HANDLE MTG, CR OVAL HEAD, 10-24(D) X 5/8, ALMOND,
22BEARING-HINGE
26215817806 Frigidaire Refrigerator Egg Tray
37AWCI 215480204
585304455651 Frigidaire Refrigerator Screw
