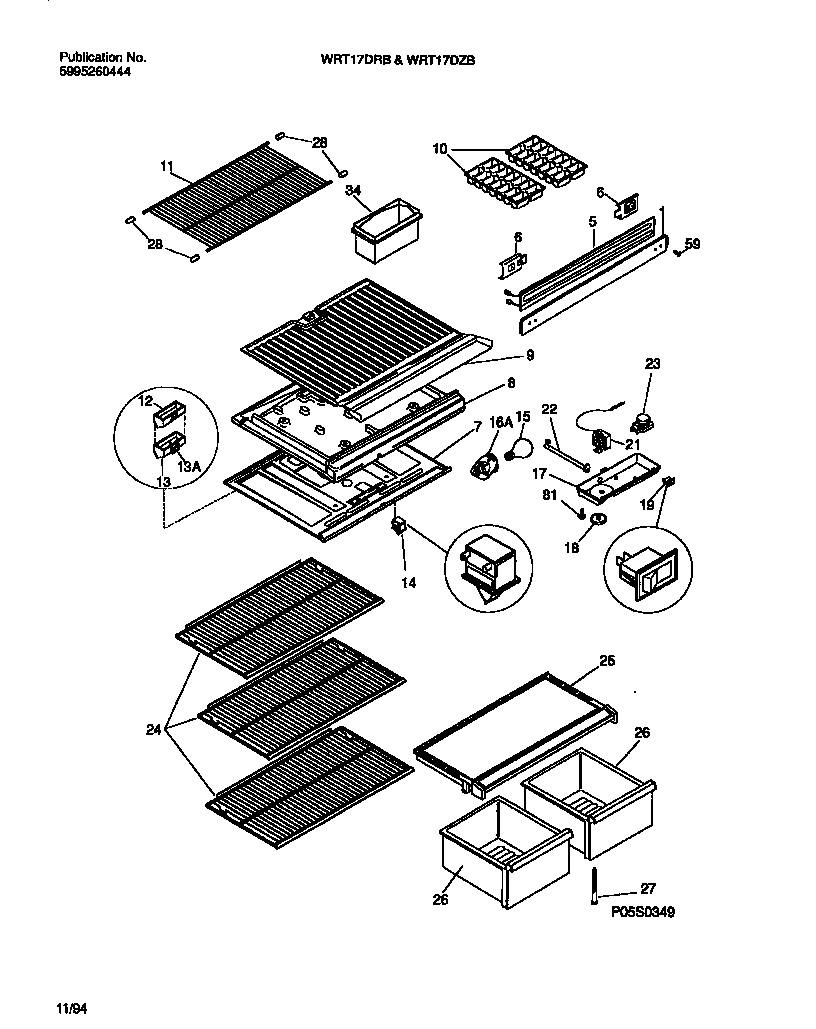

WRT17DRBW2 04 – SHELVES, CONTROLS, DIVIDER, MULLION

WRT17DRBW2 04 – SHELVES, CONTROLS, DIVIDER, MULLION

Written by

in

WRT17DRBW2 04 – SHELVES, CONTROLS, DIVIDER, MULLION

Products

PositionProduct
1WCI 218252501
5WCI 218271401
6WCI 218279800
7AWCI 5303001380
7TOP PANEL-REFR
8AWCI 3018900
8WCI 5303018899
8B3205266 Frigidaire Refrigerator Edge Protector
9WCI 5303001537
10215667501 Frigidaire Refrigerator Ice Tray Primary
11SHELF-FREEZER, FIXED/FLAT, FULL WIDTH, WIRE
11ASPACER, FRZR SHELF (NOT ILLUSTRATED)
12A5303001449 Frigidaire Refrigerator Seal
12DEFLECTRO, AIR, W/SEAL
13AEXTENSION, AIR DEFLECTOR, WITH INSULATION
13WCI 5303001448
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17WCI 5303299980
17ANUT, ANCHOR (NI)
18WCI 5303299979
19SWITCH-ENERGY SAVER, ROCKER
21WCI 5303018894
21AWCI 5303001260
22WCI 3018891
23A5304455649 Frigidaire Refrigerator Screw
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24SHELF-SLIDING, WIRE, REFR SECTION
24AWCI 5303283297
25WCI 5349001603
26PAN-CRISPER
27SUPPORT-CRISPER CVR, ADJUSTABLE
28END CAP-SHELF,PROTECTOR
34WCI 3018945
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
815304455650 Frigidaire Refrigerator Screw
