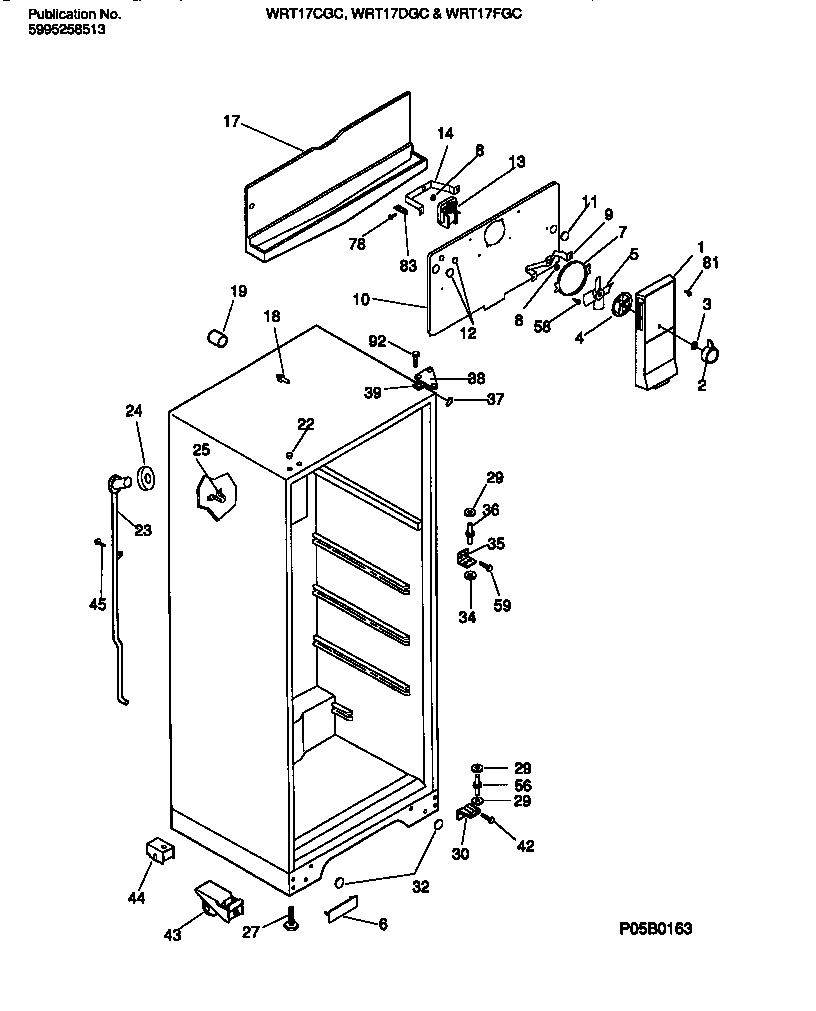

WRT17FGCD0 03 – CABINET W/ FAN ASSEMBLY

Products

PositionProduct
*859635303321319 Frigidaire Refrigerator White Touch Up Paint
*85962TOUCH, UP PAINT, ALMOND (NI)
1WCI 5303300050
2WCI 5308000081
3Nut,push-on
4WCI 3206110
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
6WCI 215846500
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
10WCI 3206119
115303208309 Frigidaire Refrigerator Plug Hole
135300158289 Frigidaire Evaporator Fan Motor
14BRACKET-MOTOR MTG, REAR
17WCI 3206146
18SUPPORT – EVAP COVER, (2)
19TUBE-RUBBER
22A5304500008 Frigidaire Oven Screw
22WCI 215774911
23WCI 5303269702
24WCI 5303207353
25WCI 215774100
29WASHER, .34 X .62 X .05, NYLON
30WCI 3206136
30ATAPPING PLATE, LOWER HINGE, (2) (NI)
32WCI 215217702
34WCI 5308000186
35BRACKET-CTR HINGE
36WCI 5308000184
37TRIM-CABINET CORNER, ALMOND
38WCI 3206100
39SHIM – UPPER HINGE
42241710601 Frigidaire Refrigerator Screw
43BBOLT-ROLLER ADJ, (2) (NON-ILLUSTRATED)
43AWCI 5308009760
43WCI 5300188673
43CWCI 5308009790
43DWCI 5308011326
44ROLLER ASSY, METAL HOUSING, REAR, (2)
455304455651 Frigidaire Refrigerator Screw
565303001321 Frigidaire Refrigerator Lower Hinge Pin
59WCI 5308012258
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
