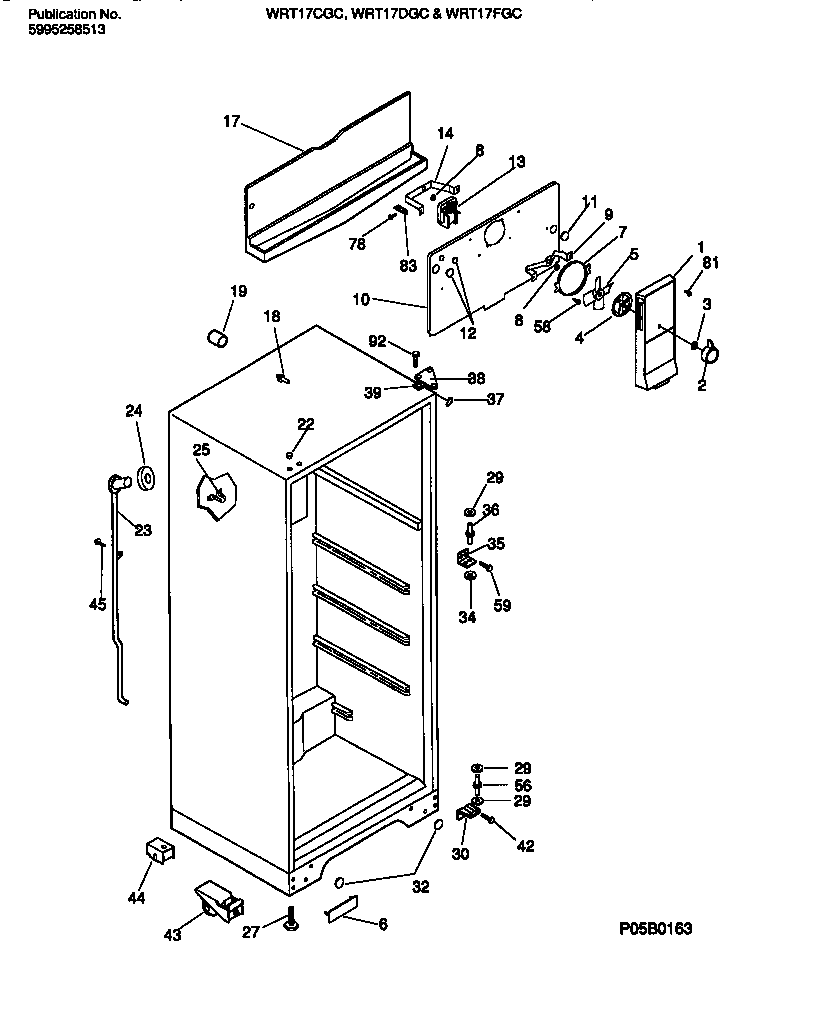

WRT17FGCZ0 03 – CABINET W/ FAN ASSEMBLY

Products

PositionProduct
*85962TOUCH, UP PAINT, ALMOND (NI)
*859635303321319 Frigidaire Refrigerator White Touch Up Paint
1WCI 5303300050
2WCI 5308000081
3Nut,push-on
4WCI 3206110
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
6WCI 215846500
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
10WCI 3206119
115303208309 Frigidaire Refrigerator Plug Hole
135300158289 Frigidaire Evaporator Fan Motor
14BRACKET-MOTOR MTG, REAR
17WCI 3206146
18SUPPORT – EVAP COVER, (2)
19TUBE-RUBBER
22A5304500008 Frigidaire Oven Screw
22WCI 2157744901
23WCI 5303269702
24WCI 5303207353
25WCI 215774100
29WASHER, .34 X .62 X .05, NYLON
30WCI 3206136
30ATAPPING PLATE, LOWER HINGE, (2) (NI)
32WCI 215217702
34WCI 5308000186
35BRACKET-CTR HINGE
36WCI 5308000184
37TRIM-CABINET CORNER, WHITE
38WCI 3206100
39SHIM – UPPER HINGE
42241710601 Frigidaire Refrigerator Screw
43CWCI 5308009790
43DWCI 5308011326
43WCI 5300188673
43AWCI 5308009760
43BBOLT-ROLLER ADJ, (2) (NON-ILLUSTRATED)
44ROLLER ASSY, METAL HOUSING, REAR, (2)
455304455651 Frigidaire Refrigerator Screw
565303001321 Frigidaire Refrigerator Lower Hinge Pin
59WCI 5308012258
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
