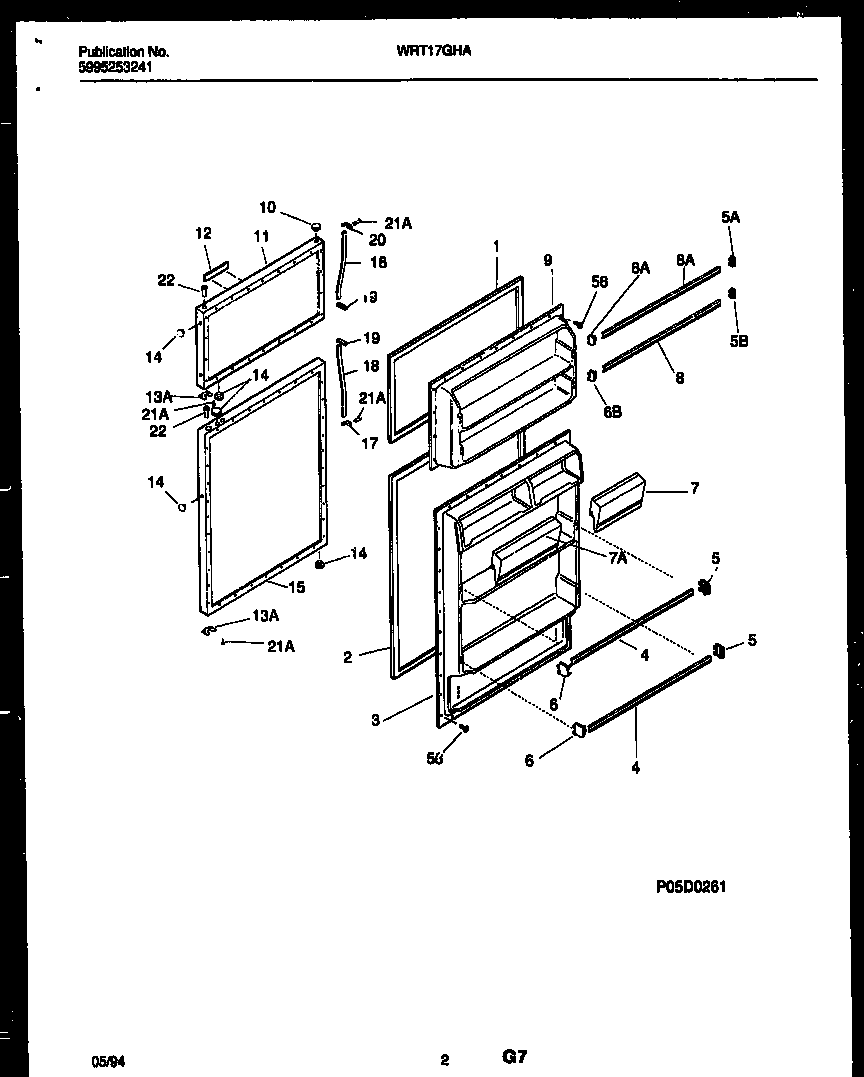

WRT17GHAD0 02 – DOOR PARTS

Products

Position	Product
*96093	INSULATION
1	WCI 215608901
2	218730603 Frigidaire Door Gasket
3	WCI 215645301
5B	SUPPORT-DOOR RACK, EXTENDS 1.06“, RH
5A	3206165 Frigidaire Bar Endcap Right Hand
5	WCI 3206150
6B	SUPPORT-DOOR RACK, EXTENDS 1.06“, LH
6	WCI 3206151
6A	3206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support
7	DOOR-DAIRY
7A	WCI 5303300074
8A	WCI 5303300071
8	215366002 Frigidaire Refrigerator Door Wide Rack
9	WCI 5303276517
10	PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11	WCI 5303917157
12	WCI 215490711
13A	WCI 5308000255
14	PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15	WCI 5303917155
17	HANDLE END
18	HANDLE-DOOR
18A	INSERT-HANDLE GRIP, ALMOND (NON-ILLUSTRATED)
19	WCI 215365000
20	HANDLE END
21A	WCI 5308011745
22	BEARING-HINGE
58	5304455651 Frigidaire Refrigerator Screw
