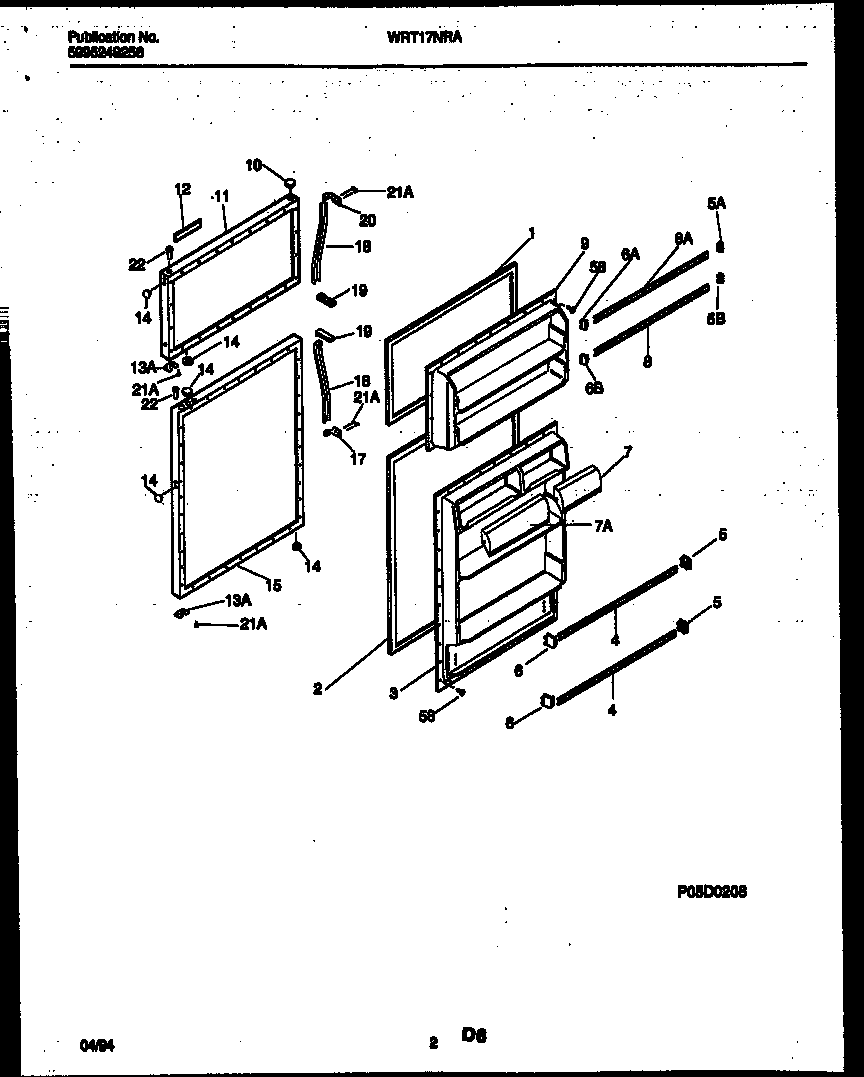

WRT17NRAD0 02 – DOOR PARTS

WRT17NRAD0 02 – DOOR PARTS

Written by

in

WRT17NRAD0 02 – DOOR PARTS

Products

PositionProduct
*94143INSULATION
1WCI 215608901
2218730603 Frigidaire Door Gasket
3WCI 215645301
5BSUPPORT-DOOR RACK, EXTENDS 1.06“, RH
5A3206165 Frigidaire Bar Endcap Right Hand
5WCI 3206150
6BSUPPORT-DOOR RACK, EXTENDS 1.06“, LH
6WCI 3206151
6A3206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support
7AWCI 5303001380
7DOOR-DAIRY
7AWCI 5303300074
8215366002 Frigidaire Refrigerator Door Wide Rack
8AWCI 5303300071
9WCI 5303276517
10WCI 3206119
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11WCI 5303917157
12WCI 215490711
12ATAPE, ADHESIVE, 60“ LG, FOAM, TRIM/NAMEPLATE, DOUBLE FAC
13AWCI 5308000255
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15WCI 5303917155
17HANDLE END
18AWCI 215954305
18AINSERT-HANDLE GRIP, ALMOND (NON-ILLUSTRATED)
18HANDLE-DOOR
19WCI 215365000
20HANDLE END
21AWCI 5308011745
22BEARING-HINGE
585304455651 Frigidaire Refrigerator Screw
