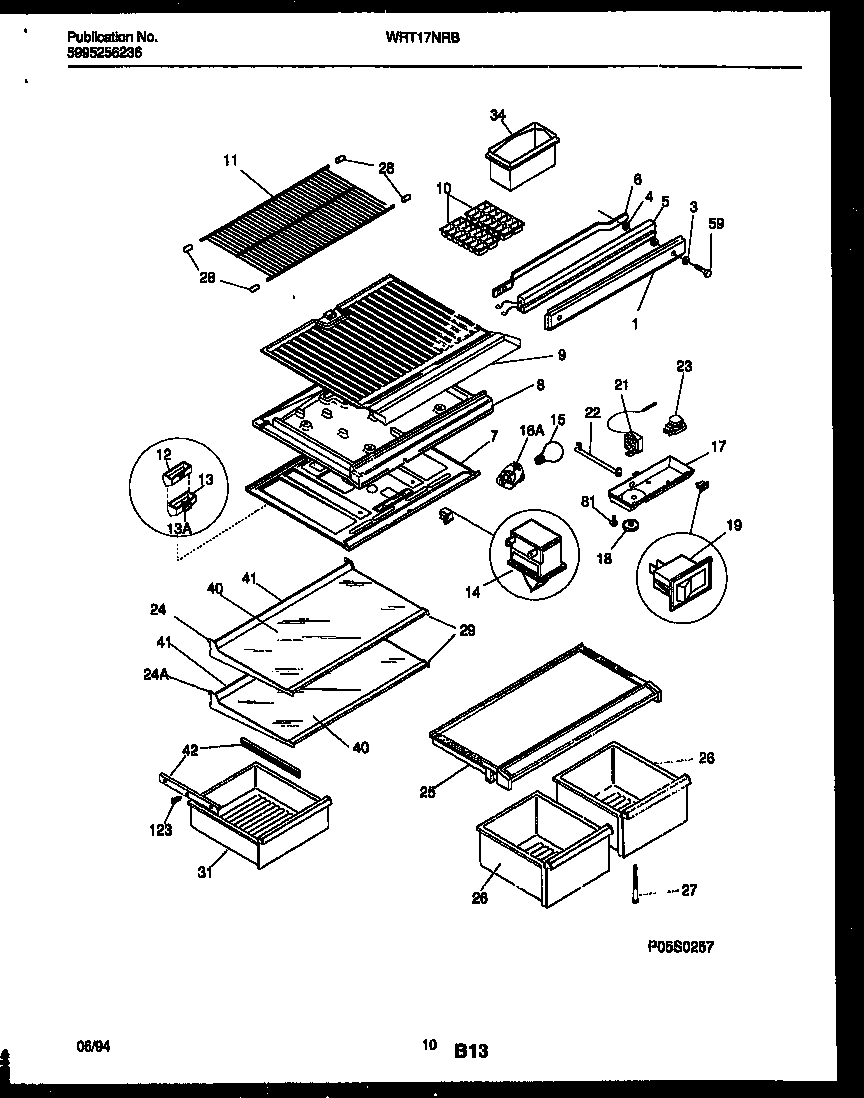

WRT17NRBD0 06 – SHELVES AND SUPPORTS

WRT17NRBD0 06 – SHELVES AND SUPPORTS

Written by

in

WRT17NRBD0 06 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 5303916134
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4WCI 218188100
5WCI 5308017408
6WCI 215170801
7AWCI 5303001380
7TOP PANEL-REFR
8AWCI 3018900
8B3205266 Frigidaire Refrigerator Edge Protector
8WCI 5303018899
9WCI 5303001537
10215667501 Frigidaire Refrigerator Ice Tray Primary
11SHELF-FREEZER, FIXED/FLAT, FULL WIDTH, WIRE
12A5303001449 Frigidaire Refrigerator Seal
12DEFLECTRO, AIR, W/SEAL
13AEXTENSION, AIR DEFLECTOR, WITH INSULATION
13WCI 5303001448
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17WCI 5303299980
17ANUT, ANCHOR (NI)
18WCI 5303299979
19SWITCH-ENERGY SAVER, ROCKER
21AWCI 5303001260
21WCI 5303018894
22WCI 3018891
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
23A5304455649 Frigidaire Refrigerator Screw
24AWCI 215919103
24WCI 215919125
25WCI 5349001603
26PAN-CRISPER
27SUPPORT-CRISPER CVR, ADJUSTABLE
28END CAP-SHELF,PROTECTOR
29WCI 215919701
31WCI 5303304710
34WCI 3018945
40GLASS-SHELF, 23.26“ X 15.57“
41TRIM-SHELF, 23.30“, REAR
42HANGER-PAN/BASKET, LH
42HANGER-PAN/BASKET, RH
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
