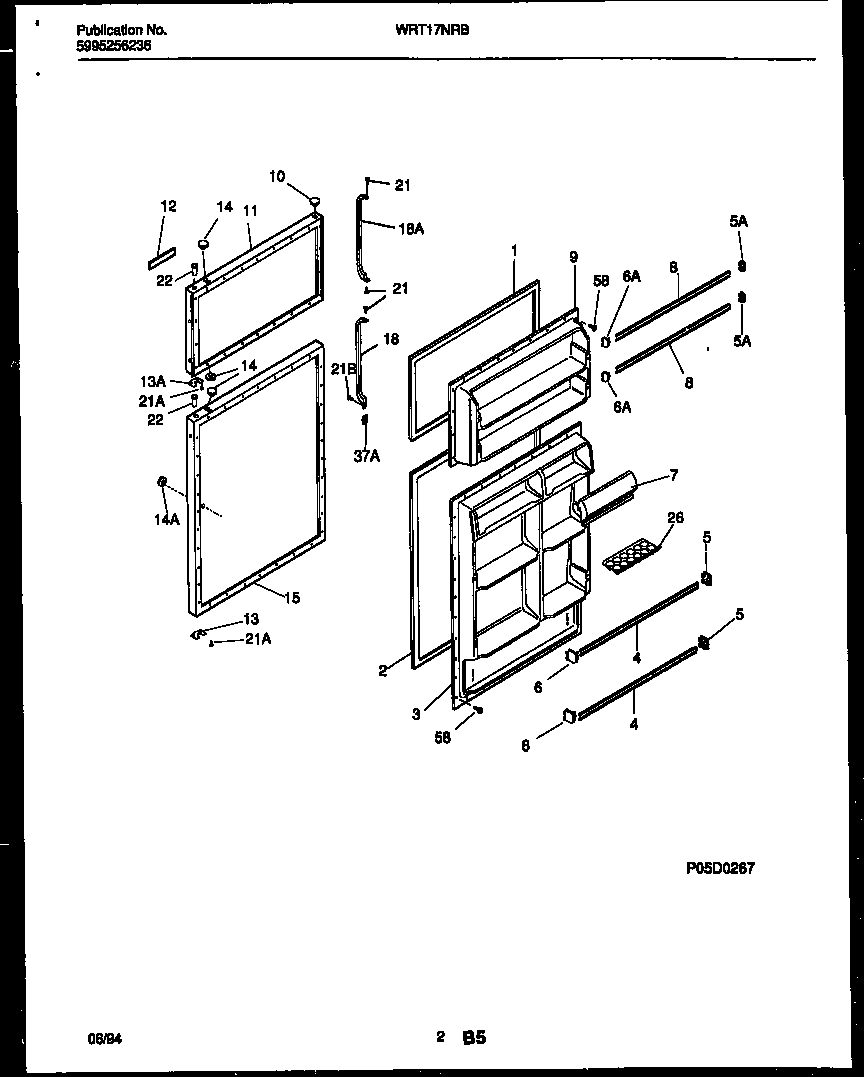

WRT17NRBW1 02 – DOOR PARTS

WRT17NRBW1 02 – DOOR PARTS

Written by

in

WRT17NRBW1 02 – DOOR PARTS

Products

PositionProduct
1GASKET-FRZR DOOR, MAGNETIC, WHITE
2218730603 Frigidaire Door Gasket
3WCI 215026201
4215366002 Frigidaire Refrigerator Door Wide Rack
5ASUPPORT-DOOR RACK, EXTENDS .56“, RH
5SUPPORT-DOOR RACK, EXTENDS 1.06“, RH
6ASUPPORT-DOOR RACK, EXTENDS .56“, LH
6SUPPORT-DOOR RACK, EXTENDS 1.06“, LH
7WCI 5303304570
8WCI 215806315
9WCI 5303290026
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11WCI 5303917392
12FRAME – NAMEPLATE,WHITE
12BLABEL-NAMEPLATE, GREY/WHITE ITRS (NON-ILLUSTRATED)
12CTAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
13AWCI 5308000255
13DOOR STOP, REFR SECTION
14A240494001 Frigidaire Refrigerator Plug Button
15WCI 5303917409
18WCI 215915503
18AWCI 215915501
21B154518001 Frigidaire Refrigerator Screw
21SCREW-HANDLE MTG, CR OVAL HEAD, 10-24(D) X 5/8, WHITE,
21AWCI 5308011745
22BEARING-HINGE
26215817806 Frigidaire Refrigerator Egg Tray
37AWCI 215480205
