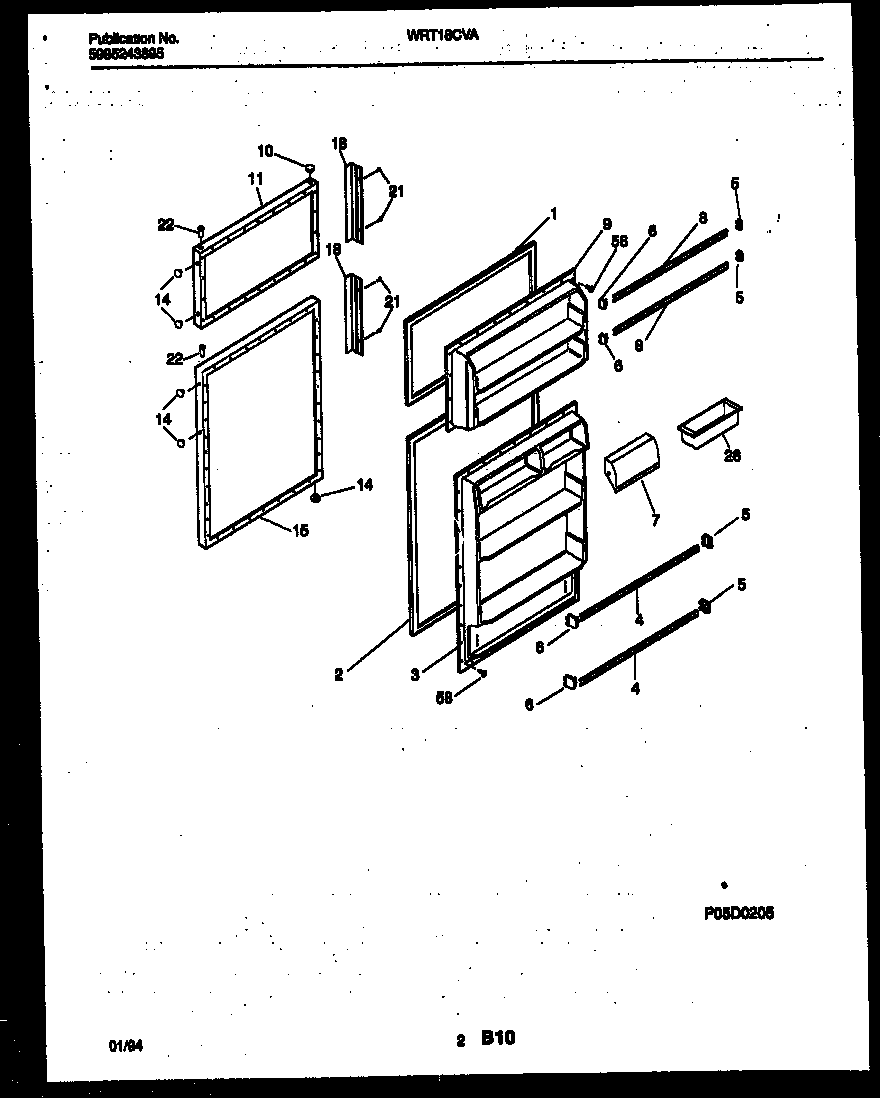

WRT18CVAD0 02 – DOOR PARTS

WRT18CVAD0 02 – DOOR PARTS

Written by

in

WRT18CVAD0 02 – DOOR PARTS

Products

PositionProduct
*85347INSULATION
1GASKET-FRZR DOOR, MAGNETIC, BROWN
25303207345 Frigidaire Refrigerator Door Gasket
3WCI 5303207346
4RACK, DOOR
5SUPPORT – DOOR RACK, RH
6SUPPORT – DOOR RACK, LH
7WCI 5303290741
8RACK, DOOR
9WCI 5303207343
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11WCI 5303917168
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15WCI 5303917170
18WCI 215164904
21SCREW-HANDLE MTG, 8 CR TRUSS HD, 10(D) X 1/2
22BEARING-HINGE
26WCI 3204522
585304455651 Frigidaire Refrigerator Screw
