WRT18CVAD0 04 – SHELVES AND SUPPORTS

WRT18CVAD0 04 – SHELVES AND SUPPORTS

Written by

in

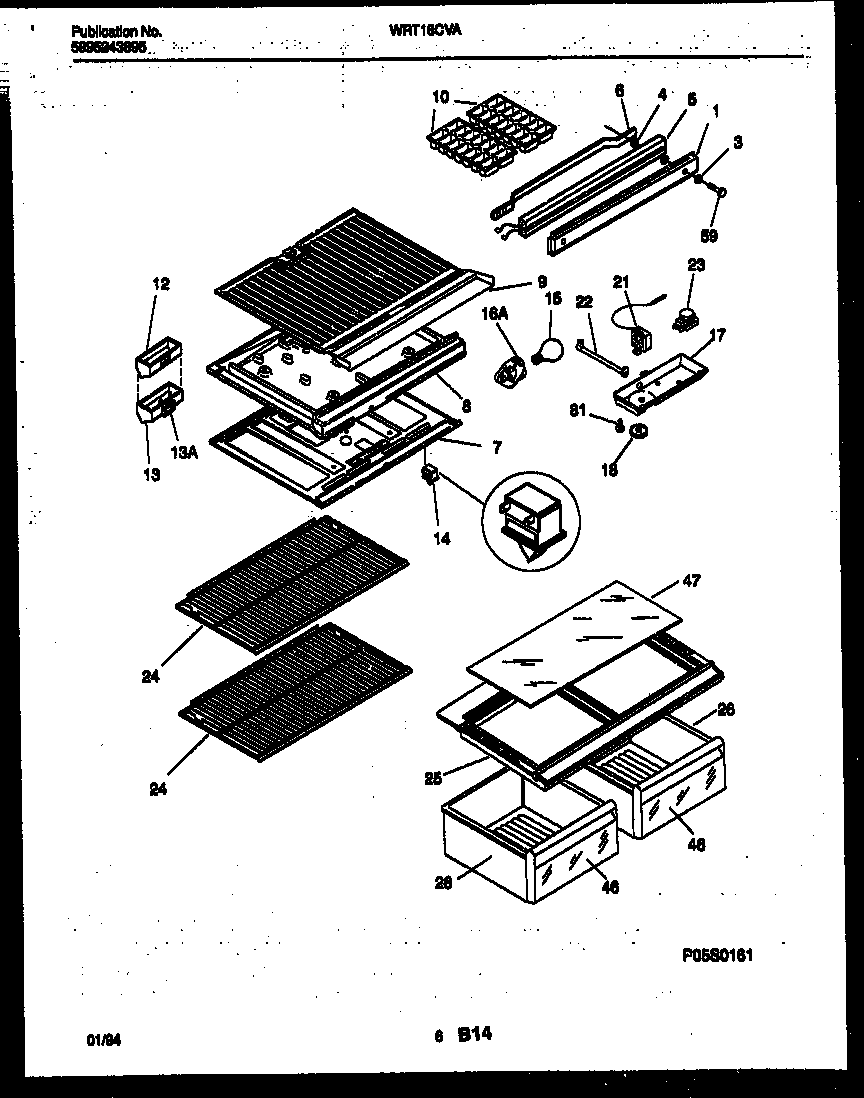

WRT18CVAD0 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 3206450
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4SPACER-MULLION MTG, STEEL
5WCI 5303275177
6WCI 215170802
7AWCI 5303001380
7WCI 3206454
8WCI 3206456
8AHARNESS-WIRING, CONTROL/DIVIDER (NON-ILLUSTRATED)
8B3205266 Frigidaire Refrigerator Edge Protector
9BOTTOM PANEL-FRZR
10215667501 Frigidaire Refrigerator Ice Tray Primary
12A5303001449 Frigidaire Refrigerator Seal
12DEFLECTRO, AIR, W/SEAL
13WCI 5303001448
13AEXTENSION, AIR DEFLECTOR, WITH INSULATION
145309918806 Frigidaire Refrigerator Light Switch Door
15LIGHT BULB/LAMP, INCAND, OVEN, 250 V
16A218906802 Frigidaire Light Lamp Socket
17WCI 3206320
17ANUT, ANCHOR (NI)
18WCI 5303209251
21WCI 5303018894
21AWCI 5303001260
22WCI 3018891
23WCI 5303007517
23A5304455649 Frigidaire Refrigerator Screw
24SHELF, SLIDING, FULL WIDTH, WIRE, REFR SECTION
25WCI 5303207340
263206438 Frigidaire Refrigerator Crisper Pan
46FRONT, CRISPER PAN
47INSERT-PAN COVER, GLASS
59WCI 5308012258
815304455650 Frigidaire Refrigerator Screw
